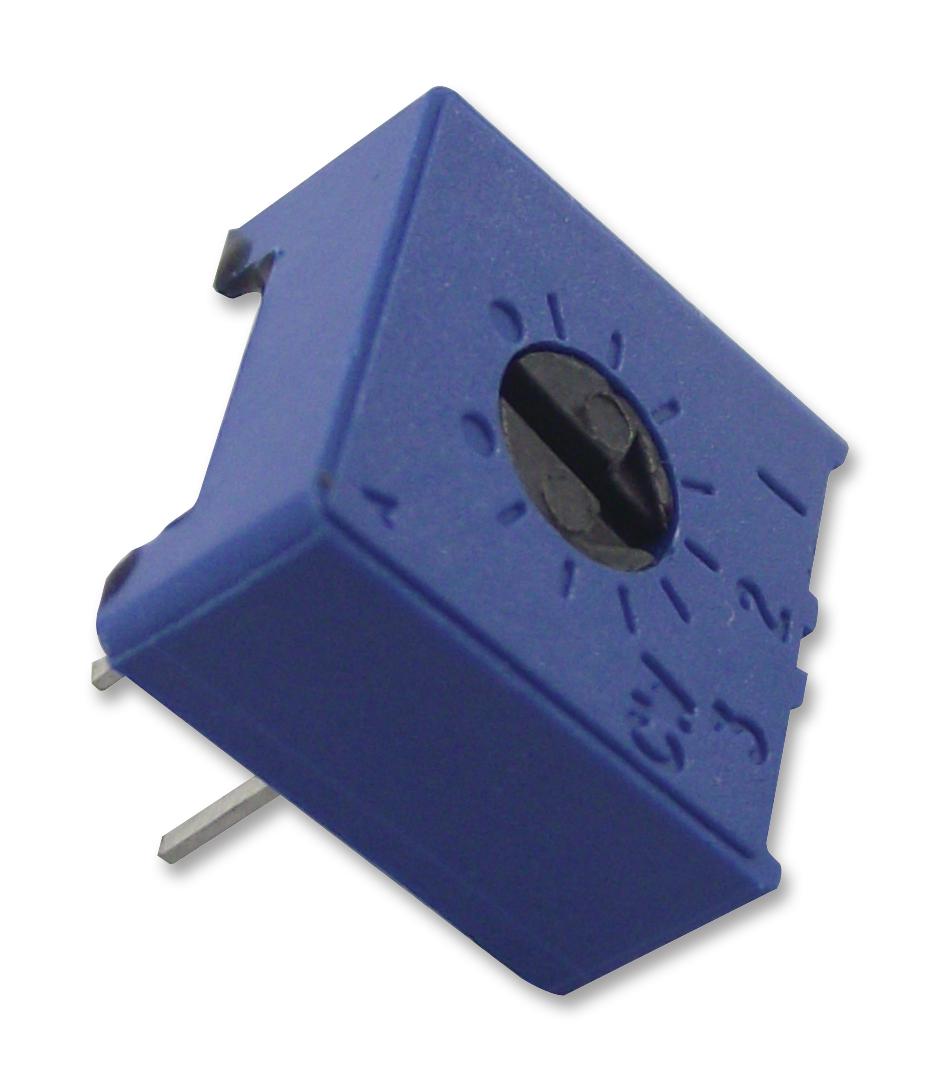

Vishay M63P201KB40 Single-turn Cermet Trimmer
The Vishay Spectrol 63 series single-turn cermet trimmer offers precise adjustments with arrow-guided graduations and an “O” ring seal for solvent and aqueous washing. It features a rigid mounting with pins, a multi-finger wiper for reliable contact, a solid end stop, and is tested according to CECC 41000 and IEC 60393-1 standards. Available in various pin configurations, it provides a resistance range of 100 Ω to 2 MΩ with a tolerance of ±10%. Its compact dimensions and high stability make it ideal for fine-tuning and calibration in electronic circuits, especially where durability and precision are priority.
Vishay M63P201KB40 Single-turn Cermet Trimmer Specifications:
- Resistance range: 100 Ω to 2 MΩ
- Resistance tolerance: ±10%
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Temperature coefficient of resistance: +100 ppm/°C
- Effective travel: 270° nominal
- Mechanical travel: 300° ±50
- Sealing: IP64
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ minimum
- Contact resistance variation: 1% or 1 Ω, whichever is greater
- Temperature range: -55°C to +125°C
- Climatic category: 56/125/21
- Weight: 0.85 g
- Environmental: tested for vibration, shock, damp heat, and mechanical endurance
- Terminals: Pure Sn (code 3)
Buy the VISHAY Series 63 Single-Turn Cermet Trimmer: M63P201KB40
Experience reliable and precise electronic calibration with the Vishay 63 series single-turn cermet trimmer. Featuring a sealed design for protection against solvents and moisture, it provides a resistance range of 100Ω to 2MΩ with ±10% tolerance. Its robust construction ensures stability over temperature variations from -55°C to +125°C. Ideal for fine-tuning and calibration tasks, this compact component offers excellent durability, high accuracy, and convenient mounting options. Buy online now to enhance your electronic projects with trusted Vishay quality.
Get Vishay 63 Series M63P201KB40 today—built for precise adjustments and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay M63P201KB40?
You can click on the BUY or RFQ button to purchase M63P201KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63P201KB40?
You can download the M63P201KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63P201KB40?
Vishay
