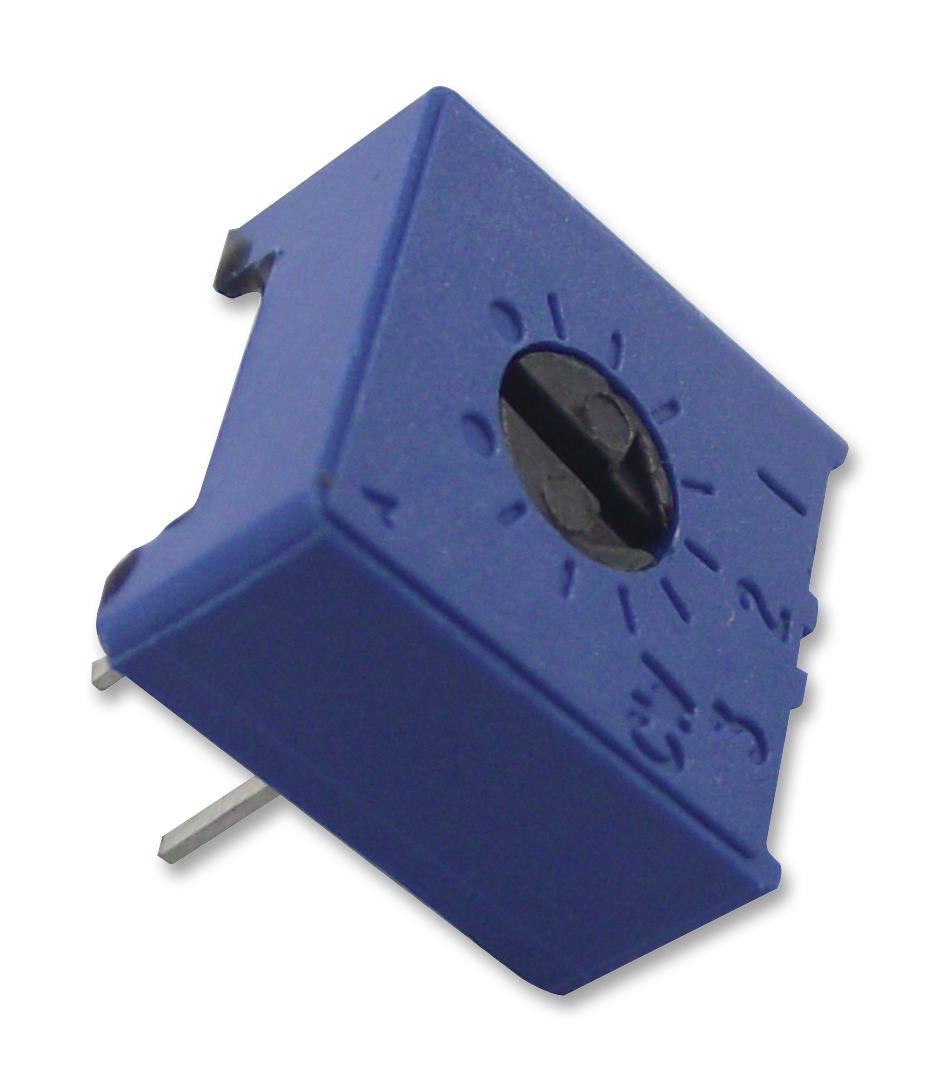

Vishay M63P203KB40 Precision Cermet Trimmer
The Vishay Spectrol 63P series is a high-precision, single-turn cermet trimmer suitable for adjusting and calibration applications in electrical and electronic circuits. It features an arrow with graduations for repeatable settings, an
Vishay M63P203KB40 Precision Cermet Trimmer Specifications:
- Resistance range: 100Ω to 2MΩ
- Resistance tolerance: ±10%
- Temperature coefficient: +100 ppm/°C (typical)
- Effective travel: 270° nominal
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: 1000 MΩ minimum
- Contact resistance variation: 1% or 1 Ω
- Environmental sealing: IP64
- Climatic category: 56/125/21
- Mechanical travel: 300° +50
- Starting torque: 35 mNm max
- Weight: 0.85 g approximately
- Terminals: Pure Sn (code 3)
Buy the VISHAY M63P203KB40 – Reliable Potentiometer for Industrial Applications
Purchase the VISHAY M63P203KB40 online today—engineered for precise adjustment and long-term reliability in industrial, instrumentation, and electronic calibration applications. This high-quality single-turn cermet trimmer features a durable construction, IP64 sealing, and various pin configurations for ease of installation and setup. With a resistance range of 100Ω to 2MΩ and a temperature coefficient of +100 ppm/°C, it ensures stable, accurate performance under demanding environments. Perfect for technicians and engineers seeking dependable calibration components.
Get VISHAY M63P203KB40 today—precision-adjustable cermet trimmer designed for long-lasting durability and industrial reliability.
Frequently Asked Questions
Where can I buy Vishay M63P203KB40?
You can click on the BUY or RFQ button to purchase M63P203KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63P203KB40?
You can download the M63P203KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63P203KB40?
Vishay
