Vishay 14910F0GJSX10102KA Conductive Cermet Potentiometer
The 149 series Vishay Spectrol potentiometer features conductive plastic and cermet elements, providing high rotational life of 50,000 cycles and RoHS compliance. It offers linear resistance ranges from 100 ohms to 2 megaohms, and non-linear from 250 ohms to 1 megaohm, with 10% linearity tolerance. Designed for precision applications, it supports 300° travel, with a compact 1/2 inch (12.7 mm) bushing, and features low temperature coefficient, high dielectric strength, and robust construction. Suitable for electronic control systems requiring reliable and durable potentiometers.
Vishay 14910F0GJSX10102KA Conductive Cermet Potentiometer Specifications:
- Resistance Range: 1kΩ to 1MΩ (linear), 500Ω to 500kΩ (non-linear)
- Linearity: ±10%
- End Resistance: Max 40Ω (linear), max 70Ω (non-linear)
- Power Rating: 0.5W at 70°C, 1W at 70°C
- Effective Rotation: 270° + 10° without rotary switch, 240° + 10° with rotary switch
- Mechanical Travel: 300° ±5°
- Operating Temperature: -40°C to +125°C
- Sealing: IP64
- Bushing Diameter: 1/2 inch (12.7mm)
- Operating Voltage: Max 350 Vac
- Rotational Life: 50,000 cycles
- Contact Resistance Variation: 1.5% of total resistance
- Mounting: Single, dual, or triple section with solder lug terminals

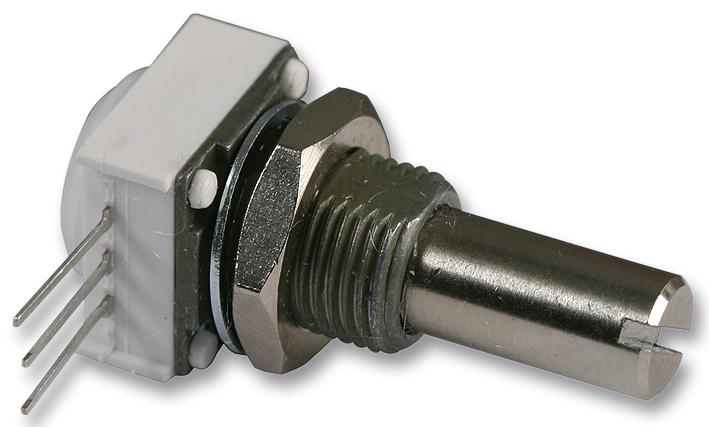

Buy the Buy Vishay Spectrol Potentiometer Part Number 14910F0GJSX10102KA Online
Order the Vishay Spectrol conductive plastic and cermet potentiometer 14910F0GJSX10102KA online today. Designed for high durability, it ensures accurate resistance control with a 300° travel span. Features include RoHS compliance, IP64 sealing, and a compact 1/2 inch bushing suitable for various electronic systems. Its extended rotational life of 50,000 cycles and wide temperature operating range make it ideal for industrial, automation, and control applications. Enjoy reliable performance, easy installation, and long-term stability from this high-quality potentiometer.
Get Vishay Spectrol potentiometer 14910F0GJSX10102KA today—built for precision and long-lasting durability in electronic control applications.
Frequently Asked Questions
Where can I buy Vishay 14910F0GJSX10102KA?
You can click on the BUY or RFQ button to purchase 14910F0GJSX10102KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910F0GJSX10102KA?
You can download the 14910F0GJSX10102KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910F0GJSX10102KA?
Vishay
