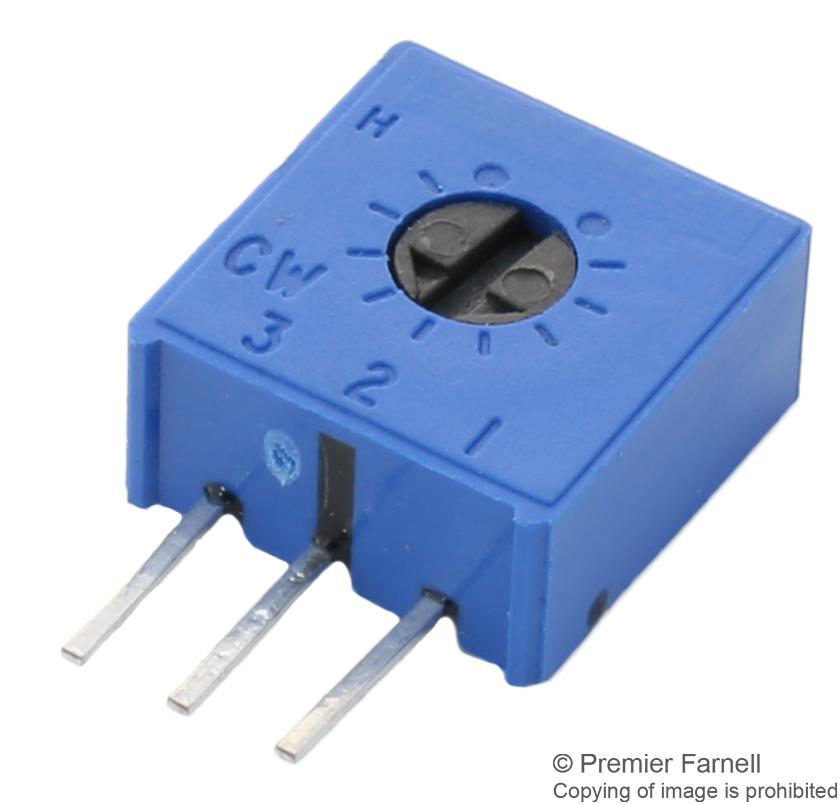

Vishay M63S102KB40 Single-turn cermet trimmer
The Vishay Spectrol Model 63 single-turn cermet trimmer is a compact 3/8 inch (10 mm) device designed for precise parameter adjustments in electronic circuits. It features a robust construction with a multi-finger wiper for reliable contact resistance, an ‘O’ ring seal for solvent and water resistance, and a solid end stop for consistent adjustments. Available in various pin configurations and knob styles, it offers a resistance range from 100Ω to 2 MΩ with a tolerance of ±10%. Suitable for applications requiring high durability, it complies with RoHS standards and tests for environmental and mechanical endurance, making it ideal for precise calibration tasks in industrial and consumer electronics.
Vishay M63S102KB40 Single-turn cermet trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100Ω to 2 MΩ
- Resistance tolerance: ±10%
- Temperature coefficient of resistance: +100 ppm/°C
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level, 250 Vac at 80,000 ft
- Insulation resistance: 1000 MΩ minimum
- Contact resistance variation: 1% or 1Ω
- Mechanical travel: 300° +50°
- Starting torque: 35 mNm max
- Weight: 0.85 g
- Sealing: IP64
- Environmental temperature range: -55°C to +125°C
- Terminal material: Pure Sn (code 3)
Buy the Buy Vishay Spectrol Single-Turn Cermet Trimmer Part Number M63S102KB40 Online
Experience the precision and durability of the Vishay Spectrol single-turn cermet trimmer. With a resistance range of 100Ω to 2 MΩ and tolerance of ±10%, it is ideal for precise parameter adjustments in industrial, automation, and consumer electronics. Its robust construction features IP64 sealing and high environmental resistance, ensuring long-term stability and reliable performance even in demanding conditions. Purchase online today to benefit from fast shipping and expert support for your calibration and tuning needs.
Buy Vishay M63S102KB40 now and experience unmatched reliability and performance in precision calibration applications.
Frequently Asked Questions
Where can I buy Vishay M63S102KB40?
You can click on the BUY or RFQ button to purchase M63S102KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63S102KB40?
You can download the M63S102KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63S102KB40?
Vishay
