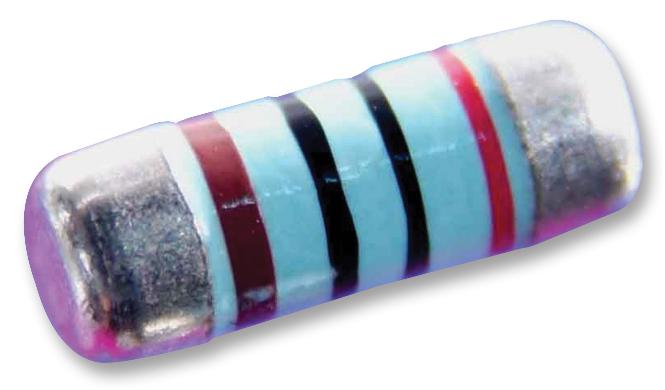

Vishay SMM02040C1212FB300 Thin Film MELF Resistor
SMM0204 is a high-reliability, thin film Mini-MELF resistor suitable for automotive, industrial, telecommunication, and medical applications. Manufactured with advanced metal film technology, it offers excellent stability, sulfur resistance, and precise tolerances from 0.22 Ω to 10 MΩ. These resistors feature a robust ceramic body, laser-cut protective grooves for accuracy, and silver plated nickel caps for durability. Qualified under EN 140401-803 and AEC-Q200, they perform reliably under temperature ranges from -85°C to 155°C, with tested endurance over 8000 hours, making them ideal for precision electronics demanding stability and longevity.
Vishay SMM02040C1212FB300 Thin Film MELF Resistor Specifications:
- Resistance range: 0.22 Ω to 10 MΩ
- Resistance tolerance: ±1%, ±2%, ±0.25%, ±0.1%
- Temperature coefficient: +15 ppm/K to +100 ppm/K
- Rated dissipation: 0.4 W
- Operating voltage: Max 200 V DC/AC
- Operating temperature: -85°C to 155°C
- Permissible film temperature: Max 155°C
- Resistance drift after 8000 hours: <0.05% to <0.25%
- Body size: DIN 0204, metric size code RC 3715M
- Dimensions: Length 3.6 ± 0.2 mm, Diameter 1.8 mm
- Material: Metal film on Al2O3 ceramic
- Termination: Nickel-plated steel caps with matte tin finish
- Compliance: EN 140401-803, AEC-Q200 qualified
- Max. resistance change at rated dissipation: <0.05% for 1kΩ, <0.15% for 10kΩ
- Certifications: RoHS, EN 140401-803, AEC-Q200
- Environmental stability: Cold, damp heat, thermal cycling
- Packaging: Blister tape, 1000 pcs per box
- Application: Automotive electronics, telecommunications, industrial control, medical devices
Buy the Vishay Series MELF Resistor High-Precision Part Number SMM02040C1212FB300
Enhance your electronic designs with Vishay SMM0204 high-reliability thin film MELF resistors available online. These resistors provide excellent thermal stability, sulfur resistance, and precise tolerances, making them ideal for automotive, medical, telecom, and industrial applications. Available in various resistance values from 0.22 Ω to 10 MΩ with tolerances down to ±0.1%, they undergo extensive testing for durability, stability, and environmental resilience. Order online now to ensure your projects benefit from Vishay’s proven reliability and advanced manufacturing standards.
Order your Vishay SMM0204 series high-precision MELF resistors today and ensure stable, long-lasting performance in your critical projects.
Frequently Asked Questions
Where can I buy Vishay SMM02040C1212FB300?
You can click on the BUY or RFQ button to purchase SMM02040C1212FB300 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SMM02040C1212FB300?
You can download the SMM02040C1212FB300 datasheet or visit the Vishay website for support.
Who is the manufacturer of SMM02040C1212FB300?
Vishay
