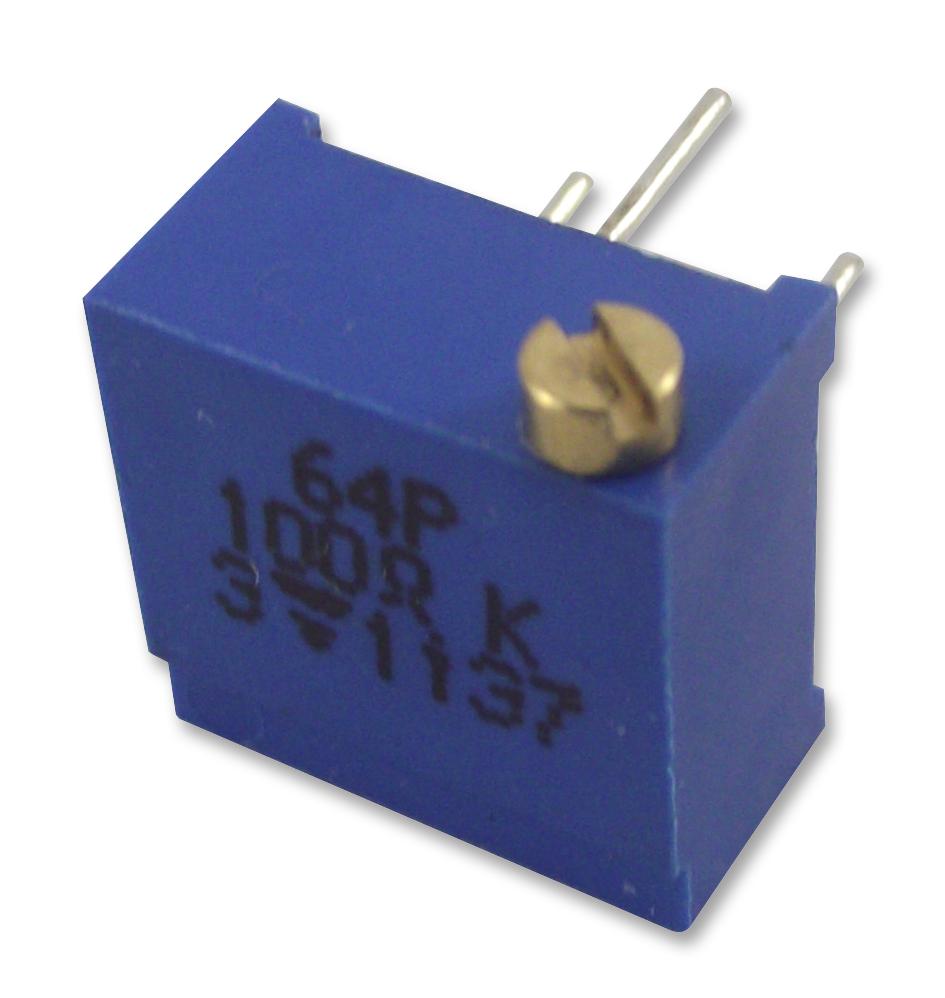

Vishay M64P104KB40 multi-turn trimmer
The 3/8 inch square multi-turn cermet trimmer offers high stability and reliability for precise resistance adjustment in electronic circuits. With an IP67 sealing rating, it withstands harsh environments, and its resistive element made of cermet ensures minimal contact resistance variation of less than 2%. Designed for PCB mounting, the trimmer features five different models with varying terminal configurations. Operating across a temperature range of -55°C to +125°C, it supports resistances from 10Ω to 2.2MΩ, making it ideal for industrial and electronic calibration applications.
Vishay M64P104KB40 multi-turn trimmer Specifications:
- Size: 3/8 inch x 3/8 inch x 3/16 inch
- Sealing: IP67
- Resistive element: Cermet
- Resistance Range: 10Ω to 2.2MΩ
- Power Rating: 0.5 W at 70°C, 1.0 W on request
- Temperature Range: -55°C to +125°C
- Mechanical Travel: 23° ±5°
- Electrical Travel: 21 turns
- Contact Resistance Variation: <2%
- Terminal Spacing: 2.54 mm
- Material: Pure Sn finish on terminals
- Insulation Resistance: >10 MΩ at 600 V
- Dielectric Strength: 1000 V RMS
- Operating Torque: Max 1.5 N·cm
Buy the Vishay Series 64 Multi-Turn Cermet Trimmer: M64P104KB40
Purchase the Vishay Series 64 multi-turn cermet trimmer online today. Designed for industrial applications, it features IP67 sealing, a resistive range up to 2.2MΩ, and operates reliably over a wide temperature range from -55°C to +125°C. Its compact size of 3/8 inch square makes it ideal for PCB mounting in space-constrained environments. With high stability, low contact resistance variation, and a robust construction, this trimmer ensures long-lasting performance and precise electrical calibration for your electronic and industrial systems.
Order your Vishay Series 64 Multi-Turn Cermet Trimmer today and ensure precise, reliable resistance adjustment for your electronic projects.
Frequently Asked Questions
Where can I buy Vishay M64P104KB40?
You can click on the BUY or RFQ button to purchase M64P104KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64P104KB40?
You can download the M64P104KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64P104KB40?
Vishay
