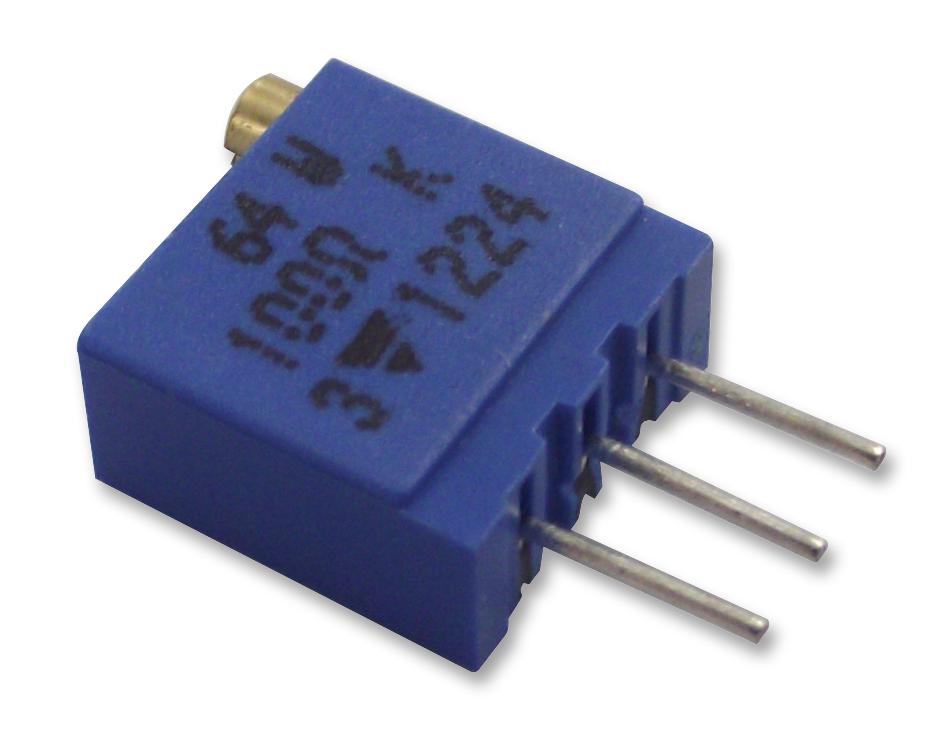

Vishay M64W101KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol 64 series is a compact 3/8-inch square multi-turn cermet trimmer designed for precise PCB mounting in industrial applications. Featuring excellent stability, this device offers resistance values from 10Ω to 2.2MΩ with a power rating of 0.5 W at +70°C. Fully sealed with IP67 protection, it withstands high temperatures from -55°C to +125°C and provides reliable electrical performance with a dielectric strength of 1000 V RMS. Its resistive element conforms to IEC standards, ensuring durability and accuracy in calibration and adjustment tasks.
Vishay M64W101KB40 Multi-Turn Cermet Trimmer Specifications:
- Physical Size: 3/8" x 3/8" x 3/16" (9.53 mm x 9.53 mm x 4.76 mm)
- Resistance Range: 10Ω to 2.2MΩ
- Power Rating: 0.5 W at +70°C
- Temperature Range: -55°C to +125°C
- Sealing: Fully sealed, IP67
- Electrical Resistance Tolerance: 5% (on request 10%)
- Dielectric Strength: 1000 V RMS
- Mechanical Travel: 23 turns ±5
- Operating Torque: Max 1.5 N·cm
- Terminal Material: Pure Sn
- Climatic Category: 55/125/56
Buy the Vishay 64 Series – Reliable Multi-Turn Cermet Trimmer for Industrial Applications
Purchase the Vishay 64 series multi-turn PCB mount cermet trimmer online today. This compact, fully sealed device offers resistance from 10Ω to 2.2MΩ, with a power rating of 0.5W at +70°C. Designed for industrial calibration and adjustment, it withstands temperatures from -55°C to +125°C and provides excellent stability and durability. Ideal for precise electronic tuning, its IP67 sealing ensures reliability in harsh environments. Order now and enhance your project’s accuracy and longevity with this proven component.
Order your Vishay Series 64 multi-turn PCB trimmer today and ensure precise calibration in demanding industrial environments with IP67 sealing and high temperature durability.
Frequently Asked Questions
Where can I buy Vishay M64W101KB40?
You can click on the BUY or RFQ button to purchase M64W101KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64W101KB40?
You can download the M64W101KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64W101KB40?
Vishay
