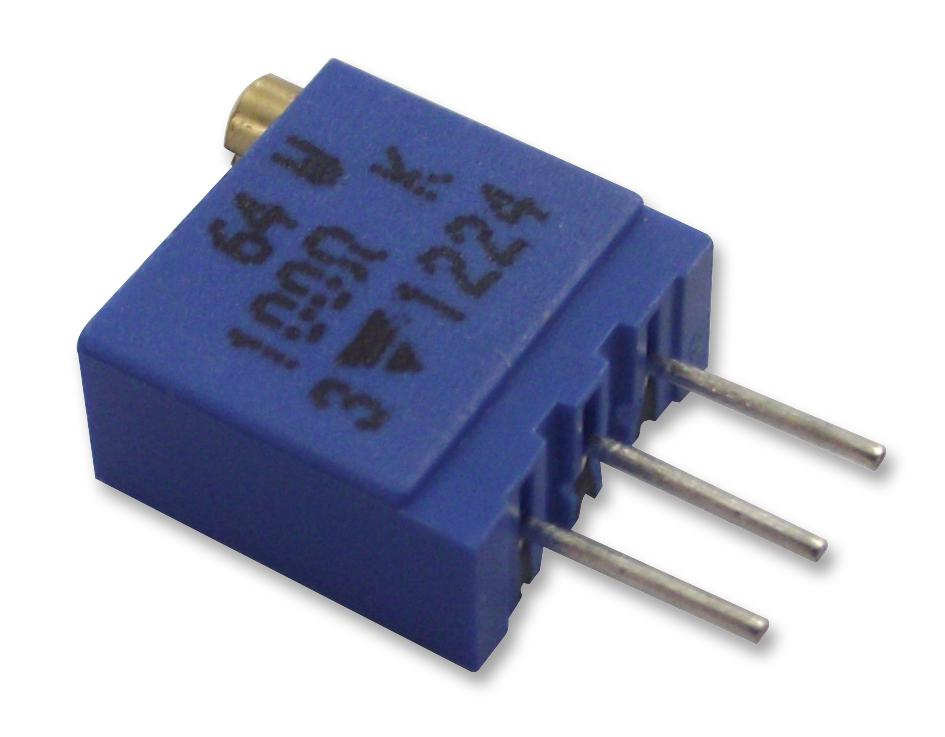

Vishay M64W202KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol 3/8" square multi-turn cermet trimmer provides precise resistance adjustment within a compact size of 10 mm. Designed for industrial applications, it features a resistive cermet element with a resistance range from 10Ω to 2.2MO, and an operating temperature range from -55°C to +155°C. Fully sealed with an IP67 rating, it ensures durability in harsh environments. This multi-turn trimmer has a mechanical travel of 23 turns plus 5, with a maximum torque of 1.5 Nem, and a weight of approximately 0.82 grams. Terminals are made of pure tin, and it complies with RoHS standards.
Vishay M64W202KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10Ω to 2.2MO
- Resistance tolerance: 10% standard, 5% on request
- Power rating: 0.5 W at +70°C
- Temperature coefficient: See standard resistance table
- Maximum voltage: 250 V (linear law)
- Contact resistance variation: < 2%
- Dielectric strength: 1000 V RMS
- Insulation resistance: > 10^8 MΩ at 500 VDC
- Mechanical travel: 23 turns + 5
- Operating torque (max): 1.5 Nem
- Terminal material: Pure Sn
- Temperature range: -55°C to +155°C
- Environmental: Fully sealed, IP67
- Dimensions: 3/8 inch (10 mm) square, height approx. 3/16 inch
- Weight: Approx. 0.82 grams
- Terminals: Solderable, Tin-plated
- Standards: RoHS compliant
Buy the Vishay M64W202KB40 – Reliable Multi-Turn Cermet Trimmer for Industrial Applications
Purchase the Vishay Series M64W202KB40 multi-turn cermet trimmer online now to benefit from precise resistance adjustments, durable IP67 sealing, and RoHS compliance. This compact 10 mm device offers a resistance range from 10Ω to 2.2MO, making it ideal for industrial applications requiring reliable calibration and fine-tuning. Its sealed enclosure ensures operation in harsh environments, and the fully sealed design prevents dust and moisture ingress. Order today and enhance your electronic assembly with this high-quality, dependable trimming solution that guarantees longevity, stability, and accurate performance.
Order your Vishay SeriesM64W202KB40 multi-turn cermet trimmer today and ensure precise resistance adjustment for your industrial projects.
Frequently Asked Questions
Where can I buy Vishay M64W202KB40?
You can click on the BUY or RFQ button to purchase M64W202KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64W202KB40?
You can download the M64W202KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64W202KB40?
Vishay
