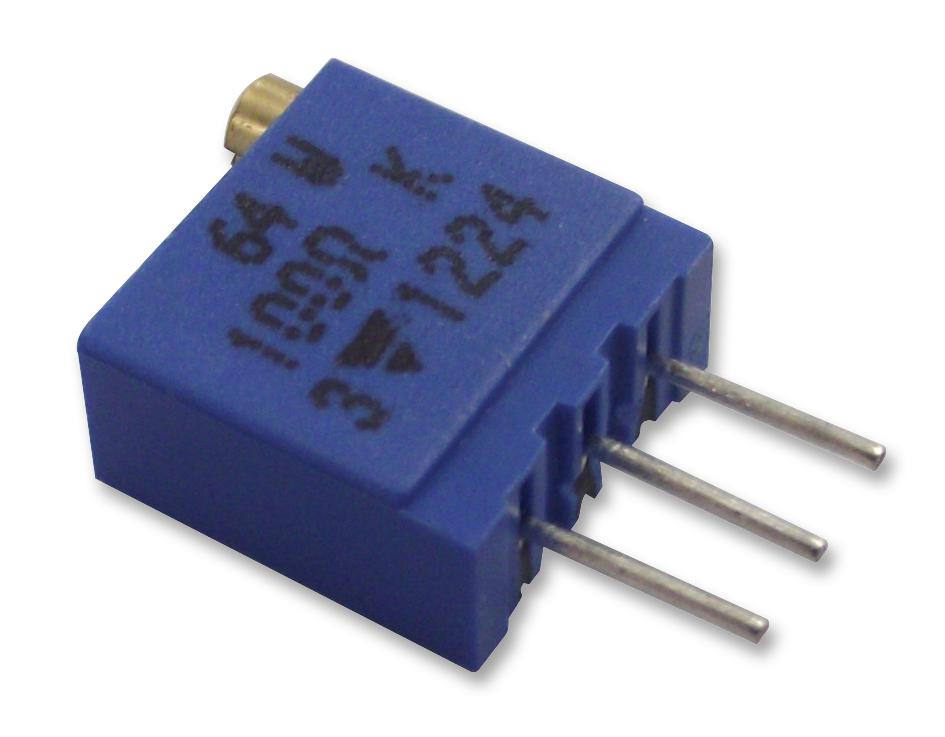

Vishay M64W204KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol Model 64 is a compact, industrial-grade multi-turn trimmer with a cermet element for excellent stability. Measuring 3/8 inch square and 3/16 inch high, it supports PC board mounting with various configurations. It offers a resistance range from 10.9 to 2.2 MΩ, rated at 0.5 W with a temperature coefficient of ppm/°C depending on the resistance value. Fully sealed to IP67, it operates reliably between –55°C and +125°C, ensuring durability in demanding environments and precise adjustments in electronic circuits.
Vishay M64W204KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9 to 2.2 MΩ
- Power rating: 0.5 W at +70 °C
- Tolerance: 10%, optional 5%
- Resistance temperature coefficient: ppm/°C varies with value
- Dielectric strength: 1000 V RMS
- Insulation resistance: 10^8 MΩ at 600 V
- Mechanical travel: 23 turns ±5
- Max operating torque: 1.5 N·cm
- Temperature range: –55°C to +125°C
- Sealing: Fully sealed, IP67
- Weight: approx. 0.82 g
- Terminal material: Pure Sn
- Vibration resistance: 10 g at 55 Hz
- Shock resistance: 0.1% change after 8 shocks
- End resistance: 12 Ω typical
Buy the Vishay Series 64 Multi-Turn Cermet Trimmer: M64W204KB40
Discover the precision and reliability of the Vishay Series 64 Multi-Turn Cermet Trimmer, featuring a resistant cermet element, sealed IP67 housing, and an adjustable range from 10.9 to 2.2 MΩ. Perfect for high-accuracy applications requiring temperature stability from –55°C to +125°C, this compact component supports PC board mounting with multiple configurations. Ideal for industrial electronics, it offers a stable resistance value, excellent durability, and reliable performance in demanding environments. Purchase online now for dependable circuit calibration and adjustment.
Order your Vishay Series 64 Multi-Turn Cermet Trimmer today and give your electronic projects the dependable, high-precision adjustment capability they deserve.
