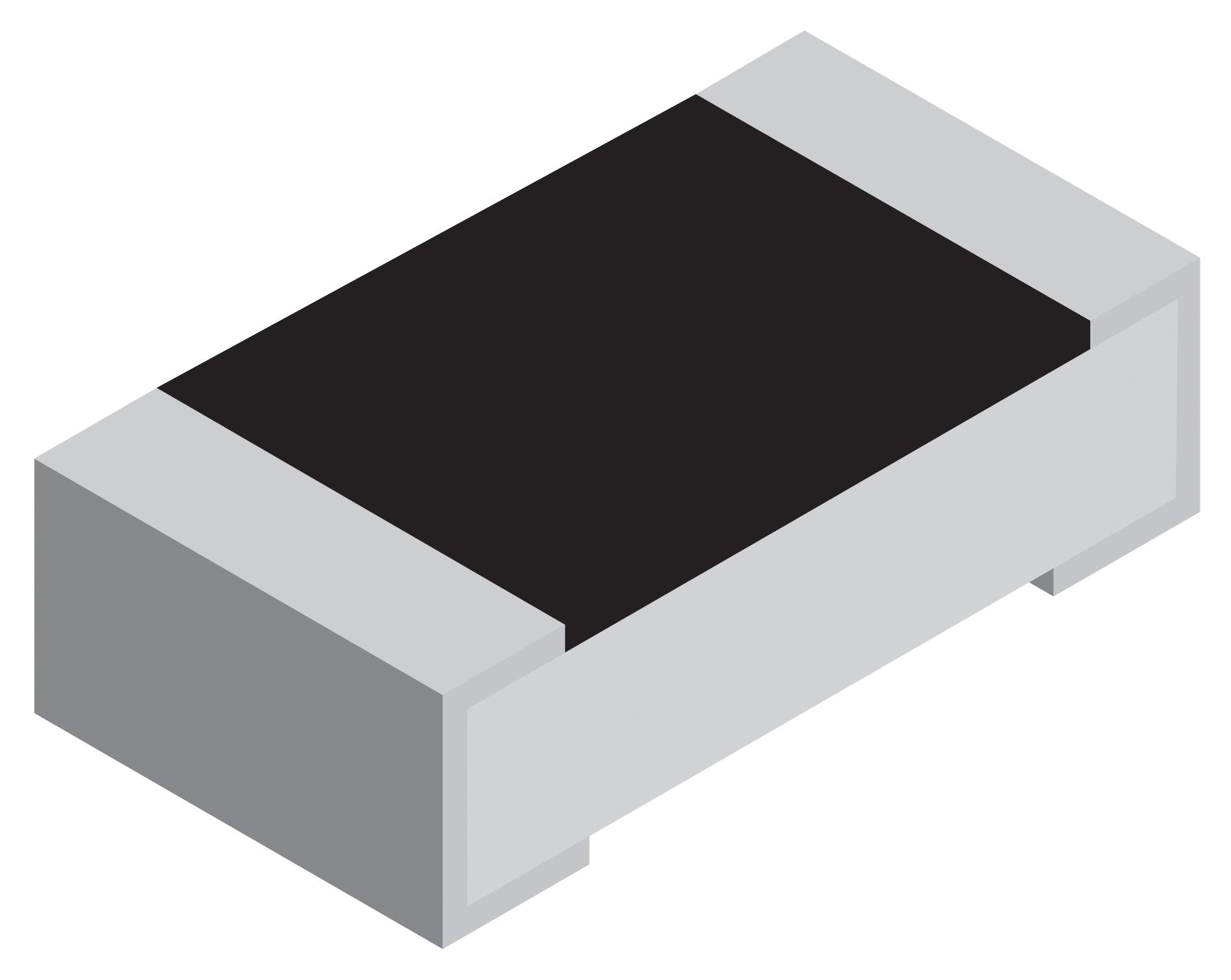

Vishay RCC0603100KFKEA High-Power Thick Film Chip Resistor
The RCC Series high-power thick film chip resistor series offers enhanced power dissipation and operating voltage suitable for automotive, industrial, and telecommunications applications. Manufactured with a robust cermet film and glass-over layer on high-quality ceramic substrates, these resistors undergo strict production controls and extensive testing to ensure reproducibility and long-term stability. The resistors are RoHS compliant, feature pure tin nickel plating for lead-free soldering, and are compatible with automated surface-mount assembly processes. They withstand harsh environmental conditions, including thermal cycling, humidity, and mechanical stress, making them ideal for demanding electronic circuits requiring reliable performance over time.
Vishay RCC0603100KFKEA High-Power Thick Film Chip Resistor Specifications:
- Size: 0402 (RR1005M), 0603 (RR1608M), 0805 (RR2012M)
- Resistance Range: 1Ω to 10MΩ, jumper resistance 0Ω
- Resistance Tolerance: ±5%
- Temperature Coefficient: ±200 ppm/K for RCC0402, ±100 ppm/K for RCC0603 and RCC0805
- Rated Dissipation: 0.125 W (0402), 0.2 W (0603), 0.25 W (0805)
- Maximum Operating Voltage: 75 V (0402), 150 V (0603), 200 V (0805)
- Permissible Film Temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Package Compatibility: RoHS-compliant, compatible with wave, reflow, vapor phase soldering
- Physical Dimensions: Length, width, and height vary per size, with typical dimensions for 0603 of 1.55mm x 0.85mm x 0.45mm
- Environmental and Electrical Tests: Endurance, humidity, vibration, thermal cycling, and soldering heat tests conforming to IEC and AEC-Q200 standards
Buy the Vishay Series RCC E3: High-Power Thick Film Chip Resistors: RCC0603
Order Vishay RCC0603 high-power thick film resistors online now to ensure your electronic systems benefit from high voltage tolerance, excellent thermal stability, and robust construction. Perfect for industrial, automotive, and telecommunication applications, these resistors deliver consistent performance and long-term reliability. With RoHS compliance and lead-free solderability, they are compatible with automated manufacturing processes, offering quick, hassle-free procurement and integration into your designs. Enhance your project’s dependability today by purchasing these high-quality resistors directly online.
Get Vishay RCC0603 high-power thick film resistors today—engineered for reliable performance in demanding industrial and automotive environments.
Frequently Asked Questions
Where can I buy Vishay RCC0603100KFKEA?
You can click on the BUY or RFQ button to purchase RCC0603100KFKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCC0603100KFKEA?
You can download the RCC0603100KFKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCC0603100KFKEA?
Vishay
