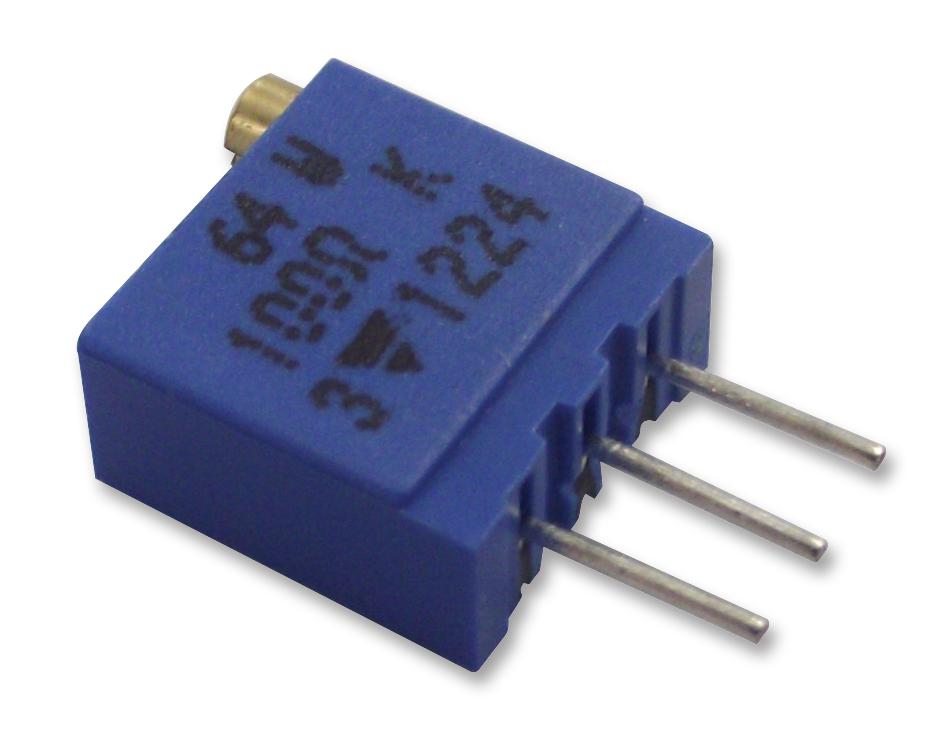

Vishay M64W502KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol 3/8 inch square multi-turn cermet trimmer is a compact, industrial-grade adjustable resistor designed for precise circuit calibration. It features a resistive cermet element with resistance ranges from 10 Ω to 2.2 MΩ, power rating of 0.5 W at +70°C, and a fully sealed IP67 construction for harsh environments. The trimmer operates across -55°C to +155°C with a dielectric strength of 1000 V RMS, and features a manual adjustment with a maximum torque of 1.5 N·m. It is RoHS compliant, offering excellent stability and linearity for industrial applications.
Vishay M64W502KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10 Ω to 2.2 MΩ
- Tolerance: 10% (standard), 5% (on request)
- Power rating: 0.5 W at +70°C
- Mechanical travel: 23 turns + 5
- Maximum operating torque: 1.5 N·m
- End resistance: 12 Ω (typical)
- Dielectric strength: 1000 V RMS
- Insulation resistance: > 10^8 MΩ at 500 V
- Temperature range: -55°C to +155°C
- Sealing: Fully sealed, IP67
- Terminal material: Pure Sn
- Operating voltage: 250 V linear law limiting element
- Climatic category: 55/125/56
- Net weight: Approx. 0.82 g
Buy the Buy Vishay Spectrol Multi-Turn Cermet Trimmer Part Number M64W502KB40 Online
Order the Vishay Spectrol multi-turn cermet trimmer online today to enhance your circuit calibration projects. Its sealed IP67 design ensures durability in harsh environments, making it suitable for industrial applications. With resistance values from 10 Ω to 2.2 MΩ, it provides precise adjustment and excellent stability across a wide temperature range. The compact square design allows easy mounting on PCBs, and the RoHS compliance guarantees environmentally friendly manufacturing. Perfect for controlling resistance in automation, instrumentation, and other engineering solutions.
Get Vishay Spectrol M64W502KB40 today—built for precise calibration and long-lasting durability in industrial environments.
