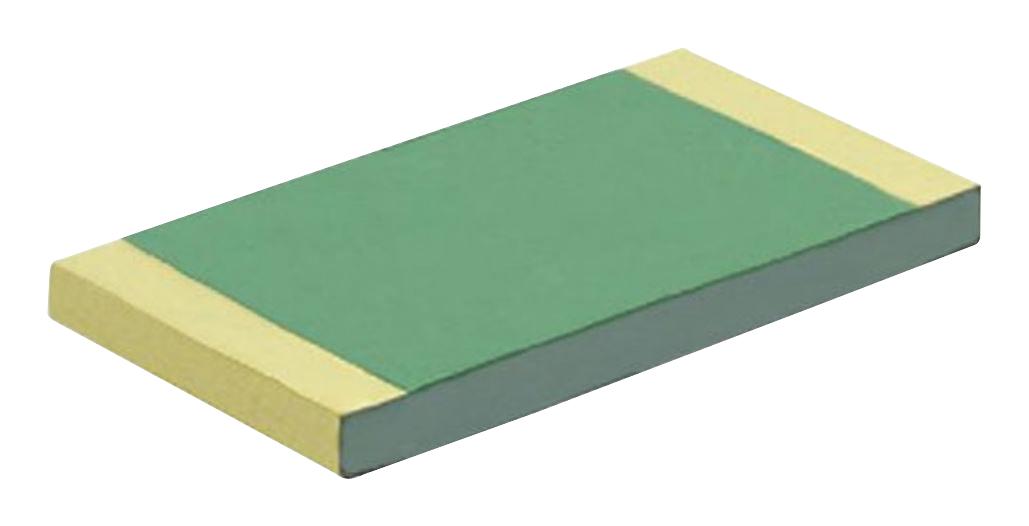

Vishay PEP0603Y1001BGTA High-Precision Thin Film Resistor
The PEP series high-precision wraparound thin film chip resistors are designed for high-power applications, offering low noise, excellent stability, and low temperature and voltage coefficients. The resistive thin film layer can withstand temperatures up to 250°C, with robustness primarily dependent on termination and solder joint integrity. This series is suitable for customers requiring smaller device sizes while maintaining the same power ratings. Features include a load life stability of typically 0.1% (maximum 0.35%) over 2000 hours at rated power and 70°C, very low noise levels, sulfur resistance per ASTM B809-95 humid vapor test, and gold-over-nickel barrier terminations.
Vishay PEP0603Y1001BGTA High-Precision Thin Film Resistor Specifications:
- Size: 0402, 0603, 0805, 1206
- Power Rating: Up to 1 W (1206 size), without cooling under PCB
- Resistance Range: 39 Ω to 900 kΩ depending on size
- Temperature Coefficient: ±5 ppm/°C to ±50 ppm/°C
- Maximum Operating Temperature: 155°C
- Load Life Stability: 0.1% typical (0.35% max.) over 2000 hours at 70°C
- Noise Level: <-35 dB
- Sulfur Resistance: Meets ASTM B809-95 humid vapor test
- Termination: Tin silver over nickel barrier or gold over nickel barrier
- Film Material: Nickel chromium alloy
- RoHS Compliant
- Durability: Can withstand temperatures up to 250°C
- Mechanical: Alumina substrate, chip size dimensions as per size
Buy the Vishay Series PEP Thin Film Resistors: PEP0603Y1001BGTA
Discover the high-precision, low-noise performance of Vishay PEP series thin film resistors, ideal for demanding applications requiring excellent stability, sulfur resistance, and compact size. These resistors are perfect for high-power circuits, with load life stability of 0.1% over 2000 hours at 70°C. With resistance ranges from 39 Ω to 900 kΩ and sizes from 0402 to 1206, they offer reliable operation, low temperature and voltage coefficients, and rugged design. Purchase now for quality and durability.
Order your Vishay Series PEP0603Y1001BGTA high-precision resistors today and ensure reliable, low-noise performance for your critical applications.
Frequently Asked Questions
Where can I buy Vishay PEP0603Y1001BGTA?
You can click on the BUY or RFQ button to purchase PEP0603Y1001BGTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP0603Y1001BGTA?
You can download the PEP0603Y1001BGTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP0603Y1001BGTA?
Vishay
