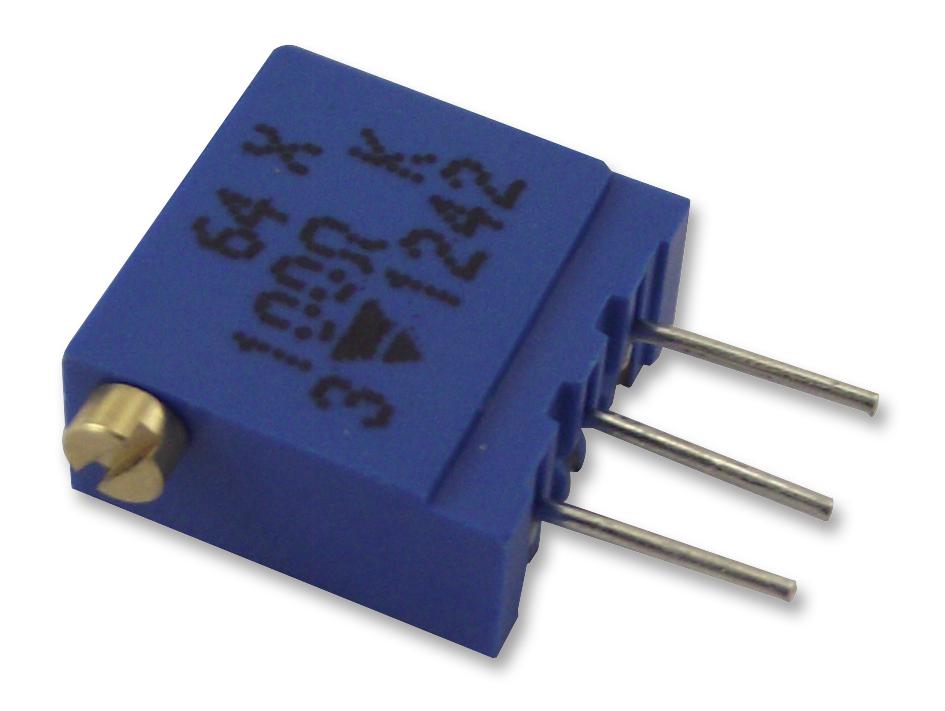

Vishay M64X101KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol Model 64 is an industrial-grade, small-sized multi-turn cermet trimmer designed for PCB mounting. Measuring 3/8" x 3/8" x 3/16", it features excellent operational stability, a resistive cermet element, and a sealed IP67 enclosure. The device offers a resistance range from 10.9 to 2.2MΩ, with a power rating of 0.5W at +70°C. It supports a temperature range of -55°C to +125°C, has a maximum contact resistance variation of 2%, and includes pure Sn terminals for reliable connections. Precise adjustment and stability make it ideal for precision electronic applications.
Vishay M64X101KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9Ω to 2.2MΩ
- Power rating: 0.5W at +70°C
- Resistance tolerance: 10%, on request 5%
- Temperature range: -55°C to +125°C
- Dielectric strength: 1000V RMS
- Insulation resistance: > 10 MΩ at 600V
- Mechanical travel: 23 turns ±5
- Terminal material: Pure Sn
- Sealing: Fully sealed, IP67
Buy the Vishay Series Spectrol Cermet Trimmer: M64X101KB40
Enhance your electronic projects with the Vishay Spectrol Multi-Turn Cermet Trimmer. This compact, industrial-grade component offers precise resistance adjustment from 10.9Ω to 2.2MΩ, supporting high stability and reliability over a wide temperature range. Its fully sealed IP67 enclosure ensures protection against dust and moisture, making it ideal for demanding environments. The device features pure Sn terminals for dependable connections and a maximum voltage of 250V. Easily set and maintain accurate resistance values with this durable, high-performance trimmer designed for PCB mounting needs. Shop online today for fast delivery and exceptional quality.
Buy Vishay Spectrol M64X101KB40 now and experience unmatched precision, stability, and durability in PCB mounting applications.
