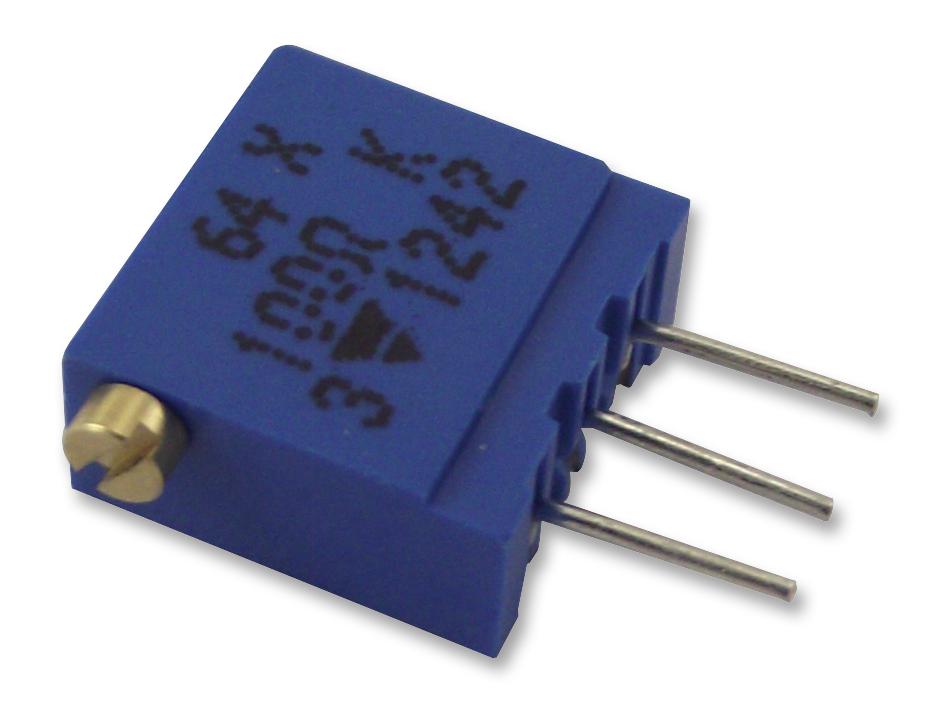

Vishay M64X104KB40 Multi-Turn Trimmer
The Vishay Spectrol Model 64 is a compact, industrial-grade multi-turn trimmer with a cermet resistive element, designed for precise PCB mounting applications. Measuring 3/8" x 3/8" x 3/16", it offers excellent stability and durability with a fully sealed IP67 enclosure. Its resistive range spans from 10.9 to 2.2 MΩ, capable of handling up to 0.5 Watts at +70°C, with a temperature range from -55°C to +125°C. The device features a linear resistance law, a limiting voltage of 250V, and a mechanical travel of 23 turns, making it ideal for fine calibration in industrial electronics.
Vishay M64X104KB40 Multi-Turn Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9 to 2.2 MΩ
- Power rating: 0.5 W at +70°C
- Resistance tolerance: 10% (standard), 5% (on request)
- Temperature range: -55°C to +125°C
- Dielectric strength: 1000 V RMS
- Insulation resistance: > 10 MΩ at 600V
- Mechanical travel: 23 turns +5
- End resistance (typical): 12 Ω
- Terminal material: Pure Sn
- Sealing: Fully sealed IP67
- Limiting voltage: 250 V
- Rated voltage: 250 V
Buy the Vishay Series 64 Multi-Turn Cermet Trimmer: M64X104KB40
Invest in the Vishay Series 64 Multi-Turn Cermet Trimmer today to ensure high precision and durability in your electrical projects. Its compact size, IP67 sealing, and wide resistance range of 10.9Ω to 2.2MΩ make it ideal for industrial applications requiring fine calibration. Capable of withstanding temperatures from -55°C to +125°C and handling up to 0.5 Watts, this trimmer ensures stable operation under demanding conditions. Purchase online now for quick delivery and trusted performance in your electronics and control systems.
Order your Vishay Series 64 Multi-Turn Cermet Trimmer now and enhance your industrial electronics with reliable and precise calibration components.
Frequently Asked Questions
Where can I buy Vishay M64X104KB40?
You can click on the BUY or RFQ button to purchase M64X104KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64X104KB40?
You can download the M64X104KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64X104KB40?
Vishay
