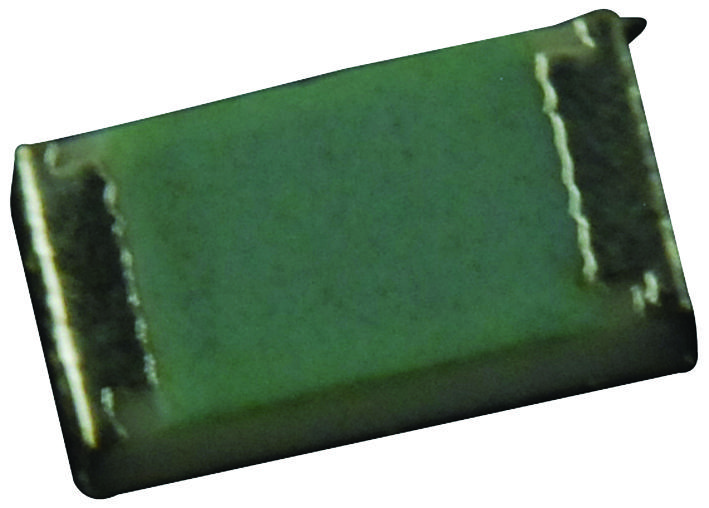

Vishay MCT06030C1002FP500 Precision Chip Resistor
Professional thin film chip resistors suitable for modern electronics requiring high stability and reliability. Available in sizes 0402, 0603, 0805, and 1206, these resistors feature excellent temperature coefficient, sulfur resistance, and RoHS compliance. Applications include telecommunication, medical equipment, automotive, and industrial devices. They are produced through controlled deposition of metal alloy on ceramic substrates, ensuring precise resistance values, high resistance to environmental conditions, and compatibility with automatic SMT assembly and reflow soldering.
Vishay MCT06030C1002FP500 Precision Chip Resistor Specifications:
- Sizes: 0402, 0603, 0805, 1206
- Resistance Range: 10.2Ω to 4.99MΩ (0402); 12Ω to 10MΩ (0603); 19Ω to 10MΩ (0805); 10Ω to 2MΩ (1206)
- Tolerance: ±0.5%, ±1%
- Temperature Coefficient: +50 ppm/K (0402, 0603, 1206); +25 ppm/K (0805)
- Rated Dissipation: 0.100 W (0402); 0.125 W (0603); 0.200 W (0805); 0.400 W (1206)
- Operating Voltage: 50 V (0402); 75 V (0603); 150 V (0805); 200 V (1206)
- Operating Temp Range: -55°C to 155°C
- Film Max Temp: 155°C
- Compliance: RoHS, EN 140401-801, IECQ-CECC
- Manufactured with high-precision laser trimming and homogeneous metal alloy film
- Suitable for wave, reflow, vapor phase soldering
- Protection Cover: Ceramic substrate with protective coating, plated with tin on nickel
- Environmental Tests: vibration, thermal cycling, damp heat, and solderability meets IEC standards
Buy the Vishay MCT06030 U– Reliable Precision Resistors for Industrial Applications
Purchase Vishay professional thin film chip resistors in various sizes today and secure reliable performance for your telecommunication, medical, and industrial electronics projects. Designed for stability, temperature tolerance, and environmental resilience, these resistors are ideal for automatic assembly and high-reliability applications. With RoHS compliance and extensive testing, they ensure long-term durability and precision in demanding conditions. Order now to upgrade your electronic systems with these top-tier resistors, backed by Vishay’s quality assurance and global availability.
Order your Vishay Series MCT06030 50 ppm/K precision resistor today and enhance your electronic design with dependable stability and performance.
Frequently Asked Questions
Where can I buy Vishay MCT06030C1002FP500?
You can click on the BUY or RFQ button to purchase MCT06030C1002FP500 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MCT06030C1002FP500?
You can download the MCT06030C1002FP500 datasheet or visit the Vishay website for support.
Who is the manufacturer of MCT06030C1002FP500?
Vishay
