Vishay M64Y101KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol Model 64 is a small, industrial-grade multi-turn cermet trimmer designed for PC board mounting. Measuring 3/8" x 3/8" x 3/16", it offers excellent stability, a resistance range from 10.9 to 2.2 MΩ, a power rating of 0.5 W at 70°C, and a sealed IP67 design suitable for demanding environments. Its resistive element is a cermet, ensuring reliable performance, and it fulfills CECC 41000 or IEC 60393-1 standards, making it ideal for precision adjustments in electronic circuits and instrumentation.
Vishay M64Y101KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9 to 2.2 MΩ
- Power rating: 0.5 W at 70°C
- Temperature range: -55°C to +125°C
- Mechanical travel: 23 turns ±5
- Sealing: Fully sealed IP67
- Terminal type: Pure Sn (code 3)
- Dielectric strength: 1000 V RMS
- Insulation resistance: > 10^8 MΩ at 600 V
- End resistance: 12 Ω typical
- Wiper position: approximately 50% travel
- End stop torque: Clutch action
- Physical dimensions: 3/8" x 3/8" x 3/16"

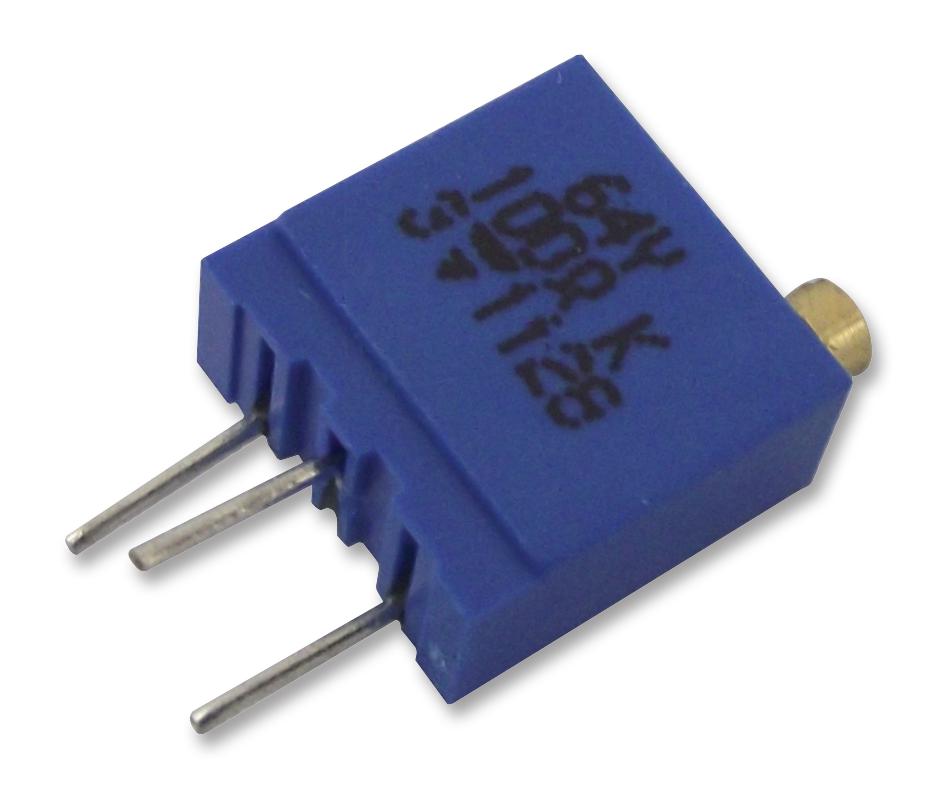

Buy the Buy Vishay Spectrol Part Number M64Y101KB40 Online
Shop online for the Vishay Spectrol Model 64 multi-turn cermet trimmer. This robust, sealed component features a resistance range of 10.9Ω to 2.2MΩ, ideal for precision electronic tuning. Its IP67 sealing ensures protection against moisture and dust, suitable for industrial applications. With a power rating of 0.5W at 70°C and operational temperature from -55°C to +125°C, it offers excellent stability with a 23-turn travel, making it perfect for calibration and adjustment in demanding circuits. Order now to enhance your project’s reliability.
Order your Vishay Series Model 64 Multi-Turn Cermet Trimmer today and ensure precise resistance adjustment with reliable IP67 sealed design for demanding environments.
Frequently Asked Questions
Where can I buy Vishay M64Y101KB40?
You can click on the BUY or RFQ button to purchase M64Y101KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64Y101KB40?
You can download the M64Y101KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64Y101KB40?
Vishay
