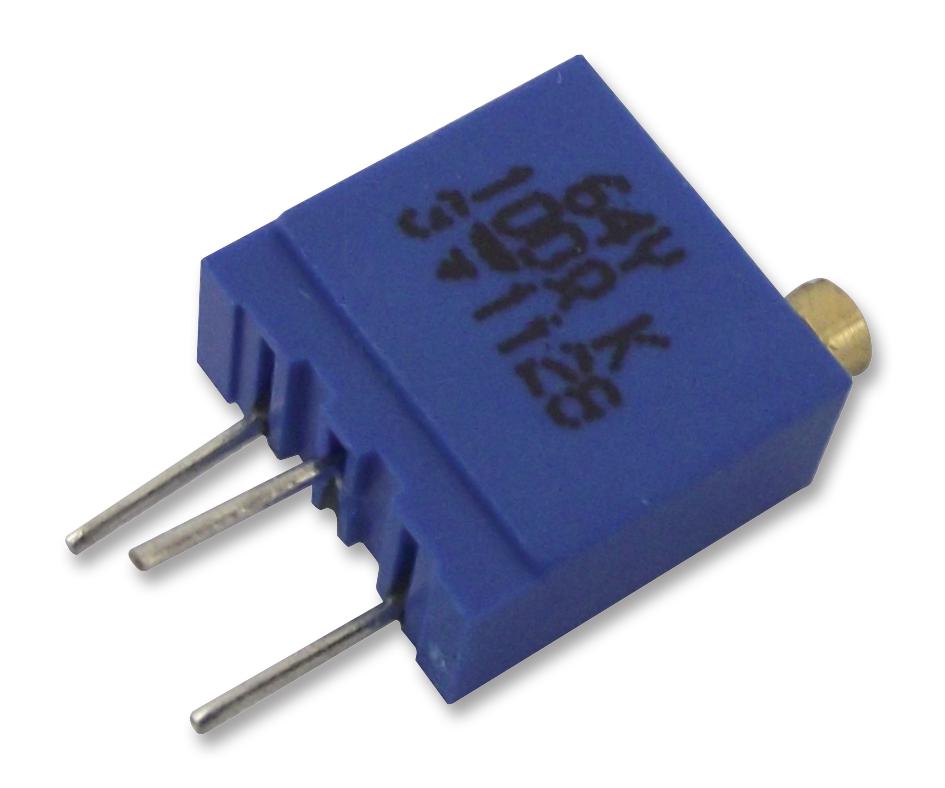

Vishay M64Y103KB40 Multi-Turn Cermet Trimmer
The Model 64 is a compact, industrial-grade multi-turn trimmer with a 3/8 inch square (10 mm) size, designed for PC board mounting. Featuring a cermet resistive element, it offers excellent operational stability, a resistance range from 10Ω to 2.2MΩ, and a power rating of 0.5W at 70°C. Fully sealed with IP67 rating, it withstands harsh environments with high temperature tolerance from -55°C to +155°C. Precise resistance adjustment, low contact resistance variation, and RoHS compliance make it ideal for precise electronic applications in industrial environments.
Vishay M64Y103KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10Ω to 2.2MΩ
- Power rating: 0.5W at 70°C
- Mechanical travel: 23 turns + 5
- Temperature range: -55°C to +155°C
- Dielectric strength: 1000V RMS
- Insulation resistance: 108 MΩ at 500V DC
- Terminal material: Pure Sn
- Sealing: Fully sealed, IP67
- Tolerance: 10%, on request 5%
- End resistance: 12Ω (typical)
- Operating torque: Max 1.5 Nem
- Thermal coefficient: See standard resistance element table
- Physical dimensions: 3/8 inch square, 3/16 inch height
- Vibration resistance: 0.75 mm or 10 g during 6 hours
- Climatic category: 55/125/56
Buy the Vishay M64Y103KB40 – Reliable Multi-Turn Cermet Trimmer for Industrial Applications
Purchase the Vishay M64Y103KB40 multi-turn cermet trimmer online today to enhance your electronic projects. This high-stability, sealed, and RoHS-compliant component offers precise resistance control, ideal for industrial automation, instrumentation, and control systems. With a resistance range of 10Ω to 2.2MΩ, 0.5W power rating at 70°C, fully sealed IP67 protection, and temperature tolerance from -55°C to +155°C, it ensures reliable performance in challenging environments. Excellent for applications requiring precise, durable, and stable adjustments, available for quick online ordering with fast delivery.
Order your Vishay Series M64Y103KB40 today and ensure precise resistance adjustment with durable, IP67 sealed, industrial-grade trimmer units.
Frequently Asked Questions
Where can I buy Vishay M64Y103KB40?
You can click on the BUY or RFQ button to purchase M64Y103KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64Y103KB40?
You can download the M64Y103KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64Y103KB40?
Vishay
