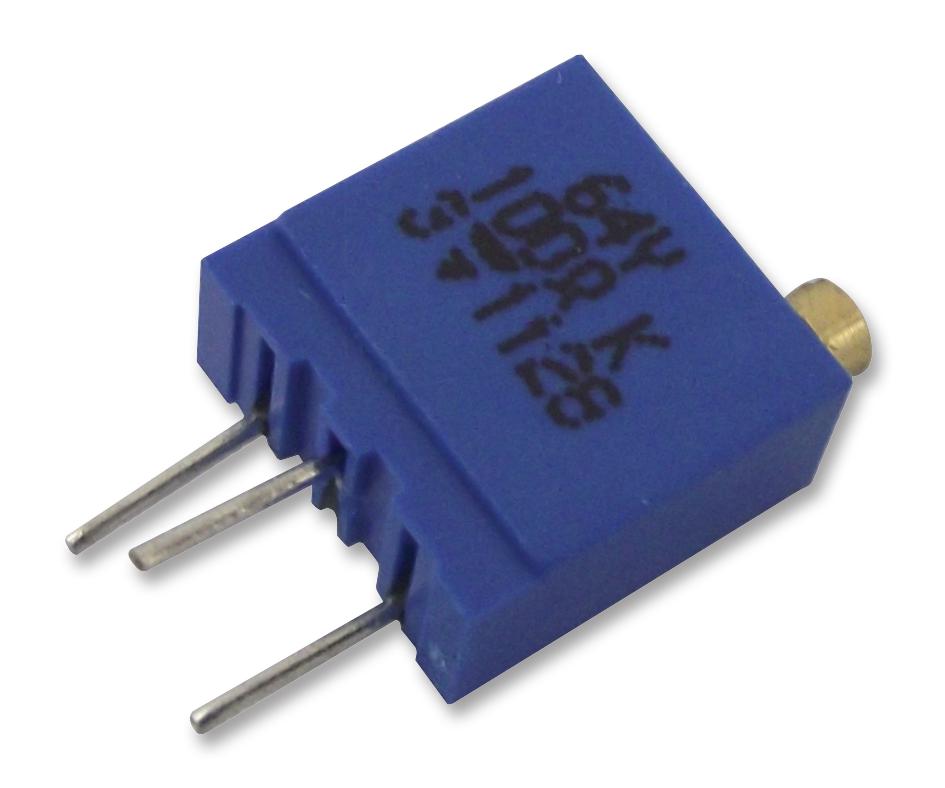

Vishay M64Y104KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol Model 64 is a compact, industrial-grade multi-turn cermet trimmer with a 3/8" x 3/8" x 3/16" size, designed for PCB mounting. It features excellent operational stability thanks to a cermet element, with resistance values ranging from 10.9 to 2.2 MΩ across various series. The trimmer operates over -55°C to +125°C, is fully sealed with IP67 protection, and handles up to 0.5 Watts at 70°C. Its mechanical travel is approximately 23 turns, with a maximum torque of 1.5 N·cm, making it ideal for precise adjustments in electronic circuits.
Vishay M64Y104KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9Ω to 2.2 MΩ
- Power rating: 0.5 W at 70°C
- Operating temperature: -55°C to +125°C
- Mechanical travel: approximately 23 turns
- End resistance: typical 12Ω
- Dielectric strength: 1000 V RMS
- Insulation resistance: > 10 MΩ
- Terminal material: Pure Sn
- Sealing: Fully sealed IP67
- Maximum torque: 1.5 N·cm
- Physical dimensions: 3/8" x 3/8" x 3/16"
- Terminal spacing: varies by model, approx. 9.7 mm
- Clutch action at end stop
- Net weight: approx. 0.82 g
- Environmental conditions: -55°C to +125°C climatic category 55/125/56
Buy the Vishay M64Y104KB40 – Reliable Multi-Turn Cermet Trimmer for Industrial Applications
Enhance your electronic designs with the Vishay M64Y104KB40 multi-turn cermet trimmer, offering excellent stability, IP67 sealing, and resistance from 10.9Ω to 2.2MΩ. Its compact size fits well on PCBs, and it supports precise adjustments across a temperature range of -55°C to +125°C. Perfect for industrial, automation, and control applications, this high-quality trimmer ensures durability and reliable performance in demanding environments. Purchase online today and experience Vishay's trusted quality for your engineering needs.
Order your Vishay Series M64Y104KB40 multi-turn trimmer today and secure high stability and precise adjustments for your electronic projects.
Frequently Asked Questions
Where can I buy Vishay M64Y104KB40?
You can click on the BUY or RFQ button to purchase M64Y104KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64Y104KB40?
You can download the M64Y104KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64Y104KB40?
Vishay
