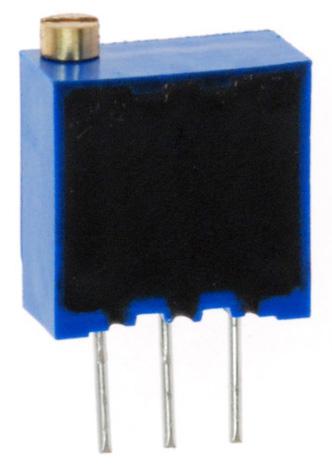

Vishay T93YA504KT20 industrial trimmer
The T93 is a compact, industrial-grade trimmer designed for PCB mounting applications, measuring 3/8" x 3/8" x 3/16". It features 21 turns of electrical travel and 23 turns of mechanical travel, providing precise adjustment. Fully sealed with an IP67 rating, it withstands harsh environments and operates over a temperature range from -55°C to +125°C. The resistive element is cermet, offering excellent stability and reliability. Available in five versions with different control screw positions and terminal spacing, it covers resistance ranges from 10 ohms to 2.2 megaohms, making it versatile for sensitive electronic circuits.
Vishay T93YA504KT20 industrial trimmer Specifications:
- Dimensions: 3/8" x 3/8" x 3/16"
- Electrical travel: 21 turns + 2
- Mechanical travel: 23 turns + 5
- Resistance range: 10 Q to 2.2 MQ
- Power rating: 0.5 W at +70°C
- Temperature range: -55°C to +125°C
- Dielectric strength: 4000 V RMS
- Insulation resistance: > 10 MΩ at 500 V
- Sealing: Fully sealed, IP67
- Material: Cermet resistive element, pure Sn terminals
- End resistance: approx. 10 Ω
- Contact resistance variation: <2%
- Tolerance: Standard 10%, on request 5%
- Resistance tolerance: 10% or 5%
Buy the Vishay T93 – Reliable Trimmer for Industrial Applications
Purchase the Vishay T93 industrial trimmer online today to ensure high precision, excellent stability, and durability. It features IP67 sealing for harsh conditions, a wide resistance range from 10 ohms to 2.2 megaohms, and robust cermet elements. Designed for PCB mounting, measuring only 3/8" x 3/8" x 3/16", it offers 21 turns of electrical travel for fine adjustment. Its full sealing, temperature range from -55°C to +125°C, and five version options make it ideal for diverse industrial, automation, and electronics applications. Secure reliable, long-lasting performance now.
Get Vishay T93 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Vishay T93YA504KT20?
You can click on the BUY or RFQ button to purchase T93YA504KT20 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part T93YA504KT20?
You can download the T93YA504KT20 datasheet or visit the Vishay website for support.
Who is the manufacturer of T93YA504KT20?
Vishay
