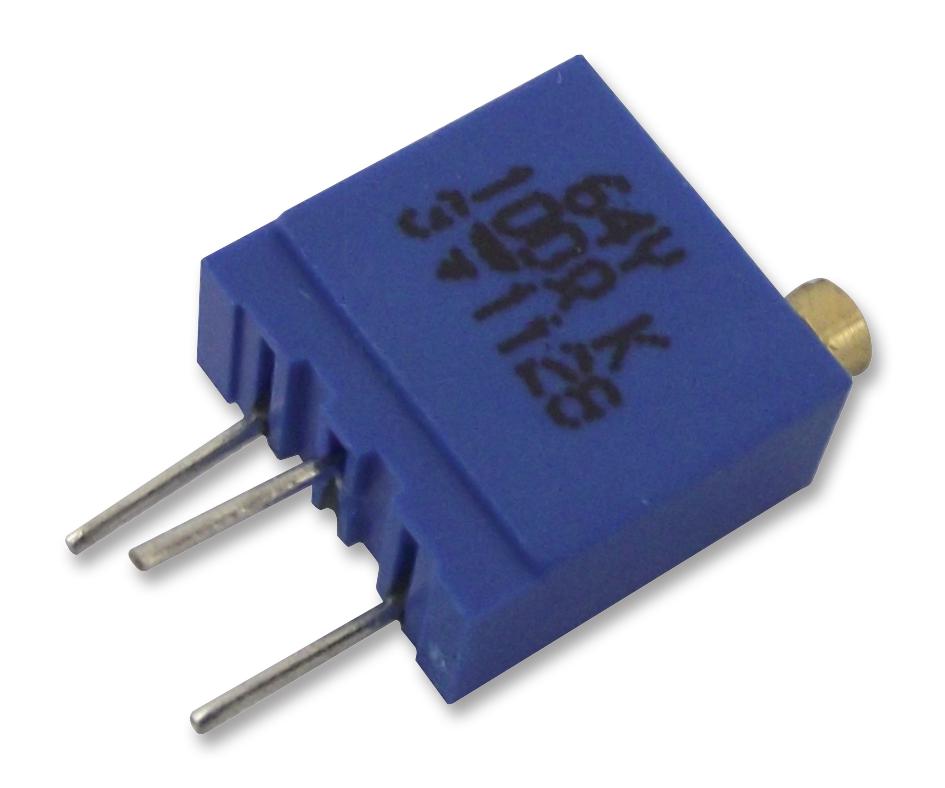

Vishay M64Y201KB40 Multi-Turn Cermet Trimmer
The 3/8 inch Square Multi-Turn Cermet Trimmer is an industrial-grade electronic component designed for precise resistance adjustments. It features a robust cermet resistive element providing excellent operational stability, suitable for PCB mounting, with resistance ranging from 10Ω to 2.2MΩ. The trimmer supports a power rating of 0.5 Watts at +70°C and is fully sealed with IP67 rating, ensuring protection against environmental factors. Its compact 3/8
Vishay M64Y201KB40 Multi-Turn Cermet Trimmer Specifications:
- Dimensions: 3/8 inch x 3/8 inch x 3/16 inch
- Resistive element: Cermet
- Resistance range: 10Ω to 2.2MΩ
- Power rating: 0.5 Watts at +70°C
- Temperature range: -55°C to +125°C
- Sealing: Fully sealed IP67
- Electrical travel: 21 turns
- Dielectric strength: 1000 V RMS
- Insulation resistance: >10 MΩ at 600 VDC
- Contact resistance variation: < 2%
- Mechanical travel: 23 ± 5°,
- Operating torque: max 1.5 N·cm
- Wiper position: approx. 50% of travel
- Terminal material: Pure Sn
- Environmental conditions: Climatic category 55/125/56
Buy the Buy Vishay Spectrol Multi-Turn Cermet Trimmer Part Number M64Y201KB40 Online
Purchase the Vishay Spectrol Multi-Turn Cermet Trimmer online today. Designed for precise resistance adjustments, it features IP67 sealing for environmental protection. Compact and reliable, it supports resistance from 10Ω to 2.2MΩ, with a power rating of 0.5 Watts at +70°C. Its fully sealed IP67 design ensures durability against humidity and dust, making it ideal for industrial and PCB applications. Easy to install with 21 turns of electrical travel, it guarantees stability and long-term performance. Shop now for fast delivery and superior quality.
Buy Vishay M64Y201KB40 now and experience unmatched reliability and precision for your PCB resistance adjustment needs.
Frequently Asked Questions
Where can I buy Vishay M64Y201KB40?
You can click on the BUY or RFQ button to purchase M64Y201KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64Y201KB40?
You can download the M64Y201KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64Y201KB40?
Vishay
