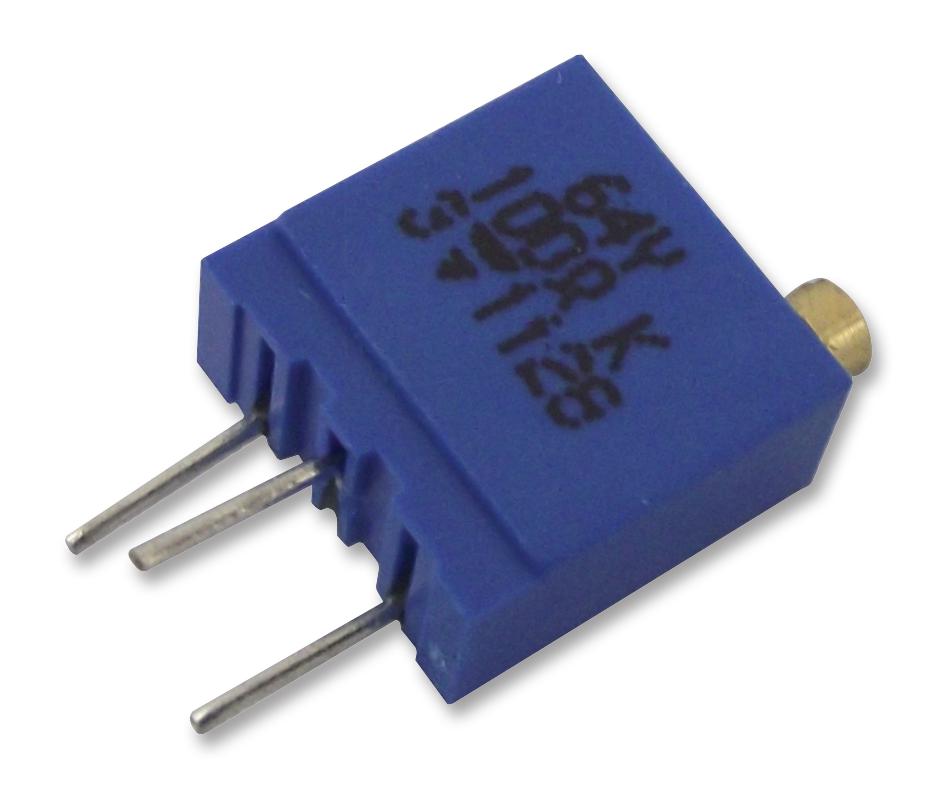

Vishay M64Y502KB40 Cermet Trimmer
The Vishay Spectrol Model 64 is a compact, industrial-grade 3/8 inch square multi-turn cermet trimmer designed for precise PCB adjustments. It features excellent operational stability thanks to its cermet element, with resistance values ranging from 10.9 to 2.2 MΩ and a power rating of 0.5 W at 70°C. Fully sealed (IP67) for harsh environments, it operates from -55°C to +125°C and offers a dielectric strength of 1000 V. Its robust construction ensures reliability in industrial and electronic applications.
Vishay M64Y502KB40 Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9Ω to 2.2MΩ
- Power rating: 0.5 W at +70°C
- Tolerance: Standard 10%, on request 5%
- Linear resistance law
- Temperature coefficient: see standard resistance data, ppm/°C varies by resistance value
- Maximum working current: dependent on resistance value
- Dielectric strength: 1000 V RMS
- Insulation resistance: > 10 MΩ at 600 V
- Operating temperature: -55°C to +125°C
- Sealing: Fully sealed IP67
- Mechanical travel: 23 turns ±5
- End resistance: typical 12Ω
- Wiper position: approx. 50% of travel
- Terminals: Pure Sn finish
- Approximate weight: 0.82 g
Buy the Vishay 64Y502KB40 – Reliable Cermet Trimmer for Industrial Applications
Explore the Vishay Spectrol Cermet Trimmer designed for precise PCB adjustments and high stability in harsh environments. Fully sealed IP67 ensures durability against moisture and dust, making it ideal for industrial automation, instrumentation, and calibration applications. With resistance values from 10.9Ω to 2.2MΩ and a power rating of 0.5W at +70°C, this compact 3/8 inch square multi-turn trimmer offers excellent reliability and longevity. Upgrade your electronic components with this robust and high-quality multi-turn cermet device for optimal performance.
Buy Vishay 64Y502KB40 now and experience unmatched reliability and precision in industrial and electronic applications.
Frequently Asked Questions
Where can I buy Vishay M64Y502KB40?
You can click on the BUY or RFQ button to purchase M64Y502KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64Y502KB40?
You can download the M64Y502KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64Y502KB40?
Vishay
