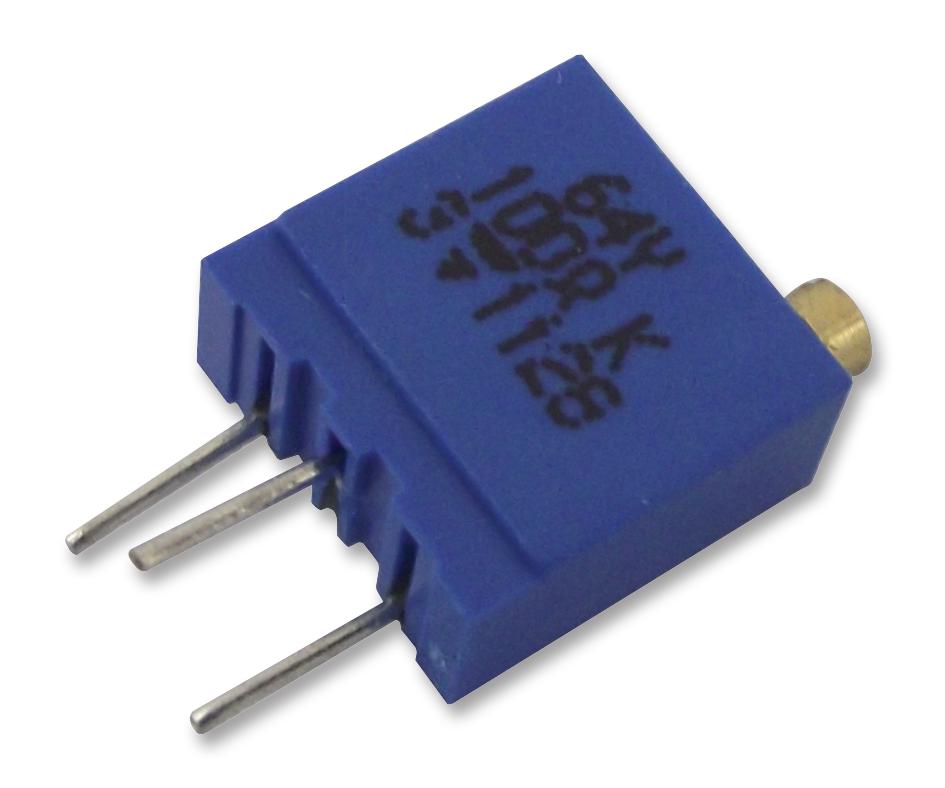

Vishay M64Y503KB40 Multi-Turn Cermet Trimmer
The Vishay Spectrol Model 64 is a compact, industrial-grade multi-turn cermet trimmer with a 3/8 inch square size, ideal for PCB mounting. It features excellent operational stability, a resistive cermet element, and adjustable resistance with a tolerance of 10%. Rated for +70°C and full sealed IP67, it offers a resistance range from 10.9 Ω to 2.2 MΩ, with a maximum power rating of 0.5 W. Its mechanical and electrical specifications ensure durability in demanding environments, suitable for precise resistance adjustments in electronic circuits.
Vishay M64Y503KB40 Multi-Turn Cermet Trimmer Specifications:
- Resistive element: Cermet
- Resistance range: 10.9 to 2.2 MΩ
- Tolerance: 10% (standard), 5% (on request)
- Power rating: 0.5 W at +70°C
- Mechanical travel: 23 turns ±5
- End resistance: 12 Ω typical
- Dielectric strength: 1000 V RMS
- Insulation resistance: > 10 MΩ at 600 V
- Temperature range: -55°C to +125°C
- Sealing: Fully sealed, IP67
- Terminal material: Pure Sn (code 3)
- Net weight: Approx. 0.82 g
- Terminal spacing: varies by model, up to 9.7 mm
- Vibration resistance: 0.75 mm or 10 g, 6 hours
- Shock resistance: 8 shocks, 3 directions
- Rotational life: 200 cycles
Buy the Buy Vishay Spectrol Multi-Turn Cermet Trimmer Part Number M64Y503KB40 Online
Purchase the Vishay Spectrol Model 64 multi-turn cermet trimmer online today to benefit from its compact size, high stability, sealed IP67 protection, and wide resistance range. Perfect for PCB mounting in industrial environments, this adjustable resistor provides reliable performance across a temperature range of -55°C to +125°C. With a resistance range spanning from 10.9 ohms to 2.2 megaohms and a power rating of 0.5 W at +70°C, it offers excellent electrical stability, durability, and ease of installation for precise circuit tuning. Order now to enhance your electronic projects with this robust, high-quality component.
Buy Vishay Spectrol M64Y503KB40 now and ensure precise resistance adjustment with high stability and IP67 sealing for demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay M64Y503KB40?
You can click on the BUY or RFQ button to purchase M64Y503KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M64Y503KB40?
You can download the M64Y503KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M64Y503KB40?
Vishay
