Vishay VSS8D2M10M3H Surface-Mount Schottky Rectifier
The VSS8D2M10 is a surface-mount TMBS® (Trench MOS Barrier Schottky) rectifier by Vishay, designed for high frequency inverters, DC/DC converters, and polarity protection in automotive, industrial, and commercial applications. It features a low-profile SlimSMAW package, meets UL 94V-0 flammability rating, and is RoHS compliant. Qualified under AEC-Q101, it supports up to 100V reverse voltage, 2A forward current, with a typical forward voltage of 0.56V at 1A. Its thermal resistance and mechanical specifications ensure reliable performance in demanding environments.
Vishay VSS8D2M10M3H Surface-Mount Schottky Rectifier Specifications:
- Package: SlimSMAW (DO-221AD)
- Material: UL 94V-0 flammability rating, halogen-free, RoHS compliant
- Maximum Repetitive Peak Reverse Voltage: 100 V
- Maximum Average Forward Rectified Current: 2 A
- Peak Forward Surge Current: 50 A
- Operating Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Forward Voltage at 1A: 0.56V (typ.), 0.74V (max.) at 2A
- Reverse Current at 25°C: 0.15mA (max.) at 100V
- Junction Capacitance: 250 pF at 4.0V, 1 MHz
- Thermal Resistance Junction-to-Ambient: 12-15°C/W
- Mounting Pad Layout conforms to JESD 201 class 2 whisker test
- Leads: Matte tin plated, solderable per J-STD-002

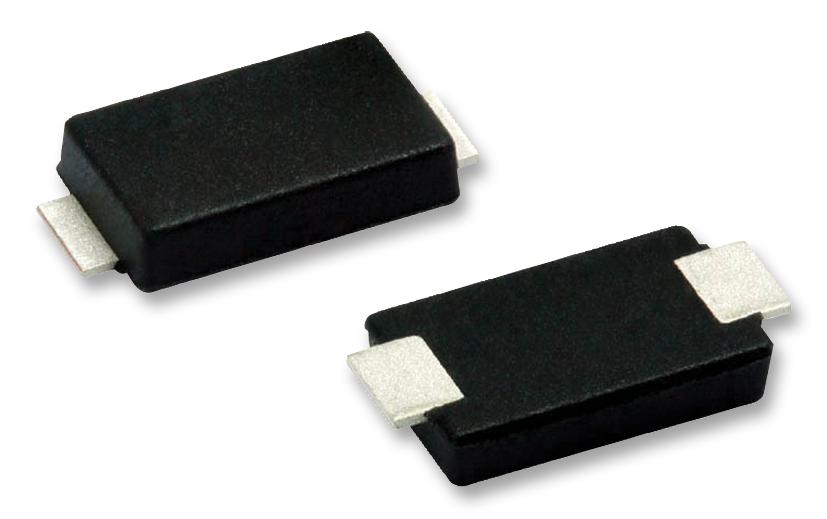

Buy the Buy Vishay VSS8D2M10 Part Number VSS8D2M10M3H Online
Purchase the Vishay VSS8D2M10 Schottky rectifier online today to ensure seamless integration into your high-frequency converters, automotive circuits, and industrial power modules. Designed with a compact Low-profile SlimSMAW package, it offers excellent thermal management, low forward voltage, and high surge current capability. Ideal for polarity protection and high-speed switching applications, this component guarantees durability and efficiency. Order now to benefit from fast delivery and expert support, optimizing your device performance with proven Vishay quality.
Buy Vishay VSS8D2M10 now and experience unmatched reliability and high-frequency switching performance in your automotive and industrial designs.
Frequently Asked Questions
Where can I buy Vishay VSS8D2M10M3H?
You can click on the BUY or RFQ button to purchase VSS8D2M10M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSS8D2M10M3H?
You can download the VSS8D2M10M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VSS8D2M10M3H?
Vishay
