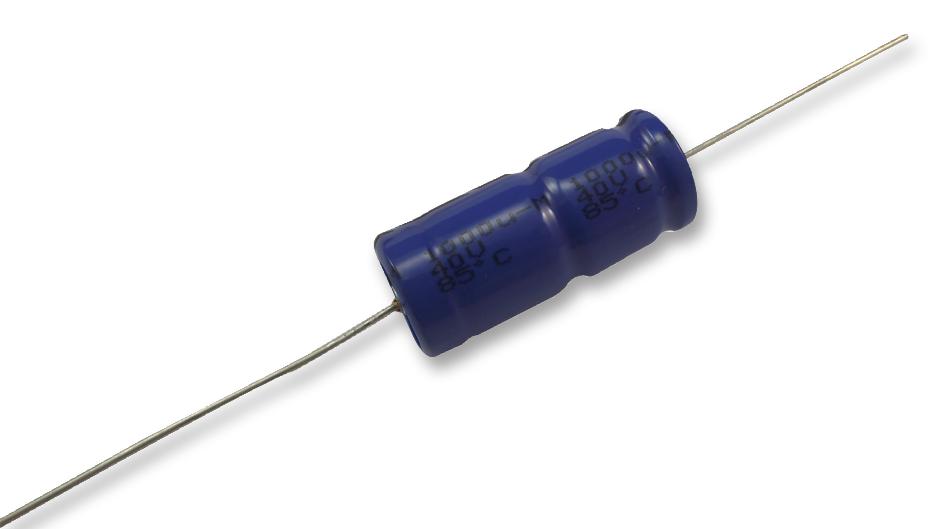

Vishay MAL202133471E3 Aluminum Electrolytic Capacitor
The product is a high-quality aluminum electrolytic capacitor designed for general purpose, industrial, automotive, and audio-video applications. It features long useful life up to 8000 hours at 85°C, miniaturized high capacitance per volume, and RoHS compliance. Suitable for coupling, decoupling, filtering, and buffering, it offers axial mounting with cylindrical aluminum cases, insulated with blue sleeves. Tape versions are available for automatic insertion, making it ideal for vibration-resistant, low-profile, portable, and mobile equipment requiring reliable performance in demanding environments.
Vishay MAL202133471E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 45x10 mm to 21x38 mm
- Rated capacitance range: 1 UF to 15,000 UF with ±20% tolerance
- Rated voltage range: 6.3 V to 100 V
- Temperature range: -40°C to +85°C
- Endurance: up to 8000 hours at 85°C, 2000 hours at 105°C
- Useful life at 85°C: 2500 to 8000 hours
- Taped versions available for automatic insertion in cases up to 15 mm x 30 mm
- Material: Cylindrical aluminum case, polarized, non-solid electrolyte, blue insulated sleeve
- Mounting: Axial leads, with optional mounting rings for vibration resistance
- Features: RoHS compliant, charge/discharge proof, high capacitance per volume, long useful life, reliable in vibrating environments
Buy the Vishay Series 021 Aluminum Electrolytic Capacitors: MAL202133471E3
Enhance your electronic projects with Vishay Aluminum Electrolytic Capacitors, known for their long life, compact design, and reliable performance. Perfect for industrial, automotive, and audio-video applications, these capacitors offer excellent endurance, high capacitance, and RoHS compliance. Available with axial leads and tape versions for easy automatic insertion, they are ideal for vibration-resistant and low-profile designs. Shop online now for fast delivery, superior quality, and lasting performance that meets your demanding technical needs.
Get Vishay Aluminum Electrolytic Capacitors today—built for long-lasting durability and high reliability in demanding applications.
Frequently Asked Questions
Where can I buy Vishay MAL202133471E3?
You can click on the BUY or RFQ button to purchase MAL202133471E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL202133471E3?
You can download the MAL202133471E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL202133471E3?
Vishay
