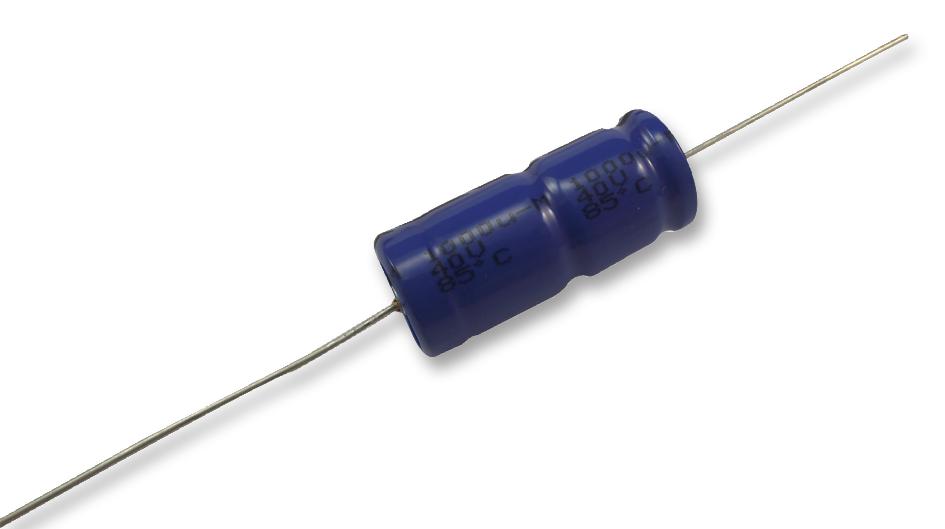

Vishay MAL212028331E3 Aluminum Capacitors
Vishay BCcomponents offers axial aluminum electrolytic capacitors designed for high temperature and ripple current applications. These capacitors feature an extended temperature range up to 150 °C, low ESR levels for high ripple capabilities, and long useful life of up to 8000 hours at 125 °C. Suitable for automotive, industrial, and telecommunication uses, they come in various sizes with taped versions for automated assembly. With AEC-Q200 qualification, these capacitors ensure reliable performance in demanding environments, making them ideal for power supply filtering, smoothing, and noise suppression.
Vishay MAL212028331E3 Aluminum Capacitors Specifications:
- Case sizes: 10x30 mm to 21x38 mm
- Rated capacitance: 47 UF to 6800 UF
- Tolerance on capacitance: +20%
- Rated voltage: 16 V to 100 V
- Temperature range: -40°C to +150°C
- Endurance test at 150°C: 1000h
- Useful life at 85°C with ripple: 40,000 hours
- Leakage current after 1 min at rated voltage: ≤ 0.012 Cr x Un + 40 pA
- Dimensions: D x L in mm vary per size, e.g., 10x30 to 21x38
- Material: Aluminum electrolytic, non-solid electrolyte
- Low ESR levels for high ripple current
- RoHS compliant, AEC-Q200 qualified
Buy the Vishay Series ATC Aluminum Capacitors: MAL212028331E3
Discover Vishay ATC aluminum electrolytic capacitors, engineered for high temperature and ripple current environments. With extended temperature range up to 150°C, low ESR, and long operational life, these capacitors are perfect for automotive, industrial, and telecommunication power applications. Suitable for smoothing, filtering, and buffering tasks, they come in various sizes with taped versions for easy automation. Purchase online today to ensure reliable, high-performance power management in your electronic systems, backed by industry-leading quality and qualifications.
Get Vishay ATC aluminum capacitors today—built for high temperature resilience and long-lasting power stability.
Frequently Asked Questions
Where can I buy Vishay MAL212028331E3?
You can click on the BUY or RFQ button to purchase MAL212028331E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL212028331E3?
You can download the MAL212028331E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL212028331E3?
Vishay
