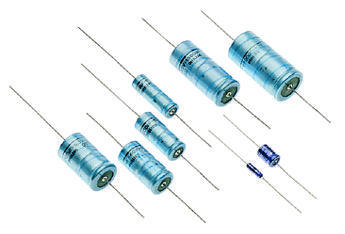

Vishay MAL202190515E3 Aluminum Electrolytic Capacitors
Vishay electrical aluminum electrolytic capacitors in axial miniatures with high capacitance and voltage ratings, suitable for industrial, automotive, and electronic applications. These reliable, long-lasting capacitors feature a miniature form factor, high CV product per volume, and RoHS compliance. They support general purpose, filtering, decoupling, and buffering in portable and vibration-resistant environments. Marked with capacitance, voltage, and manufacturing details, they are available in various case sizes with taped and axial forms, engineered for durability and precise performance under rigorous conditions.
Vishay MAL202190515E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case sizes: 45x10 mm to 21x38 mm
- Rated capacitance range: 1 UF to 15,000 UF
- Tolerance on Cr: ±20%
- Rated voltage range: 6.3 V to 100 V
- Temperature range: -40°C to +85°C
- Endurance: 2500h to 8000h at 85°C
- Useful life: 2500h to 8000h at 85°C, up to 200,000h at 40°C
- RoHS compliant, taped versions available for automatic insertion
- Axial leads, cylindrical aluminum case, insulated with a blue sleeve
- Leakage current: < 0.006 × Cp × Un after 1 min at Un
- Dissipation factor: Max tan δ at 100 Hz
- Impedance: Max Z at 10kHz, ESR at 100Hz
- Markings include capacitance, voltage, tolerance code, date, and factory information
Buy the Vishay Series MAL202190515E3 Aluminum Electrolytic Capacitors: High-Voltage Miniature Components
Order Vishay aluminum electrolytic capacitors online today to benefit from their long life, high reliability, and compact design. Perfect for industrial, automotive, and consumer electronics, these capacitors support filtering, decoupling, and buffering with high capacitance and voltage ratings. Featuring axial and taped forms for easy automated assembly, they meet RoHS standards and are designed to withstand vibration and shock. Enhance your projects with parts engineered for durability and precision, now available with fast online delivery.
Get Vishay 021 ASM today—built for precision, long-lasting durability, and superior performance in demanding environments.
Frequently Asked Questions
Where can I buy Vishay MAL202190515E3?
You can click on the BUY or RFQ button to purchase MAL202190515E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL202190515E3?
You can download the MAL202190515E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL202190515E3?
Vishay
