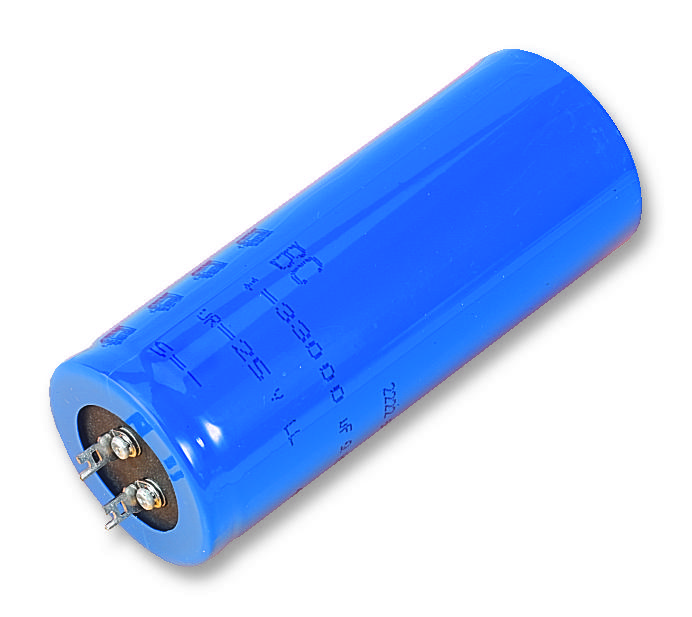

Vishay MAL205018103E3 Aluminum Capacitors
Vishay BCcomponents 050 series aluminum electrolytic capacitors are polarized components designed for power supply filtering, energy storage, and ripple current applications. With a long useful life of up to 15,000 hours at 85°C, they feature low ESR, high ripple current capability, and resistance to shock and vibration. Available in various sizes with cylindrical aluminum cases, insulated with a blue sleeve, and provided with keyed polarity for easy installation, these capacitors are RoHS compliant and suitable for industrial, telecommunication, and computer systems.
Vishay MAL205018103E3 Aluminum Capacitors Specifications:
- Nominal case size: 25 x 30 mm to 40 x 100 mm
- Rated capacitance: 470 uF to 47,000 uF
- Tolerance on Cr: -10 % to +30 %
- Rated voltage range: 10 V to 400 V
- Category temperature range: -40°C to +85°C
- Endurance: 5000 hours at 85°C, useful life: 15,000 hours at 85°C
- Shelf life: 500 hours at 0 V, 85°C
- Flammability: UL 94V-0
- Case material: Aluminum, insulated with blue sleeve
- Shock and vibration resistant, RoHS and non-solid electrolyte compliant
- Available in solder-lug (SL) and printed wiring (PW) versions
- Typical ESR at 100 Hz, impedance, and ripple current capabilities vary by size and voltage
- Maximum leakage current after 1 minute at Ur: 0.006 Cr x Un + 4 μA
- Maximum ESR: varies with size, typically less than 1.3 times the specified limit at 85°C
- Max. case OD: 25 mm to 40 mm; length varies with model
- Temperature coefficient: ESR increases with temperature
- Suitable for smoothing, filtering, energy storage in pulse systems, and switch mode power supplies
Buy the Vishay Series 050 Aluminum Capacitors: MAL205018103E3
Purchase Vishay aluminum electrolytic capacitors MAL205018103E3 online today. These high-quality, long-lasting components provide excellent ripple current capability and resistance to shock and vibration, ensuring device stability and durability. Perfect for industrial, telecom, and computer power supplies, these capacitors meet RoHS standards and come in various sizes with cylindrical aluminum cases insulated with a blue sleeve. Secure your supply of reliable, compliant capacitors now for efficient energy storage, filtering, and pulse applications.
Buy Vishay aluminum electrolytic capacitors MAL205018103E3 now and experience unmatched reliability and performance for your power and filtering needs.
Frequently Asked Questions
Where can I buy Vishay MAL205018103E3?
You can click on the BUY or RFQ button to purchase MAL205018103E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL205018103E3?
You can download the MAL205018103E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL205018103E3?
Vishay
