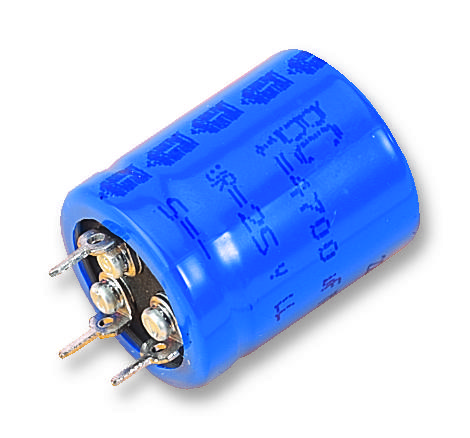

Vishay MAL205356471E3 Aluminum Capacitors
The Vishay PEC-PW series aluminum electrolytic capacitors are polarized, non-solid electrolyte components designed for general purpose, power supplies, energy storage, and industrial applications. Featuring long useful life of 12,000 hours at 85°C, high ripple current capability, and resistance to shock and vibration, these capacitors are available in various case sizes ranging from 25x30mm to 40x100mm. They are suitable for applications requiring reliability and durability in challenging environments, with features including RoHS compliance, blue insulated sleeves, and indication of polarity for safe installation.
Vishay MAL205356471E3 Aluminum Capacitors Specifications:
- Nominal case size: 25 x 30 mm to 40 x 100 mm
- Rated capacitance: 680 UF to 68 UF (E6 series), Cr 150000 uF | 2200 uF
- Tolerance on Cr: 20%
- Rated voltage: 10 V to 100 V; 200 V to 400 V
- Temperature range: -40°C to +85°C
- Endurance: 5000 hours at 85°C
- Useful life: 12,000 hours at 85°C
- Shelf life: 500 hours at 0 V, 85°C
- Case material: Cylindrical aluminum, insulated with blue sleeve
- Features: High ripple current, shock and vibration resistance, polarity marking, RoHS compliant
- Mounting: When connected in bank, maintain at least 15 mm apart
- Electrical characteristics: Max leakage current after 1 min at Up, Max ESR at 100Hz, Max impedance at 10kHz
- Max. case inductance: 25 nH to 35 nH depending on size
- Maximum voltage: Us=1.15x Un for < 250 V, surge voltage > 385 V depending on model
- Case sizes and dimensions vary with capacitance and voltage ratings
- Marked with rated capacitance, tolerance, voltage, date code, and polarity
Buy the VISHAY 051/053 PEC-PW – Reliable Aluminum Capacitors for Industrial Applications
Purchase Vishay PEC-PW aluminum electrolytic capacitors online today to ensure reliable power storage, high ripple current capacity, and extended lifespan in industrial, medical, and audio/video systems. These high-quality capacitors feature long useful life of 12,000 hours at 85°C, resist shock and vibration, and are RoHS compliant. Ideal for applications demanding durability and efficiency, they are available in various case sizes with marked polarity, ensuring safe installation and operation. Shop now for dependable performance in challenging environments.
Get Vishay PEC-PW capacitors today—built for durability, high ripple current, and long life in industrial power systems.
Frequently Asked Questions
Where can I buy Vishay MAL205356471E3?
You can click on the BUY or RFQ button to purchase MAL205356471E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL205356471E3?
You can download the MAL205356471E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL205356471E3?
Vishay
