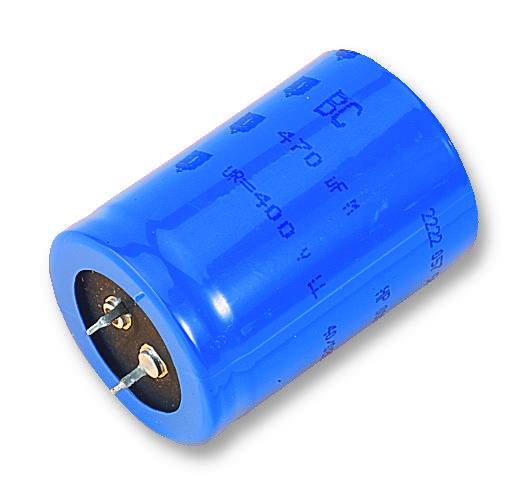

Vishay MAL205655103E3 Aluminum Electrolytic Capacitors
Vishay BCcomponents Power Standard Miniature Snap-In Aluminum Electrolytic Capacitors are designed for general purpose, industrial, and audio/video systems. Featuring long useful life of 12,000 hours at 85°C, low ESR, high ripple current capability, and pressure relief on the top of the aluminum case, these polarized capacitors are RoHS compliant with non-solid electrolyte. They provide reliable filtering, smoothing, energy storage, and pulse system applications with versatile case sizes, easy mounting, and marked polarity to ensure safe and efficient operation.
Vishay MAL205655103E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case size: 22 x 25 mm to 35 x 50 mm
- Capacitance range: 470 µF to 47,000 µF
- Rated voltage: 10V to 450V
- Category temperature range: -25°C to +85°C
- Endurance: 5,000 to 12,000 hours at 85°C depending on voltage
- Useful life: up to 210,000 hours at 40°C and 1.4xIp
- Leakage current: <= 0.006 Ca x Un after 1 min, <= 0.002 Ca x Un after 5 min
- Ripple voltage: max RMS 12V
- Pressure relief on top of aluminum case
- RoHS compliant, non-solid electrolyte
- Operating frequency: 100 Hz to 10 kHz, impedance and ESR vary with temperature and frequency
- Markings include capacitance, voltage, date code, polarity dot/mark
- Physical dimensions include case size, mass, and mounting hole configurations
Buy the Vishay Series PSM-SI Aluminum Electrolytic Capacitors: 47000F 450V
Purchase Vishay PSM-SI aluminum electrolytic capacitors online today and benefit from their long life, low ESR, and high ripple current capabilities. Ideal for industrial, audio/video, and power supply applications, these capacitors offer reliable energy storage and filtering with versatile case sizes and easy mounting options. Ensure your electronic systems operate efficiently and safely by choosing high-quality, RoHS compliant capacitors designed for demanding environments. Order now and enhance your project’s performance with Vishay’s trusted power solutions.
Buy Vishay PSM-SI aluminum electrolytic capacitors now and experience unmatched reliability and performance in power smoothing and filtering applications.
Frequently Asked Questions
Where can I buy Vishay MAL205655103E3?
You can click on the BUY or RFQ button to purchase MAL205655103E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL205655103E3?
You can download the MAL205655103E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL205655103E3?
Vishay
