Vishay MAL210616103E3 Aluminum Capacitors

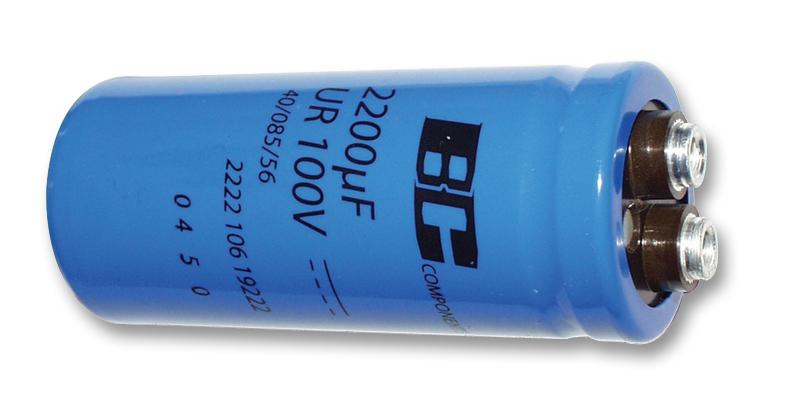

High-reliability aluminum electrolytic capacitors designed for power electronics, industrial, and telecommunications applications. Featuring long useful life of 20,000 hours at 85°C, extremely low ESR and ESL for high ripple current loads, and pressure relief in sealed cylindrical aluminum cases with screw terminals. The capacitors are available in various sizes, marked with capacitance and voltage ratings, suitable for smoothing, filtering, power supply, and energy storage in pulse systems with wide temperature and climatic ranges. Delivered with screws and washers for easy mounting, these RoHS compliant components ensure high performance and durability.
Vishay MAL210616103E3 Aluminum Capacitors Specifications:
- Case sizes from 35 x 60 mm to 90 x 220 mm, with various mounting options including screw terminals with bolt nuts
- Nominal capacitance range: 1000 HF to 330 000 LF, tolerance -10 % to +30 %
- Rated voltage: 25 V to 100 V
- Category temperature range: -40°C to +85°C
- Endurance at 85°C: 8,000 hours, useful life at 85°C: 20,000 hours
- Shelf life at 0 V, 85°C: 500 hours
- Climatic category IEC 60068: 40/085/56
- Maximum surge voltage: 1.15 x Up, leakage current: < 0.006 Cp x Up + 4 UF after 1 min at Up
- Equivalent series inductance: D=35 mm typ. 13 nH, D=50 mm typ. 16 nH, D=65 mm typ. 19 nH, D=76 mm typ. 20 nH, D=90 mm typ. 21 nH
- Ripple current capacity varies with frequency, with a maximum of 50 A at 85°C
- Designed with pressure relief, pressure proof, shock and vibration resistant, RoHS compliant
- Available in standard, high post MS, and high current M6 disc versions with screw and bolt terminal options
- Delivered with screws and washers, with dimensional and packaging details for various sizes
Buy the Vishay MAL210616103E3 Series Aluminum Capacitors Reliable Power Supply Components
Order Vishay aluminum electrolytic capacitors from our online store today. Designed for long life, low ESR, and high ripple current, these components are ideal for power supplies, filtering, and industrial applications. With a wide range of sizes, voltages, and mounting options, our capacitors ensure durability and high performance. Enjoy fast shipping, secure checkout, and expert support to meet your project needs. Upgrade your power and filtering systems with Vishay quality today.
Buy Vishay 106 PED-ST now and experience unmatched reliability and performance in power electronics and industrial systems.
Frequently Asked Questions
Where can I buy Vishay MAL210616103E3?
You can click on the BUY or RFQ button to purchase MAL210616103E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL210616103E3?
You can download the MAL210616103E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL210616103E3?
Vishay
