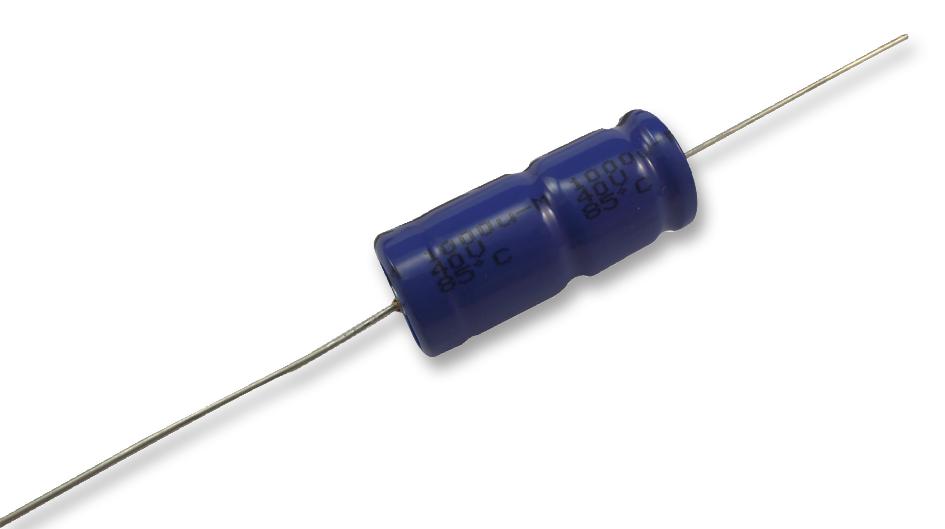

Vishay MAL212027471E3 High Temperature Aluminum Capacitor
These axial aluminum electrolytic capacitors are designed for high temperature, high ripple current applications including automotive, industrial, and telecommunications. They feature a long useful life of up to 8000 hours at 125°C, extended temperature operation up to 150°C, and low ESR levels for high ripple current capability. Compact and reliable, they have axial leads, cylindrical aluminum cases with insulated blue sleeves, and are RoHS compliant. Suitable for smoothing, filtering, buffering, and vibration-resistant use in power supplies and electronic circuits.
Vishay MAL212027471E3 High Temperature Aluminum Capacitor Specifications:
- Nominal case sizes: 10 x 30 mm to 21 x 38 mm
- Rated capacitance: 47 UF to 6800 UF
- Tolerance: +20%
- Rated voltage: 16 V to 100 V
- Temperature range: -40°C to +125°C, up to 150°C operating temperature
- Endurance: 1000 hours at 150°C, 40,000 hours at 85°C
- Useful life: 40,000 hours at 85°C
- Leakage current: ≤ Cr x Un + 40 pA after 1 and 5 minutes at Up
- Low ESR for high ripple current capability
- RoHS compliant; axial leads; cylindrical aluminum case with insulated sleeve
- Mounting: axial in box, taped versions available up to case size 15 mm x 30 mm
- Compliance: AEC-Q200 qualified
- Maximum ripple current varies by capacitance and size, with ripple currents up to several amps
Buy the Vishay Series 120 Aluminum Capacitors: MAL212027471E3
Experience the reliability and high performance of the Vishay MAL212027471E3 aluminum capacitor, ideal for automotive, industrial, and telecommunication applications. With extended temperature range up to 150°C, low ESR, and a lifespan of 40,000 hours at 85°C, this capacitor ensures stability and efficiency in power supply circuits and filtering applications. Its axial design, compact size, and RoHS compliance make installation straightforward. Whether for smoothing, filtering, or buffering, these capacitors guarantee longevity and superior ripple current handling in your electronic systems.
Get Vishay MAL212027471E3 high-temperature aluminum capacitor today—designed for high ripple currents and long-lasting durability in demanding conditions.
Frequently Asked Questions
Where can I buy Vishay MAL212027471E3?
You can click on the BUY or RFQ button to purchase MAL212027471E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL212027471E3?
You can download the MAL212027471E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL212027471E3?
Vishay
