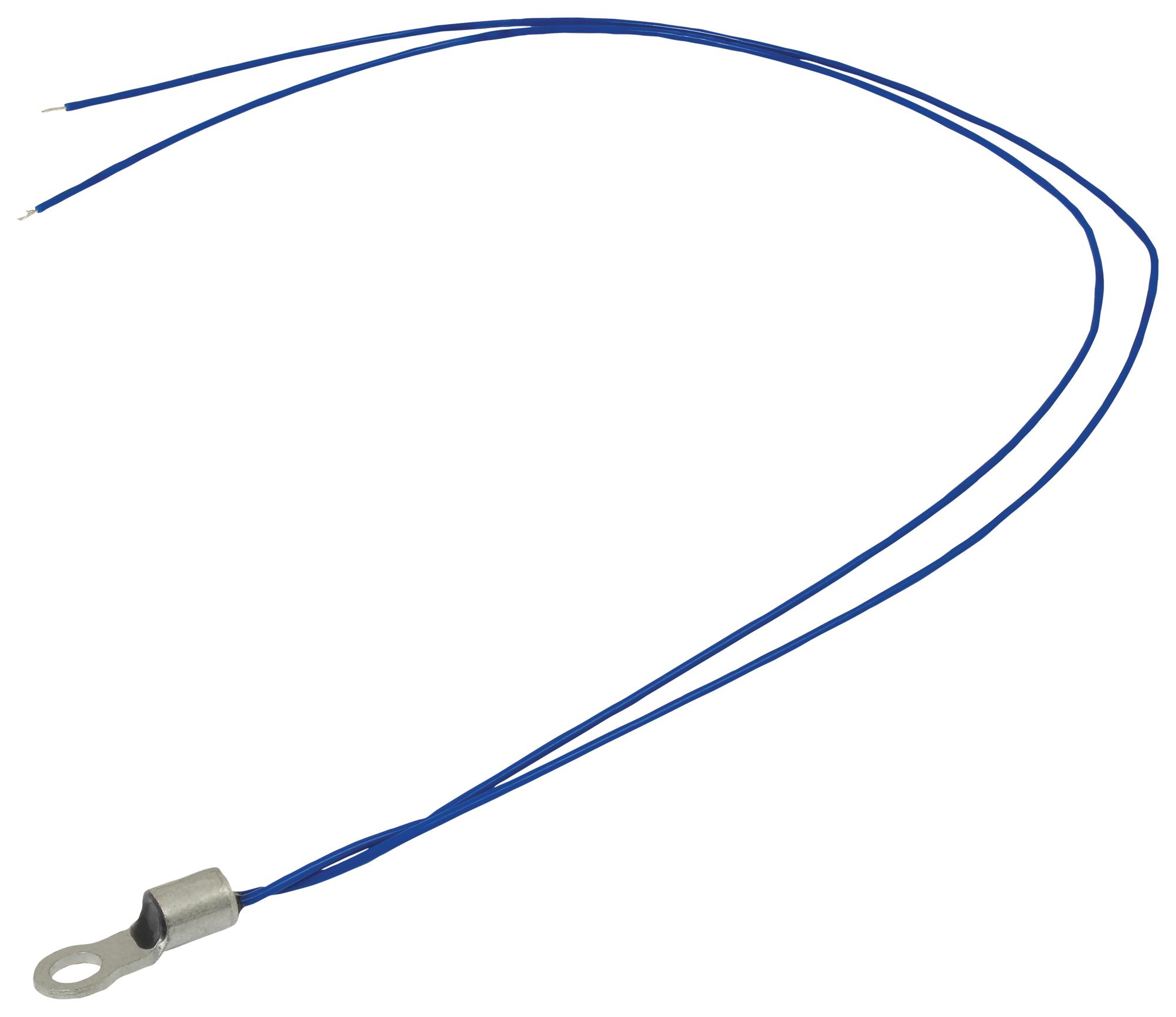

Vishay NTCALUG01T103G501 Lug Mount Thermistor
This is a standard lug mount NTC thermistor sensor designed for surface sensing applications. It features easy mounting with a ring tongue terminal, rugged construction for durability, and ETFE insulated cable. The sensor is automotive AEC-Q200 Grade 1 qualified and UL recognized (file E148885), making it suitable for reliable performance in various environments.
Vishay NTCALUG01T103G501 Lug Mount Thermistor Specifications:
- Resistance value at 25 °C: 10K Ω
- Tolerance on resistance: 1%
- B value at 25 °C: 3984 K
- Temperature range: -40 to +150 °C
- Operating voltage: rated 600 V cable, test voltage 3.4 kV
- Cable insulation: ETFE with epoxy coating
- Lead wire: AWG26, twisted, suitable for soldering or crimping
- Material: Cu ring lug, epoxy coated wiring, ETFE insulation cable
- Dimensions: length 150 mm, 200 mm options available; diameter approximately 3.74 mm
- Mounting: via M3 screw, suitable for screw terminal attachment
- UL recognized, file E148885
- Temperature stability: up to 150°C, suitable for automotive and industrial applications
- RoHS compliant, AEC-Q200 qualified (grade 1)
Buy the Buy Vishay NTCALUG01T103G501 Part Number 103G501 Online
Purchase the Vishay lug mount thermistor sensor online today and ensure reliable surface temperature sensing for automotive, industrial, and consumer electronics applications. The rugged design, ETFE insulated cable, and UL recognition guarantee durability and safety. Compatible with M3 screw mounting, it features a resistance of 10K Ω at 25°C, tolerance of 1%, and B value of 3984 K. Perfect for heat management in demanding environments, this thermistor ensures accurate readings and long-lasting performance. Buy now for precision and durability.
Get Vishay NTCALUG01T103G501 today—built for precise temperature sensing with rugged construction and UL recognition.
