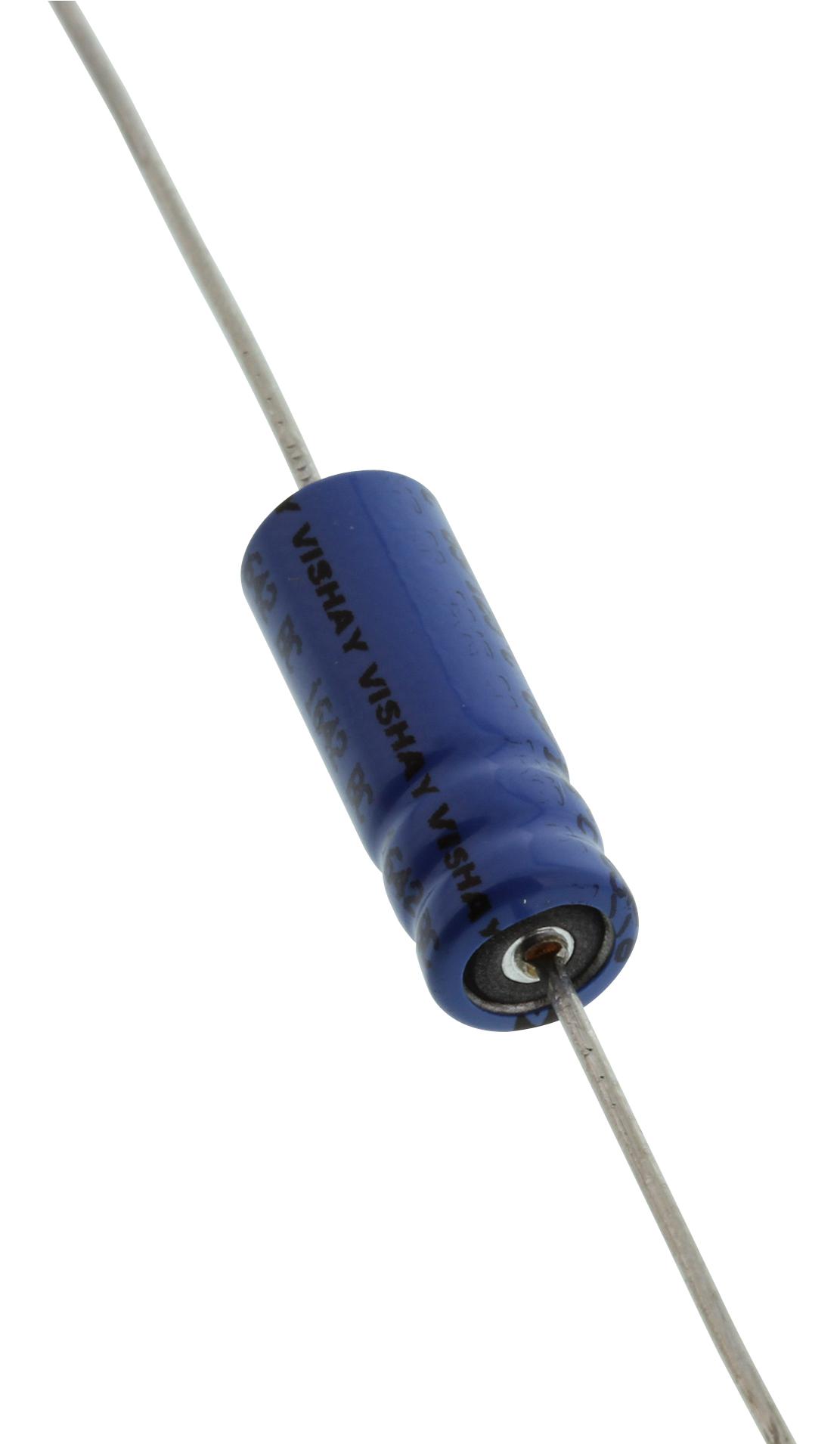

Vishay MAL212614152E3 Aluminum Electrolytic Capacitor
These axial aluminum electrolytic capacitors are designed for high-temperature and high-ripple applications, offering low ESR, extended useful life up to 8000 hours at 125°C, and high ripple current capabilities. Suitable for automotive, industrial, and telecom smoothing, filtering, and buffering, they have polarized, non-solid electrolyte construction with cylindrical aluminum cases and blue insulation sleeves. Tape options facilitate automated insertion. They meet RoHS compliance and are suited for low mounting height, vibration, and shock-resistant power supplies with a long-term reliable performance in harsh environments.
Vishay MAL212614152E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 6.5x18 mm to 21x38 mm
- Rated capacitance: 33 UF to 12,000 UF
- Tolerance: +20%
- Rated voltage: 10 V to 63 V
- Category temperature range: -40°C to +125°C
- Endurance: 2000-3000 hours at 125°C
- Useful life: 4000-8000 hours at 125°C, 40,000 hours at 85°C
- Shelf life: 1000 hours at 125°C
- Material: Aluminum case, insulated with blue sleeve
- Features: RoHS compliant, axial leads, taped for automatic insertion
- Applications: Automotive, industrial, telecom, smoothing, filtering, buffering
- Mounting: Suitable for shock and vibration resistance with taping options
- Electrical data: Capacitance at 100Hz, ESR at 100Hz and 10kHz, ripple current capacity
- Mechanical: Dimensions vary with case size; case length and diameter specified
Buy the Vishay 126 ALX – Reliable Electrolytic Capacitors for Industrial Applications
Purchase the Vishay 126 ALX aluminum electrolytic capacitor online to benefit from its high-temperature tolerance, low ESR, and extended lifespan up to 8000 hours at 125°C. Perfect for automotive, industrial, and telecom smoothing, filtering, and buffering applications, this reliable component features axial leads and a cylindrical aluminum case with insulated blue sleeve for easy integration into various power supply systems. Automatic tape packaging options ensure quick assembly. Trust this RoHS-compliant capacitor for durable performance in harsh environments, enhancing your project’s reliability and efficiency.
Order your Vishay Series126 ALX axial electrolytic capacitor today and ensure long-lasting, high-performance power filtering for your industrial needs.
Frequently Asked Questions
Where can I buy Vishay MAL212614152E3?
You can click on the BUY or RFQ button to purchase MAL212614152E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL212614152E3?
You can download the MAL212614152E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL212614152E3?
Vishay
