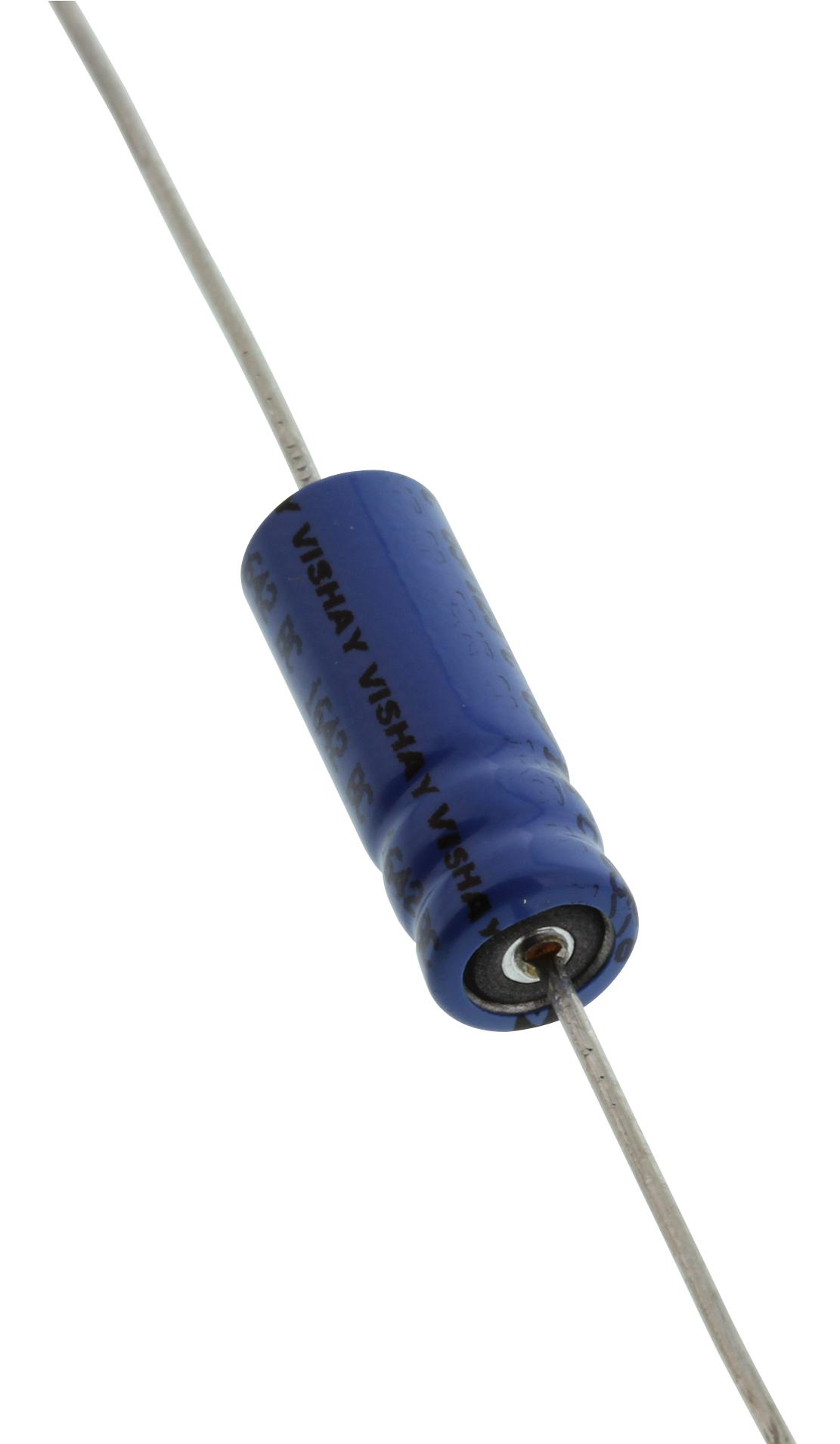

Vishay MAL212614682E3 Aluminum Electrolytic Capacitor
This aluminum electrolytic capacitor features an axial high-temperature design capable of withstanding up to 125°C with high ripple current capability and low ESR levels. It offers an extended useful life of up to 8,000 hours at 125°C, making it suitable for automotive, industrial, and telecommunication applications. Its cylindrical aluminum case, polarized non-solid electrolyte, and blue sleeve insulation ensure durability and vibration resistance. Available in taped versions for automatic insertion, it is ideal for smoothing, filtering, and buffering in power supplies with low mounting height requirements.
Vishay MAL212614682E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 6.5x18 mm to 21x38 mm
- Rated capacitance range: 33 UF to 12,000 UF
- Tolerance on capacitance: +20%
- Rated voltage range: 10V to 63V
- Category temperature range: -40°C to +125°C
- Endurance at 125°C: 2000 to 3000 hours (standard), 3000 to 8000 hours (extended)
- Useful life at 125°C: up to 8,000 hours
- Useful life at 85°C: 40,000 hours (1.4 x In applied)
- Shelf life at 125°C: 1000 hours
- Features include low ESR, high ripple current, RoHS compliance, axial leads, cylindrical aluminum case, insulated with a blue sleeve, available taped for automatic insertion, and vibration resistant design.
Buy the Vishay Series ALX Aluminum Electrolytic Capacitors: MAL212614682E3
Order the Vishay ALX MAL212614682E3 aluminum electrolytic capacitor online today for reliable performance in automotive, industrial, and telecommunication devices. With high ripple current capabilities, extended life up to 8,000 hours at 125°C, and low ESR, this capacitor ensures excellent filtering, smoothing, and buffering in power supply applications. Its axial cylindrical aluminum case with blue insulation sleeve, taped versions for automatic insertion, and vibration-resistant design make it ideal for low mounting height and shock-prone environments. Purchase online now for quick delivery and proven durability.
Get Vishay ALX MAL212614682E3 today—built for high ripple current and long-lasting durability in demanding applications.
Frequently Asked Questions
Where can I buy Vishay MAL212614682E3?
You can click on the BUY or RFQ button to purchase MAL212614682E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL212614682E3?
You can download the MAL212614682E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL212614682E3?
Vishay
