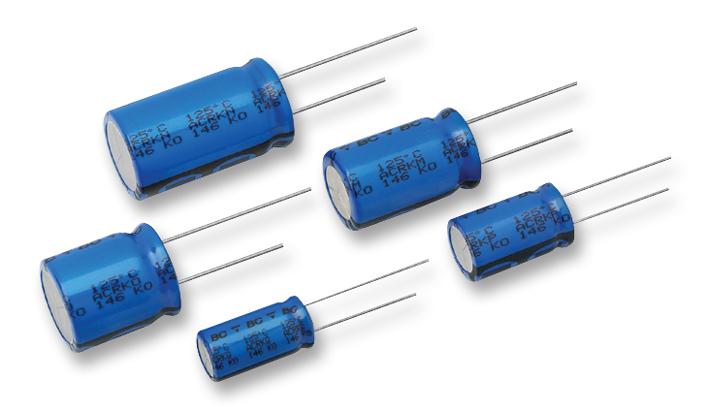

Vishay MAL214635471E3 High-Temperature Aluminum Capacitor
This high-temperature aluminum electrolytic capacitor features low impedance, long useful life—ranging from 2500 to 6000 hours at 125°C—and is suitable for demanding power supply applications. It has radial leads, a cylindrical aluminum case with pressure relief, and is RoHS compliant. Ideal for smoothing, filtering, and buffering in industrial, automotive, telecommunications, and military electronics, this capacitor offers excellent ripple current capability and high reliability, with a rated voltage range from 16V to 63V and capacitance from 68μF to 8200μF. Its robust construction ensures charge and discharge proof operation, making it a dependable choice for high-temperature environments.
Vishay MAL214635471E3 High-Temperature Aluminum Capacitor Specifications:
- Rated capacitance: 68μF to 8200μF
- Rated voltage: 16V to 63V
- Useful life: 2500 to 6000 hours at 125°C
- Case sizes: 10x12mm to 18x40mm
- Form factors: Radial leads, cylindrical aluminum case with pressure relief
- Temperature Range: -40°C to 125°C
- Materials: Aluminum case, blue PET sleeve insulation
- Compliance: RoHS, AEC-Q200 qualified
- Ripple current capability: Excellent at 100 kHz and 125°C
- Leakage current: Max. specified after 2 minutes at Ur
- Impedance: Max. impedance at 100 kHz
- Dissipation factor: Max. tan δ at 100 Hz
Buy the Vishay Series High-Temperature Aluminum Capacitor 146 RTI: Part Number MAL214635471E3
Order Vishay 146 RTI aluminum electrolytic capacitors online—designed for demanding industrial, automotive, telecommunications, and military applications. Featuring long life up to 6000 hours at 125°C, low impedance, and high ripple current capability, these capacitors deliver outstanding reliability and performance in high-temperature environments. Their robust construction with cylindrical aluminum case, pressure relief, and radial leads ensures safe, charge, and discharge proof operation. Perfect for filtering, smoothing, and buffering in power supplies, order now to enhance your electronic system's durability and efficiency with trusted Vishay quality.
Get Vishay 146 RTI today—built for high-temperature reliability and long-lasting durability in power electronic systems.
Frequently Asked Questions
Where can I buy Vishay MAL214635471E3?
You can click on the BUY or RFQ button to purchase MAL214635471E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL214635471E3?
You can download the MAL214635471E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL214635471E3?
Vishay
