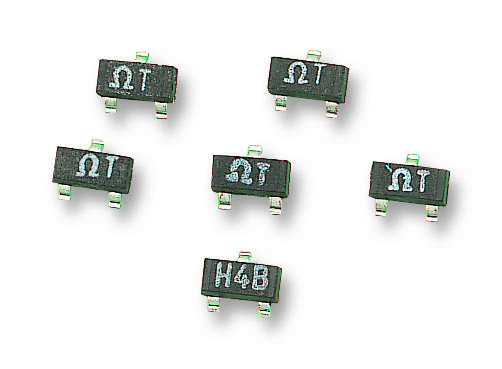

Vishay MPMT1003AT5 Divider Resistor
Vishay Dale Thin Film MPM series divider provides high precision surface mount resistors with ratio tolerances as tight as 0.01%, tracking of +2 ppm/°C, and excellent stability. Packaged in standard SOT-23 format, these resistors are ideal for applications requiring matched resistor pairs and stable divider networks. They feature low temperature coefficient of resistance, long-term stability, and a resistance range from 250 Ω to 100 kΩ. Suitable for high-reliability, precision electronics, these thin film resistors comply with RoHS standards and offer a compact, robust design for demanding industrial use.
Vishay MPMT1003AT5 Divider Resistor Specifications:
- Resistance Range: 250 Ω to 100 kΩ
- Tolerance: ±0.01%
- TCR Tracking: 2 ppm/°C (typical)
- Absolute TCR: ±25 ppm/°C
- Power Rating: 100 mW at +70°C
- Package: Standard JEDEC SOT-23 (SC-59)
- Absolute Ratio Stability: AR = 0.015% over 2000 hours at +70°C
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Material: Passivated nichrome resistive element with epoxy mold
- RoHS compliant, lead-free options available
Buy the VISHAY MPM1003 U+2013 Reliable Divider Resistors for Industrial Applications
Purchase the Vishay MPM1003 series thin film divider resistors online today and enhance your electronic designs with ultra-precise, stable, and reliable resistor networks. These high-performance surface mount components feature a tight 0.01% ratio tolerance, +2 ppm/°C tracking, and exceptional long-term stability, making them ideal for industrial, automotive, and high-reliability applications. Available in standard SOT-23 packages, they are easy to incorporate into your PCB design. Secure fast delivery and ensure your project’s success with trusted Vishay quality.
Order your Vishay Series MPM1003 divider network today and give your electronics the dependable accuracy they deserve.
Frequently Asked Questions
Where can I buy Vishay MPMT1003AT5?
You can click on the BUY or RFQ button to purchase MPMT1003AT5 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MPMT1003AT5?
You can download the MPMT1003AT5 datasheet or visit the Vishay website for support.
Who is the manufacturer of MPMT1003AT5?
Vishay
