Vishay MAL214638101E3 Aluminum Capacitors
Vishay RTI series aluminum electrolytic capacitors are high temperature, low impedance, radial units with cylindrical aluminum cases and pressure relief features. Designed for power supplies, smoothing, filtering, and buffering in industrial, automotive, telecommunications, and military applications, these capacitors offer long useful life spanning 2500 to 6000 hours at 125°C. They are RoHS compliant, AEC-Q200 qualified, and feature very low ESR, high ripple current capacity, and polarization with non-solid electrolyte. They vary in nominal sizes from 9 mm x 12 mm to 18 mm x 40 mm with ratings from 68 μF to 8200 μF and voltage ranges from 16 V to 63 V, ensuring high stability and reliability in demanding environments.
Vishay MAL214638101E3 Aluminum Capacitors Specifications:
- Nominal case sizes: 9 mm x 12 mm to 18 mm x 40 mm
- Rated capacitance: 68 μF to 8200 μF
- Tolerance on rated capacitance: +20%
- Rated voltage: 16 V to 63 V
- Useful life at 125°C: 2500 to 6000 hours
- Useful life at 40°C: up to 400,000 hours
- Shelf life at 125°C, 0 V: 7000 hours
- Case material: Cylindrical aluminum with pressure relief
- Lead type: Radial leads, cylindrical aluminum case, blue PET insulated sleeve
- Temperature range: -55°C to +125°C
- RoHS compliant, AEC-Q200 qualified
- Impedance at 100 kHz: Max. impedance varies with capacitance
- Equivalent series resistance (ESR): Very low, varies with frequency and temperature
- Ripple current capacity: Very high ripple capability at 125°C
- Markings: Nominal size, capacitance, voltage, date code, factory code
- Compliance: IEC 60384-4, EN130300
- Application: Power supplies, filtering, buffering in industrial, automotive, telecommunications, and military
- Pressure relief and long lifespan make these capacitors suitable for high-temperature environments.

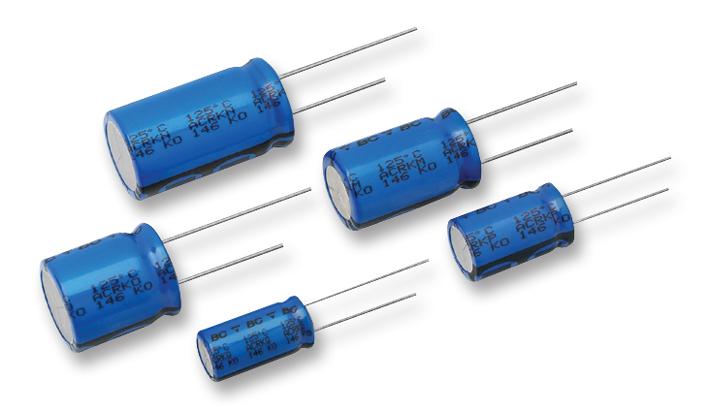

Buy the Vishay 146 RTI – Reliable Aluminum Capacitors for Industrial Applications
Purchase Vishay 146 RTI aluminum electrolytic capacitors online today for reliable performance across industrial, automotive, telecommunications, and military power systems. Designed to operate at high temperatures up to 125°C, these capacitors feature long useful life, low ESR, and high ripple current capacity, ensuring durability and stability. Their radial, cylindrical aluminum case with pressure relief and blue PET insulation assures safety and robustness. Whether smoothing, filtering, or buffering, these versatile capacitors meet demanding specifications, providing optimal electrical performance with minimum maintenance.
Get Vishay 146 RTI aluminum capacitors today—built for high temperature stability and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Vishay MAL214638101E3?
You can click on the BUY or RFQ button to purchase MAL214638101E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL214638101E3?
You can download the MAL214638101E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL214638101E3?
Vishay
