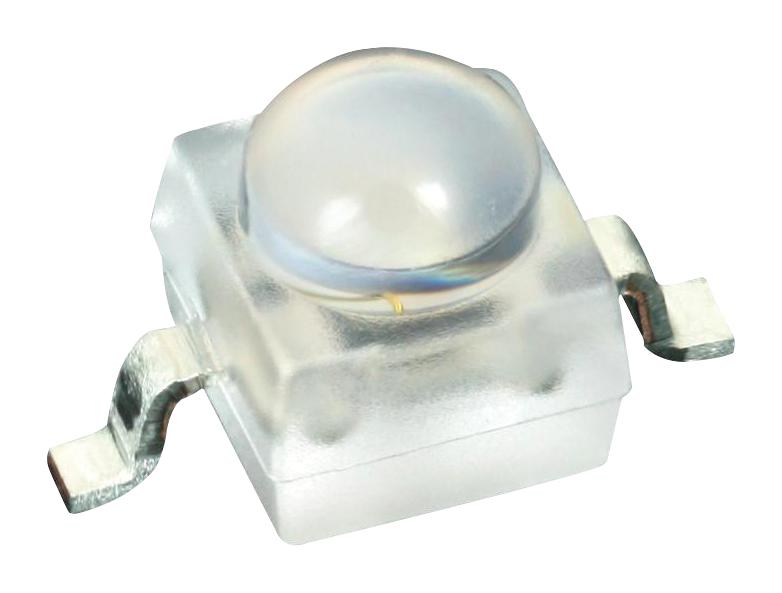

Vishay VLDR1235G08 Dome Lens SMD LED
The product is a high-brightness dome lens SMD LED series designed for surface mounting with a compact 2.3 x 2.3 x 2.8 mm package. Utilizes advanced AllnGaP technology, offering high luminous flux and intensity suitable for traffic signals, signs, lighting, and indicator applications. Features include a viewing angle of +11°, compatibility with reflow soldering, and RoHS compliance. The LEDs are available in various colors like red, amber, yellow, and super red, with forward currents up to 70 mA, making them ideal for demanding indoor and outdoor illumination and backlighting.
Vishay VLDR1235G08 Dome Lens SMD LED Specifications:
- Package Type: SMD dome lens
- Dimensions: 2.3 x 2.3 x 2.8 mm
- Color Options: Red, amber, yellow, super red
- Luminous Intensity: up to 22,400 mcd in super red
- Luminous Flux: ranges from 10,000 to 35,500 m lumen depending on color
- Viewing Angle: +11°
- Forward Voltage: 1.9 V to 27 V (dependent on color and current)
- DC Forward Current: Up to 70 mA
- Reverse Voltage: 5 V (short-term use)
- Operating Temperature Range: -40°C to +100°C
- Power Dissipation: 200 mW
- Junction Temperature: 125°C
- Infrared and spectral characteristics vary by color, with dominant wavelengths from 611 nm to 637 nm
- RoHS and halogen-free, suitable for reflow soldering
- ESD Withstand Voltage: up to 2 kV
Buy the Vishay Series Power Dome Lens SMD LED: VLDR1235G08
Purchase the Vishay Dome Lens SMD LED series online today and enjoy high brightness, compact design, and reliable performance for traffic, signage, or lighting applications. These advanced LEDs feature high luminous flux specifications, excellent color options including red, amber, yellow, and super red, and compatibility with reflow soldering techniques. Perfect for indicator lights, backlighting, and interior or exterior illumination, this product offers robust performance with a wide operating temperature range, low reverse current, and RoHS compliance. Order now for fast, secure delivery and elevate your lighting solutions with Vishay’s proven quality and innovation.
Buy Vishay VLDR1235G08 now and experience unmatched reliability and performance with high luminous flux and advanced AllnGaP technology.
Frequently Asked Questions
Where can I buy Vishay VLDR1235G08?
You can click on the BUY or RFQ button to purchase VLDR1235G08 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLDR1235G08?
You can download the VLDR1235G08 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLDR1235G08?
Vishay
