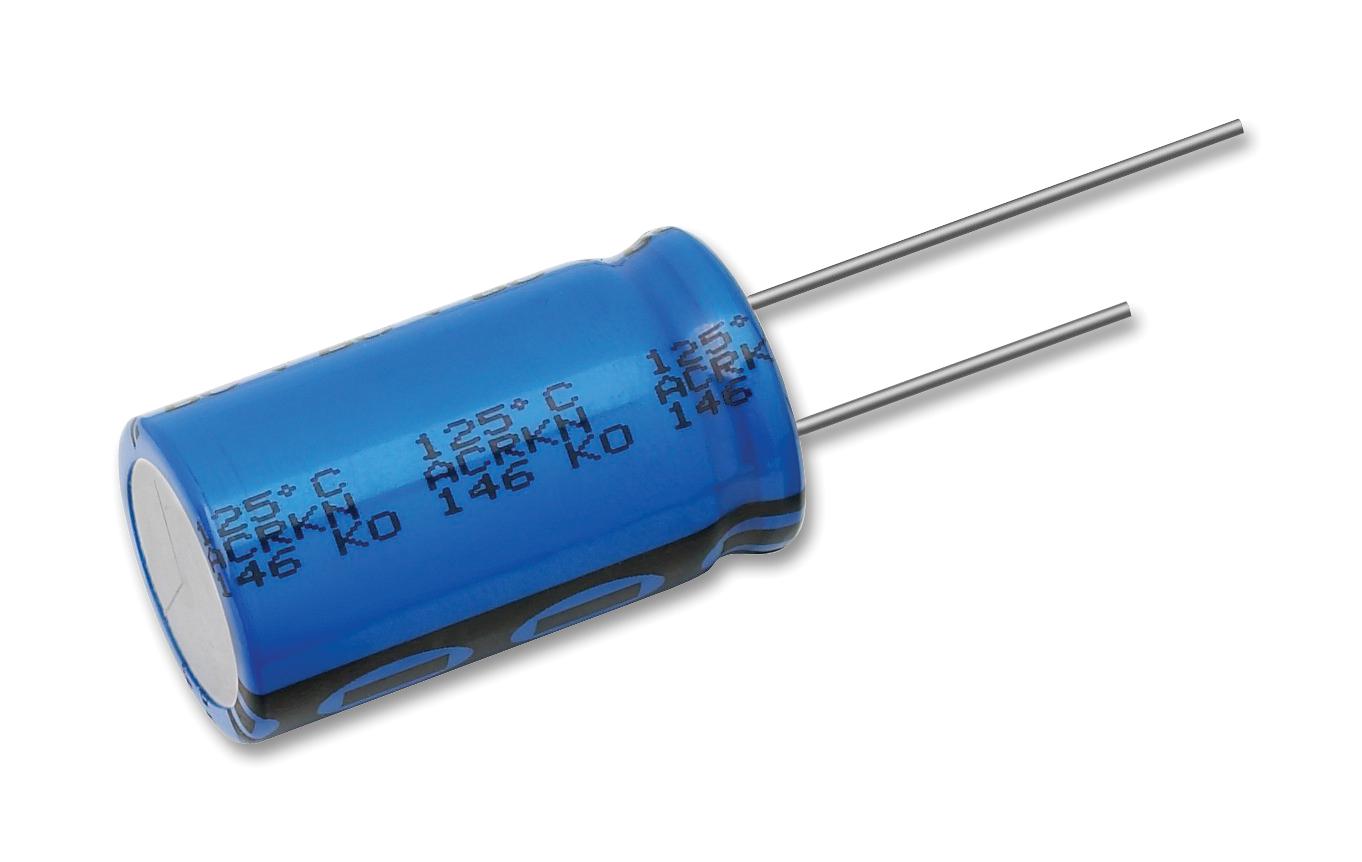

Vishay MAL214651821E3 Industrial Aluminum Capacitor
High-temperature aluminum electrolytic capacitor designed for industrial power supplies, filtering, and buffering applications. Features include long useful life of 2500 to 6000 hours at 125°C, very low ESR, high reliability, and RoHS compliance. The capacitor has radial leads, cylindrical aluminum case with pressure relief, and a blue PET sleeve insulation. Suitable for demanding environments such as automotive, telecommunications, and military applications, it offers excellent ripple current capability and charge/discharge resilience, ensuring stable performance over extended periods.
Vishay MAL214651821E3 Industrial Aluminum Capacitor Specifications:
- Nominal case sizes: 10 x 12 mm to 18 x 35 mm
- Rated capacitance: 68 UF to 6800 UF
- Tolerance: ±20%
- Rated voltage: 16 V to 63 V
- Useful life at 125°C: 2500 h to 6000 h
- Material: Aluminum casing with blue PET insulation
- Temperature Range: -55°C to +125°C
- Pressure Relief: Yes
- Ripple Current Capability: Excellent
- Certifications: RoHS, AEC-Q200 qualified
- Application: Power supplies, smoothing, filtering, buffering in industrial, automotive, telecommunications, and military sectors
Buy the Vishay 146 RTI – Reliable Aluminum Capacitor for Industrial Applications
Secure your industrial power solutions by purchasing the Vishay 146 RTI aluminum electrolytic capacitor online today. Designed for demanding environments, it offers long life of up to 6000 hours at 125°C, low ESR, and high ripple current capability. Perfect for power supplies, filtering, and buffering in automotive, telecommunication, and military applications, ensuring stable operation and durability. Easy to order, reliable, and certified RoHS compliant, this capacitor supports robust and efficient electronic systems for extended service life.
Order your Vishay Series146 RTI aluminum electrolytic capacitor today and ensure your power supply designs are reliable with extended lifespan and low impedance performance.
