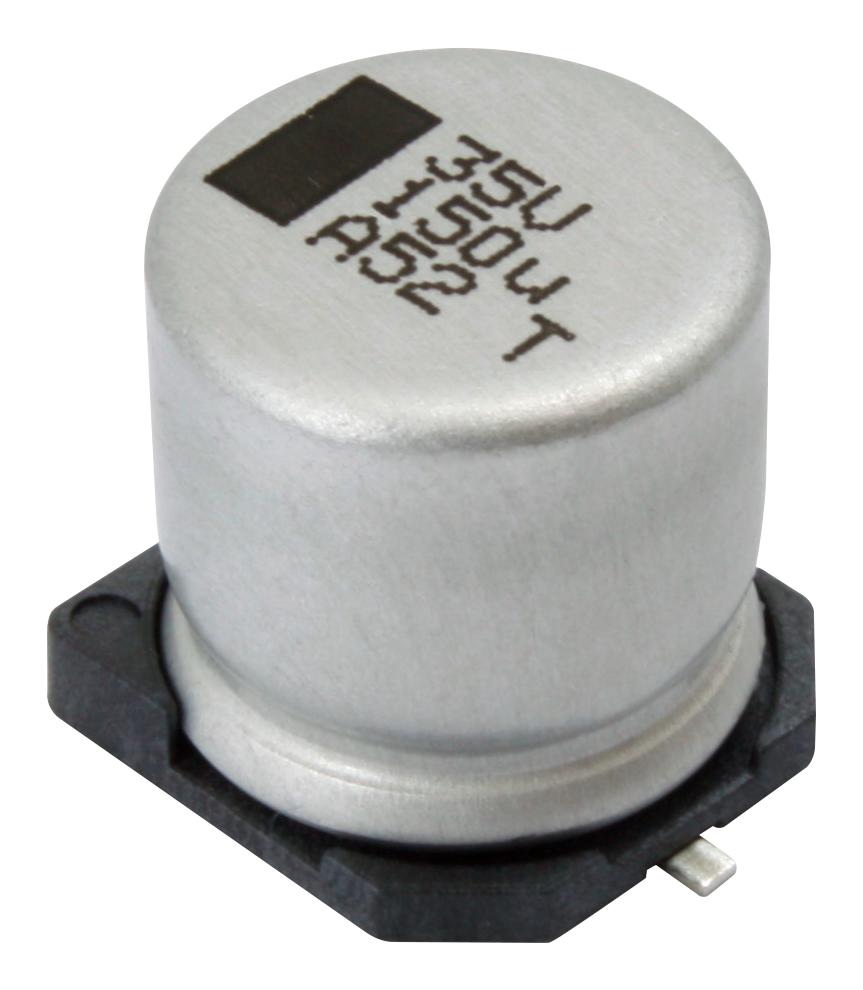

Vishay MAL214699006E3 Aluminum Electrolytic Capacitor
The aluminum electrolytic capacitor is designed for high-temperature applications with low impedance and extended useful life up to 6000 hours at 125°C. Suitable for SMD reflow soldering, it features a polarized, self-healing, non-solid electrolyte construction with RoHS compliance. Ideal for industrial, automotive, telecom, and filtering applications, it offers low ESR, high reliability, and is qualified for automotive standards. The capacitor is available in various nominal case sizes, with a maximum operating temperature of 125°C, and delivers excellent electrical performance with high ripple current handling and long life expectancy.
Vishay MAL214699006E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 8x8x10 mm to 18x18x21 mm
- Rated capacitance: 10 pF to 4700 pF
- Tolerance on Capacitance: +20%
- Rated voltage range: 16 V to 100 V
- Category temperature range: -55°C to +125°C
- Endurance at 125°C: 1000 h to 5000 h
- Useful life at 125°C: 1500 h to 6000 h
- Useful life at 40°C: 1.8 × Ip applied, 150,000 h to 400,000 h
- RoHS compliant, lead (Pb)-free, reflow solderable
- Low ESR, high reliability, vibration proof
- Maximum temperature during reflow: according to JEDEC® J-STD-020
- Mechanical dimensions and mounting pads specified for various sizes
- Leakage current after 2 min at rated voltage: < 0.01 × Capacitance
- Surge voltage: < 1.15 × rated voltage
- Maximum impedance and dissipation factor characterized at 100 kHz and ambient temperature
Buy the VISHAY MAL214699006E3 – Reliable Aluminum Electrolytic Capacitor for Industrial Applications
Secure your Vishay MAL214699006E3 aluminum electrolytic capacitor online today and benefit from high temperature operation, low impedance, and extended life. Perfect for demanding industrial, automotive, and telecom applications, this capacitor offers excellent electrical performance, low ESR, and RoHS compliance, ensuring your projects are both reliable and durable. Available in various sizes with quick reflow soldering compatibility, buy now to improve your circuit's stability, filtering, and smoothing capabilities with dependable quality.
Order your Vishay Series MAL214699006E3 aluminum electrolytic capacitor today and ensure high-performance, long-lasting reliability in your industrial projects.
