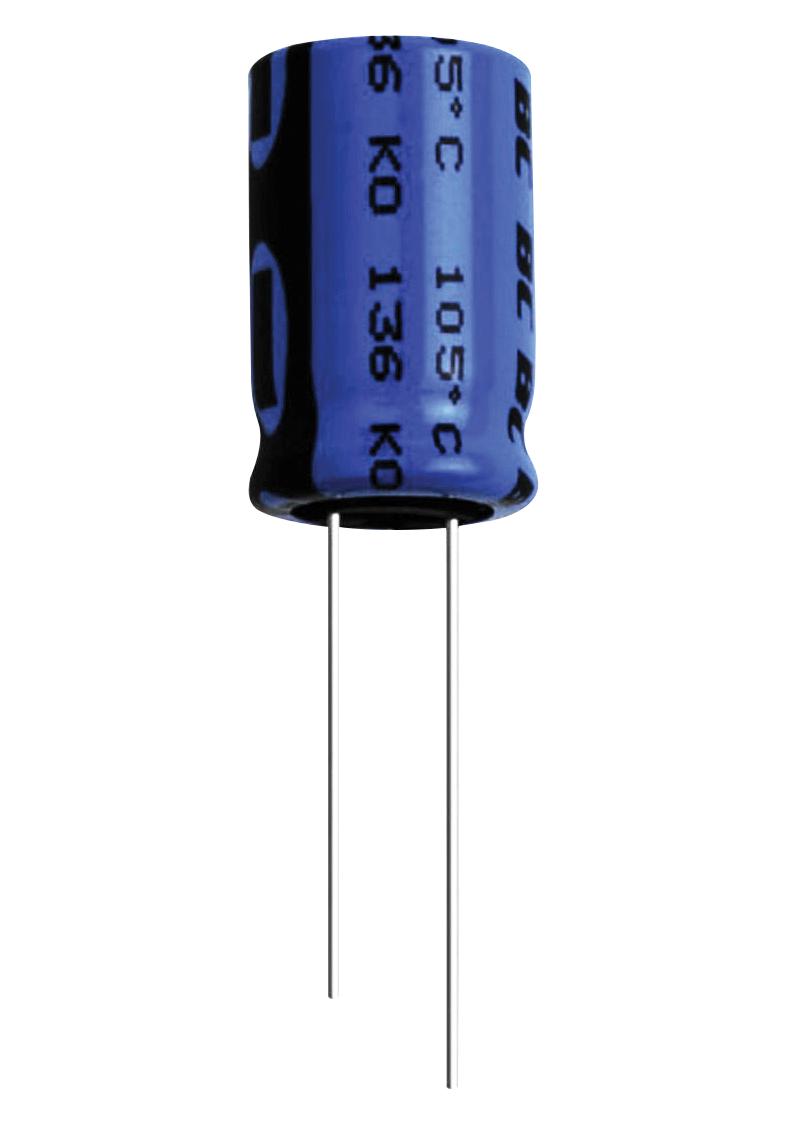

Vishay MAL214831222E3 Aluminum Capacitor
Vishay BCcomponents offers high-quality polarized aluminum electrolytic capacitors with ultra-high CV in small sizes, suitable for industrial, telecommunications, automotive, and audio-video applications. They feature long useful life—up to 3000 hours at 105°C—and are designed with radial leads, cylindrical aluminum cases with pressure relief, and blue insulation sleeves. These capacitors are charge and discharge proof, with operation from 6.3V to 100V, and can endure temperatures from -40°C to +105°C, making them ideal for smoothing, filtering, buffering in SMPS, and timing circuits.
Vishay MAL214831222E3 Aluminum Capacitor Specifications:
- Nominal case sizes (O D x L in mm): 10x12 to 18x35
- Rated capacitance range: 47 uF to 22,000 UF
- Rated voltage range: 6.3 V to 100 V
- Temperature range: -40°C to +105°C
- Endurance at 105°C: 1000 to 3000 hours depending on size
- Useful life at 40°C: up to 200,000 hours for larger sizes
- RoHS compliant, RoHS and Halogen-Free policies certified
- Polarized with cylindrical aluminum case, pressure relief, blue sleeve insulation
- Charge/discharge proof, leak current after 2 min: max 0.01 Cx Un
- Max leakage current at Up: ≤ 0.002 Cx Un after 5 min
- Case sizes: 10x12, 10x16, 12.5x20, 16x25, 18x35 mm
- Ripple current: varies with size, e.g., 2200 UF at 50 V : 750 mA
- Maximum surge voltage: 1.15 × rated voltage
- Long useful life: up to 2000 hours at 105°C for smaller sizes and 3000 hours for larger sizes
- Impedance at 100 kHz: typically 0.085 to 0.170 Ohms depending on size
- Breakdown voltage: > 1V reverse voltage, surge voltage up to 1.15×Un
- Manufactured with radial leads, cylindrical aluminum case, cylindrical, pressure relief with blue insulation, various size options
Buy the Vishay MAL214831222E3 – Reliable Aluminum Capacitors for Industrial Applications
Purchase the Vishay aluminum capacitor MAL214831222E3 online today to ensure your projects benefit from long-lasting reliability, high capacitance, and excellent performance across a wide temperature range. Perfect for industrial, automotive, and telecom applications, these capacitors feature radial leads, pressure relief, and are RoHS compliant. Whether for smoothing, filtering, buffering, or timing circuits, buying online allows quick access to reliable, high-quality components. Ensure your equipment's efficiency with proven, durable aluminum electrolytic capacitors—order now for fast delivery and expert support.
Get Vishay MAL214831222E3 today—built for precision, long-lasting durability, and ideal for smoothing, filtering, and buffering in your projects.
Frequently Asked Questions
Where can I buy Vishay MAL214831222E3?
You can click on the BUY or RFQ button to purchase MAL214831222E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL214831222E3?
You can download the MAL214831222E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL214831222E3?
Vishay
