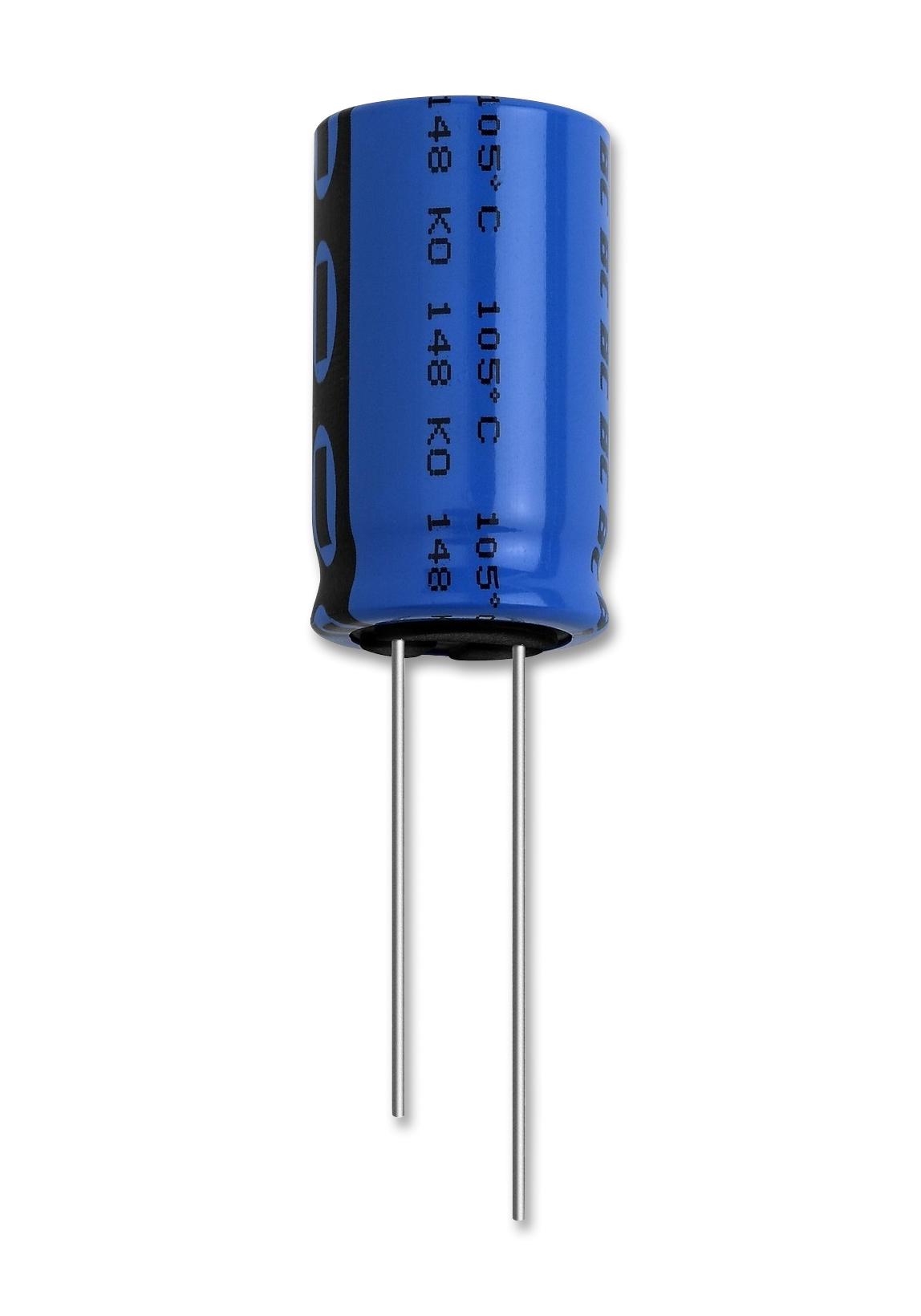

Vishay MAL215050472E3 Aluminum Electrolytic Capacitor
The product is a long-life aluminum electrolytic capacitor designed for power supply filtering and smoothing applications. It features high stability, very low impedance, and high ripple current capacity, suitable for industrial, automotive, and telecommunications systems. The capacitor offers extended endurance at elevated temperatures, with a useful life up to 10,000 hours at 105°C. Its radial cylindrical case and blue sleeve insulator ensure reliable installation with polarized features for consistent performance. Certified compliant with RoHS and AEC-Q200 standards, it guarantees durability and high reliability in demanding environments.
Vishay MAL215050472E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 8x12 mm to 18x40 mm
- Rated capacitance range: 22 μF to 8200 μF
- Tolerance on capacitance: ±20%
- Rated voltage range: 10 V to 100 V
- Category temperature range: -55°C to +105°C
- Endurance test duration at 105°C: 3000 h to 6000 h
- Useful life at 105°C: 4000 h to 10,000 h
- Useful life at 40°C: 200,000 h to 500,000 h
- Shelf life at 0 V, 105°C: 1000 h
- Climatic category IEC 60068: 55/105/56
- Dimensions: Case size varies with length, typical case diameter 8-18 mm, length ranges from 12 to 40 mm
- Material: Aluminum casing with pressure relief, blue insulator sleeve
- Electrical characteristics: Very low ESR, ripple current capacity, high stability, and long useful life
Buy the Vishay Series 150 Aluminum Electrolytic Capacitor: MAL215050472E3
Purchase the Vishay Series 150 aluminum electrolytic capacitor MAL215050472E3 online today and experience reliable filtering and smoothing performance. Its extended lifespan of up to 10,000 hours at 105°C, low impedance, and high ripple current capability make it ideal for industrial, automotive, and telecommunications power supplies. Certified RoHS and AEC-Q200, this capacitor provides high stability and durability in demanding environments. Order now to ensure your projects benefit from proven quality, easy installation, and long-term dependability with quick delivery options available online.
Order your Vishay Series 150 aluminum electrolytic capacitor, MAL215050472E3 today and ensure long-lasting power supply performance in your projects.
Frequently Asked Questions
Where can I buy Vishay MAL215050472E3?
You can click on the BUY or RFQ button to purchase MAL215050472E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL215050472E3?
You can download the MAL215050472E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL215050472E3?
Vishay
