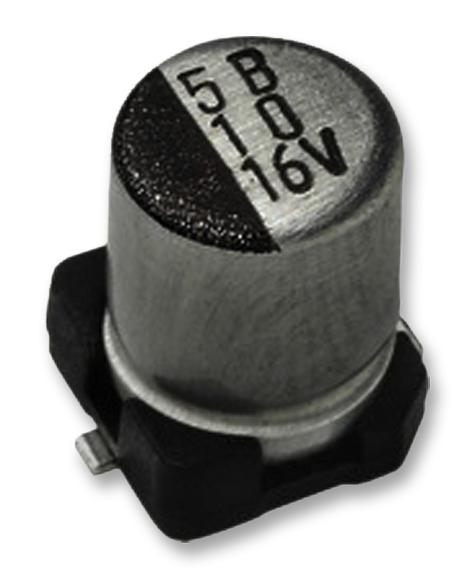

Vishay MAL215370229E3 Aluminum Electrolytic Capacitor
Vishay BCcomponents 153 CRV series aluminum electrolytic capacitors are polarized, SMD design with high capacitance and voltage ratings, suitable for decoupling, filtering, and buffering in telecommunications, industrial, automotive, and portable equipment. They feature self-healing electrolyte, RoHS compliance, long useful life of up to 3000 hours at 105°C, and are supplied on reels for automatic surface-mount assembly. Their compact size and reliable performance make them ideal for space-constrained electronic circuits requiring high CV per volume.
Vishay MAL215370229E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 4.0x4.0x5.3 mm, 8.0x8.0x10 mm, 10x10x14 mm
- Rated capacitance: 0.47 pF to 1000 µF
- Rated voltage: 6.3V, 10V, 16V, 25V, 35V
- Tolerance on capacitance: ±20%
- Endurance life: 2000 hours to 3000 hours at 105°C depending on case size
- Useful life at 40°C with 1.3×Ip: up to 300,000 hours
- Shelf life at 0V, 105°C: 1000 hours
- Maximum temperature: -55°C to +105°C
- RoHS compliant, Self-healing electrolyte, Reflow solderable
- Lead (Pb)-free mounting with minimum board space, Vertical reflow process compatible
- Electrical parameters: ESR at 100 kHz, leakage current after 2 minutes at rated voltage
- Soldering method: Reflow with specified profile, temperature max 250°C
- Taping and reel packaging dimensions depend on case size, e.g., 8 mm x 8 mm on reel with 380 pcs per reel
- Maximum ripple current and surge voltage conform to IEC 60384-18 standards.
Buy the Vishay Series 153 CRV Aluminum Capacitor: MAL215370229E3
Order the Vishay 153 CRV aluminum electrolytic capacitor online today for reliable performance in power supply, filtering, and decoupling applications. These surface-mount capacitors offer high capacitance, voltage ratings, long life, RoHS compliance, and space-saving vertical design. Perfect for automotive, industrial, telecommunications, and portable devices, they ensure stable operation and durability under high temperature conditions. Purchase online now to secure a trusted component for your electronics project or manufacturing process with fast delivery and comprehensive support.
Get Vishay 153 CRV aluminum electrolytic capacitor today—built for long-lasting durability in demanding electronic applications.
