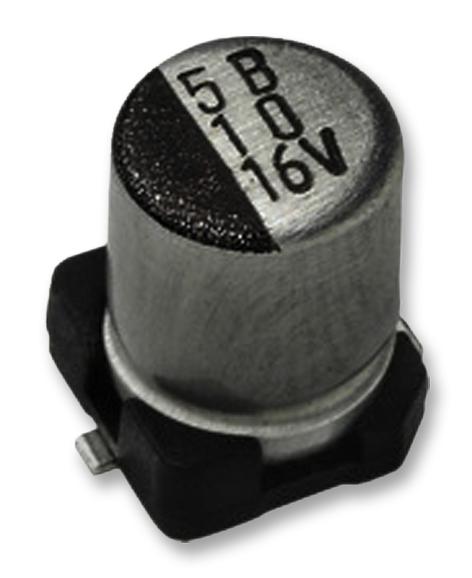

Vishay MAL215371101E3 Electrolytic Capacitor
This product is a high-quality polarized electrolytic aluminum capacitor designed for surface mount technology. It features a long useful life of up to 3000 hours at 105°C, RoHS compliance, and high CV per volume, making it ideal for decoupling, filtering, and buffering in telecommunications, industrial, automotive, and portable equipment. Its robust construction, safe charge/discharge characteristics, and minimal footprint support reliable performance in demanding applications, with detailed electrical and mechanical specifications ensuring compatibility with automated manufacturing processes.
Vishay MAL215371101E3 Electrolytic Capacitor Specifications:
- Nominal case sizes: 40x40x53 mm, 80x80x10 mm, 100x100x14 mm
- Rated capacitance: 0.47 pF to 1000 μF
- Rated voltage: 6.3 V, 16 V, 25 V, 35 V, 50 V, 100 V
- Lifetime: 2000 h to 3000 h at 105°C, up to 300,000 hours at 40°C
- Endurance test: 1000 h to 2000 h at 105°C, tan 8<2x or 3x typical
- Operating temperature range: -55°C to +105°C
- RoHS and REACH compliant, halogen-free options available
- Taped on reel packaging for automated placement, tape widths vary from 8 mm to 16 mm
- Soldering: Automatic reflow with specified profile, maximum 2 runs with 30 min pause
- Dimensions and mass vary by case size; example: 8.0x8.0x10 mm mass approx 0.50g
- Leakage current: ≤0.01 x Cp x Up after 2 min at rated voltage
- ESR: Typical values at 100 kHz, temperature-dependent
- Ripple current: Up to 63 mA at 105°C, with life multiplier based on ripple load
- Certifications: Compliant with IEC 60384-18, standard tests passed
Buy the Vishay 153 CRV – Reliable Electrolytic Capacitors for Industrial Applications
Purchase the Vishay 153 CRV aluminum electrolytic capacitor online today to ensure high quality and reliable performance in your electronic applications. These surface-mount capacitors offer a long lifespan of up to 3000 hours at 105°C, high CV per volume, and RoHS compliance, making them ideal for decoupling, filtering, and buffering in various industrial and automotive equipment. With detailed electrical specifications, proven durability, and automated packaging, they are perfect for modern manufacturing needs. Secure your supply now for seamless integration into your designs.
Order your Vishay series 153 CRV electrolytic capacitor today and give your industrial projects the dependable long-lasting performance they deserve.
Frequently Asked Questions
Where can I buy Vishay MAL215371101E3?
You can click on the BUY or RFQ button to purchase MAL215371101E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL215371101E3?
You can download the MAL215371101E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL215371101E3?
Vishay
