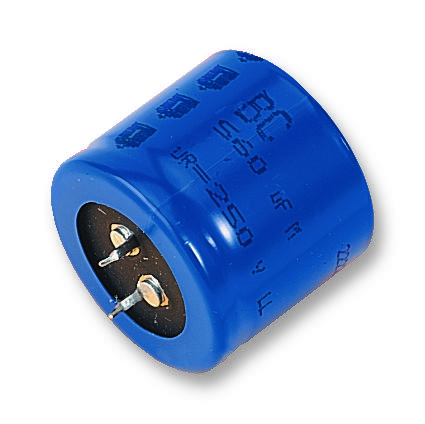

Vishay MAL215946221E3 Aluminum Electrolytic Capacitors
Vishay PUL-SI aluminum electrolytic capacitors are designed for industrial applications, featuring ultra long life, high ripple current capacity, and available up to 500V. These polarized capacitors utilize non-solid electrolyte, with large cylindrical aluminum cases insulated with a blue sleeve, ensuring high reliability and low ESR for smoothing, filtering, energy storage, and inverter uses. With useful life spanning 3000 to 5000 hours at 105°C, they meet stringent electrical and climatic standards, suitable for solar inverters and power supplies. Marked for easy polarity identification, these capacitors are RoHS compliant and ideal for demanding industrial environments.
Vishay MAL215946221E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case size: 22 x 25 mm to 35 x 60 mm
- Rated capacitance: 56 UF to 1800 UF (E6/E12 series)
- Tolerance on capacitance: ±20%
- Rated voltage: Up up to 450 V
- Temperature range: -25°C to +105°C
- Endurance: 2000 hours at 105°C
- Useful life: 3000 to 5000 hours at 105°C
- Ripple current: Up to 500 V, low ESR, high ripple capability
- Construction: Polarized aluminum electrolytic with blue insulated sleeve
- Marking: Includes capacitance, voltage, date code, polarity, manufacturer code
- RoHS compliant and high reliability for industrial use
- Climatic category: IEC 60068 25/105/56
- Mounting: Two and three terminal snap-in designs
- Physical dimensions: Vary by case size, with specific mounting and terminal arrangements
- Mechanical: Cylindrical aluminum case, insulated with blue sleeve, marked for polarity
- Electrical data: ESR at 100Hz approximately 0.95 x ESR at 120Hz, inductance max 25 nH
Buy the VISHAY MAL215946221E3 – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Order VISHAY MAL215946221E3 aluminum electrolytic capacitors online today. Designed for industrial systems, they offer long life, high ripple current, and up to 500V. These high-reliability, RoHS-compliant capacitors are ideal for power supplies, inverters, and filtering applications, ensuring optimal performance in harsh environments. Easy to mount with marked polarity, they meet strict electrical and climatic standards, providing durability and stability. Purchase now for industrial-grade energy storage and filtering needs with confidence and efficiency.
Get VISHAY MAL215946221E3 today—built for precision, long-lasting durability, and high ripple current capabilities for demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay MAL215946221E3?
You can click on the BUY or RFQ button to purchase MAL215946221E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL215946221E3?
You can download the MAL215946221E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL215946221E3?
Vishay
