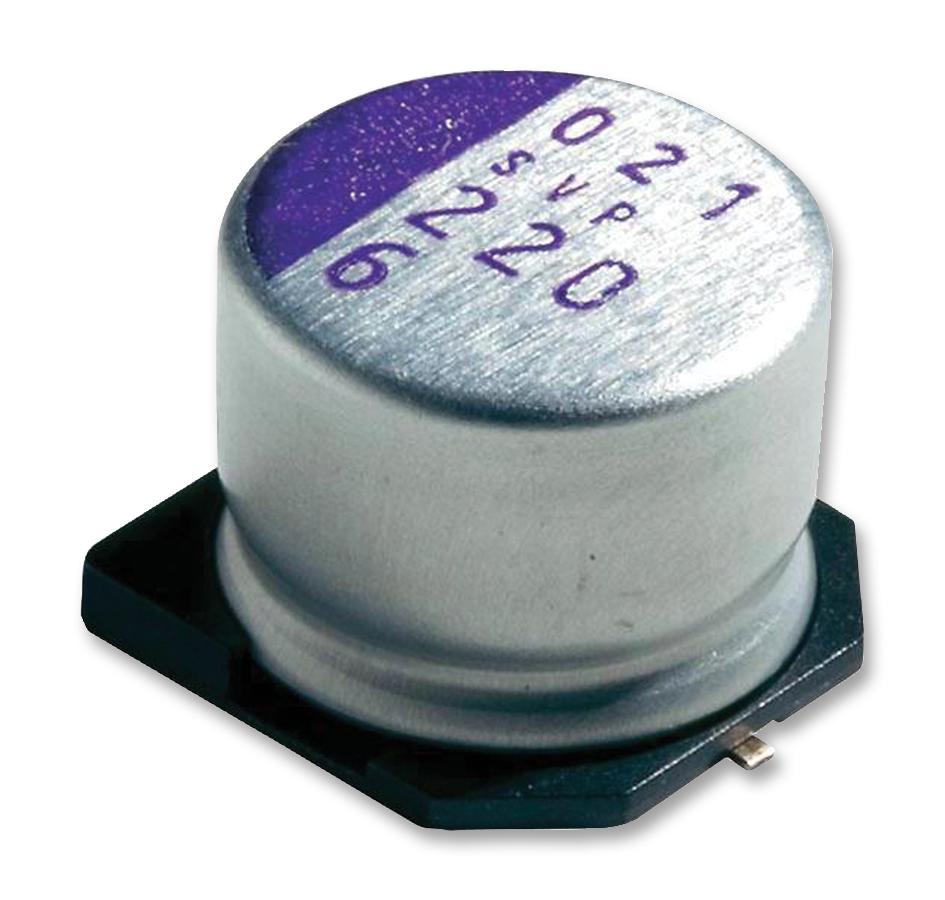

Vishay MAL218197303E3 Conductive Polymer Capacitors
The Vishay Conductive Polymer Aluminum Capacitors in the 181 CPL series are SMD, low impedance devices designed for high-temperature reflow soldering, with a long useful life of up to 5000 hours at 105°C. They feature very low ESR and high ripple current capacity, suitable for industrial, telecommunications, and IT applications. Available in various nominal sizes and voltage ratings from 4.0 V to 35 V, these capacitors support robust performance in high-temperature environments, with a focus on reliability, RoHS compliance, and lead-free reflowable construction.
Vishay MAL218197303E3 Conductive Polymer Capacitors Specifications:
- Nominal case sizes: 6.6 x 6.6 x 5.9 mm to 10.4 x 10.4 x 12.6 mm
- Rated capacitance: 18 UF to 820 UF with ±20% tolerance
- Rated voltage range: 4.0 V to 35 V
- Operating temperature: -55°C to +105°C
- Endurance: 5000 hours at 105°C
- Shelf life: 1000 hours at 0 V, 105°C
- Reflow solderable, RoHS compliant, lead-free
- Available in blister tape on reels, with packaging sizes up to 1000 units per reel
- Designed for high-temperature reflow and automatic placement
- Maximum load conditions include surge voltage < 1.15 times Up and reverse voltage Urevs < 1 V for short periods
Buy the Buy Vishay 181 CPL Series Capacitors Part Number MAL218197303E3 Online
Purchase Vishay 181 CPL series conductive polymer aluminum capacitors online today to benefit from high-performance, low impedance, and long lifespan components. These surface-mount devices are ideal for demanding high-temperature reflow soldering processes, offering very low ESR and excellent ripple current handling. With a wide range of capacitance and voltage options, they cater to industrial, telecommunications, and professional use. Reliable and RoHS compliant, order now for fast delivery and ensure your electronic designs meet the highest standards of durability and efficiency.
Order your Vishay Series181 CPL capacitors MAL218197303E3 today and ensure high reliability for your industrial, telecom, or professional projects.
Frequently Asked Questions
Where can I buy Vishay MAL218197303E3?
You can click on the BUY or RFQ button to purchase MAL218197303E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL218197303E3?
You can download the MAL218197303E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL218197303E3?
Vishay
