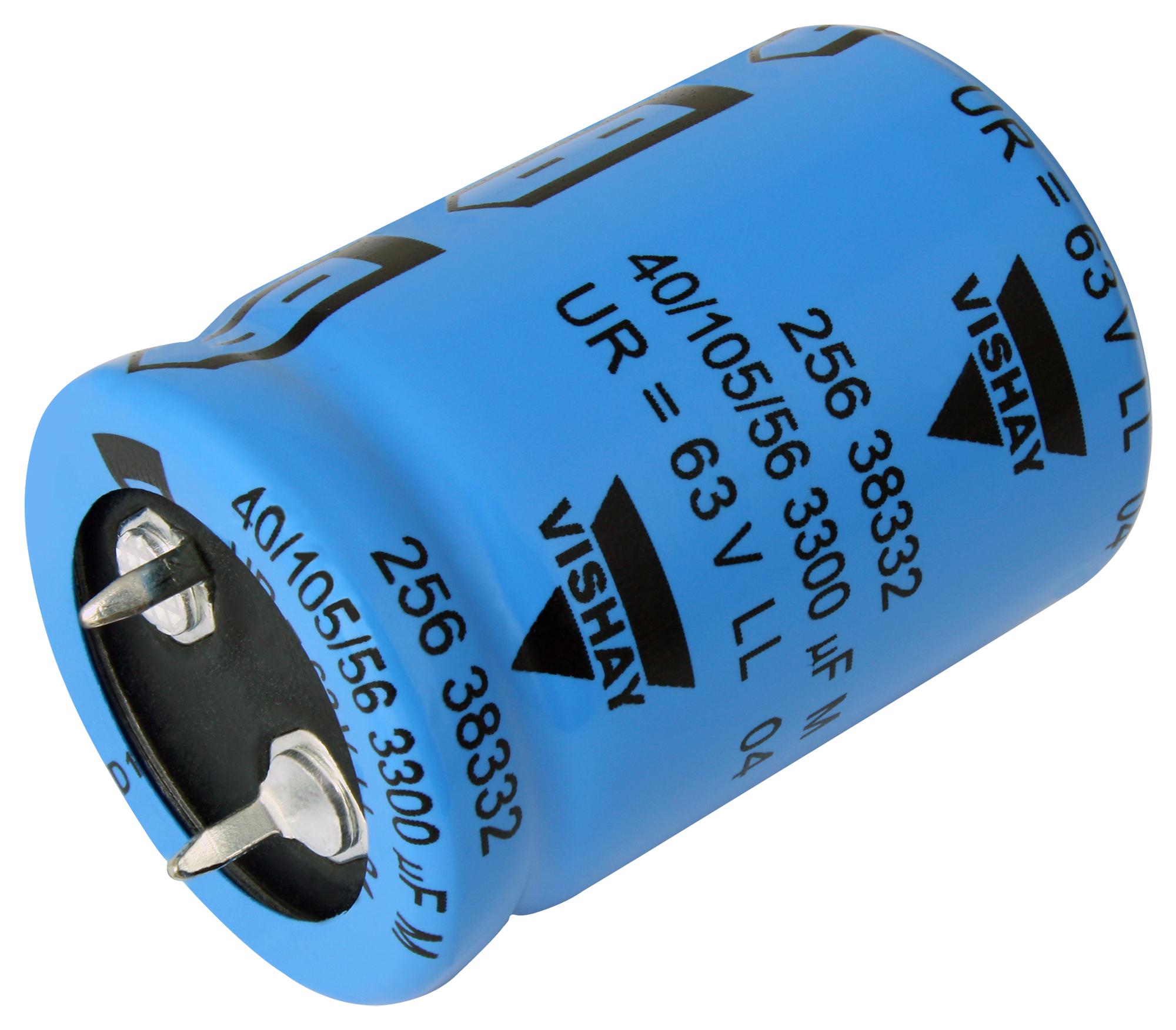

Vishay MAL219356681E3 Aluminum Electrolytic Capacitors
Vishay's Aluminum Electrolytic Capacitors are high-reliability, polarized components designed for high ripple current and long endurance at elevated temperatures. Available in compact snap-in forms, they support applications such as solar inverters, motor controls, power supplies, and industrial cooling systems. These capacitors feature RoHS compliance, tested endurance of 2000 hours at 105°C, useful life of up to 5000 hours, and an extensive voltage range from 400 V to 500 V. Marked with voltage, capacitance, manufacturing details, and polarity, they provide dependable performance for demanding electronic environments.
Vishay MAL219356681E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case size: 22x25 mm to 35x60 mm
- Rated capacitance: 47 UF to 820 UF
- Tolerance: +20%
- Rated voltage: 400 V to 500 V
- Category temperature range: -40°C to +105°C
- Endurance test duration: 2000 hours at 105°C
- Useful life: 5000 hours at 105°C
- Shelf life: 1000 hours at 0 V, 105°C
- Climatic category: IEC 60068
- Ripple current: Up to 105°C, 100 Hz at rated values
- Leakage current: <0.01 Ca x Un after 5 minutes at Ur
- Maximum ESR at 100 Hz: vary with case size
- Maximum impedance at 10 kHz: vary with case size
- Inductance: Typ. 19 nH; Max. 25 nH
- Surge voltage: > 400 V versions, Us= 1.1 Up
- Polarity: Marked with '-' sign, negative terminal with two pins both connected
Buy the Buy Vishay Aluminum Electrolytic Capacitors Part Number MAL219356681E3 Online
Purchase the Vishay MAL219356681E3 aluminum electrolytic capacitor online today to upgrade your power electronics. With high ripple current capacity, outstanding endurance of 2000 hours at 105°C, and a useful life of 5000 hours, these capacitors ensure dependable performance in solar inverters, motor controls, and industrial power supplies. Their compact snap-in design simplifies installation. Supported by RoHS compliance and precise markings, these components offer consistent quality for demanding applications. Secure your inventory now with fast delivery and reliable performance.
Order your Vishay MAL219356681E3 Aluminum Electrolytic Capacitors today and ensure your power systems are reliable with excellent ripple current handling and long life.
