Vishay MAL229956222E3 Aluminum Electrolytic Capacitors
These are high ripple current aluminum electrolytic capacitors designed for long life and stable performance in power supplies and renewable energy applications. Featuring a cylindrical aluminum case with insulated blue sleeve, pressure relief on the side, and verified for operation up to 105°C, they provide dependable service with a useful life of 5000 hours at 105°C. Their high ripple current capability and robust construction make them ideal for switched mode power supplies and energy conversion systems, ensuring reliable energy storage, stable operation, and durability in demanding environments.
Vishay MAL229956222E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal size: 35 x 50 mm to 45 x 100 mm
- Capacitance range: 470 uF to 2200 uF
- Rated voltage: 400 V to 450 V
- Temperature range: -40°C to +105°C
- Useful life: 5000 hours at 105°C
- Initial ESR at 100 Hz: 0.427 - 1.764 ohms depending on size
- Leakage current: less than 0.002 Cp x Un + 4 pA after 5 min at rated voltage
- Dimensions include maximum diameter and length, with mounting hole specifications

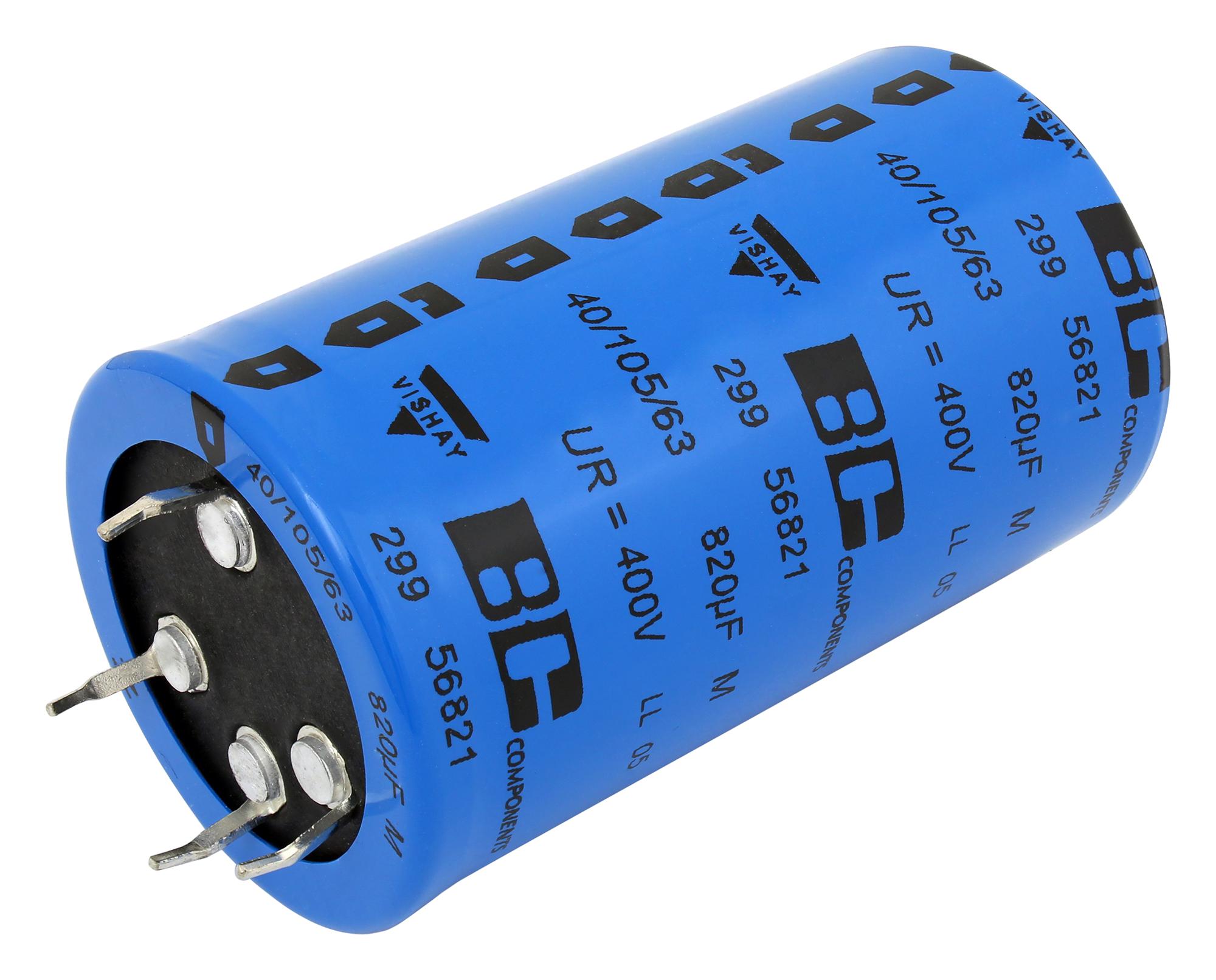

- Case: Cylindrical aluminum with blue insulation sleeve, pressure relief on side
- Maximum ripple current: specified at 105°C, frequencies up to 10,000 Hz
- Endurance tested for 2000 hours, useful life tested to 5000 hours at 105°C
- Impedance at 10 kHz: varies with model, typically between 70-160 milliohms
- Certifications: RoHS compliant, IEC 60384-4/EN 130300 compliant
- Climatic category: IEC 60068 40/105/56
Buy the Buy Vishay Aluminum Electrolytic Capacitors Part Number MAL229956222E3 Online
Discover the durability and high ripple current capacity of these aluminum electrolytic capacitors. Designed for long-term use up to 105°C, they feature a robust cylindrical aluminum case with a blue sleeve, pressure relief, and verified ESR performance. Ideal for power supplies and renewable energy converters, these capacitors offer stable operation, a useful life of 5000 hours, and reliable energy storage. Purchase online to ensure your systems operate efficiently and dependably in demanding environments.
Buy Vishay MAL229956222E3 now and experience unmatched reliability and long-lasting performance in power supply and energy conversion systems.
Frequently Asked Questions
Where can I buy Vishay MAL229956222E3?
You can click on the BUY or RFQ button to purchase MAL229956222E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL229956222E3?
You can download the MAL229956222E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL229956222E3?
Vishay
