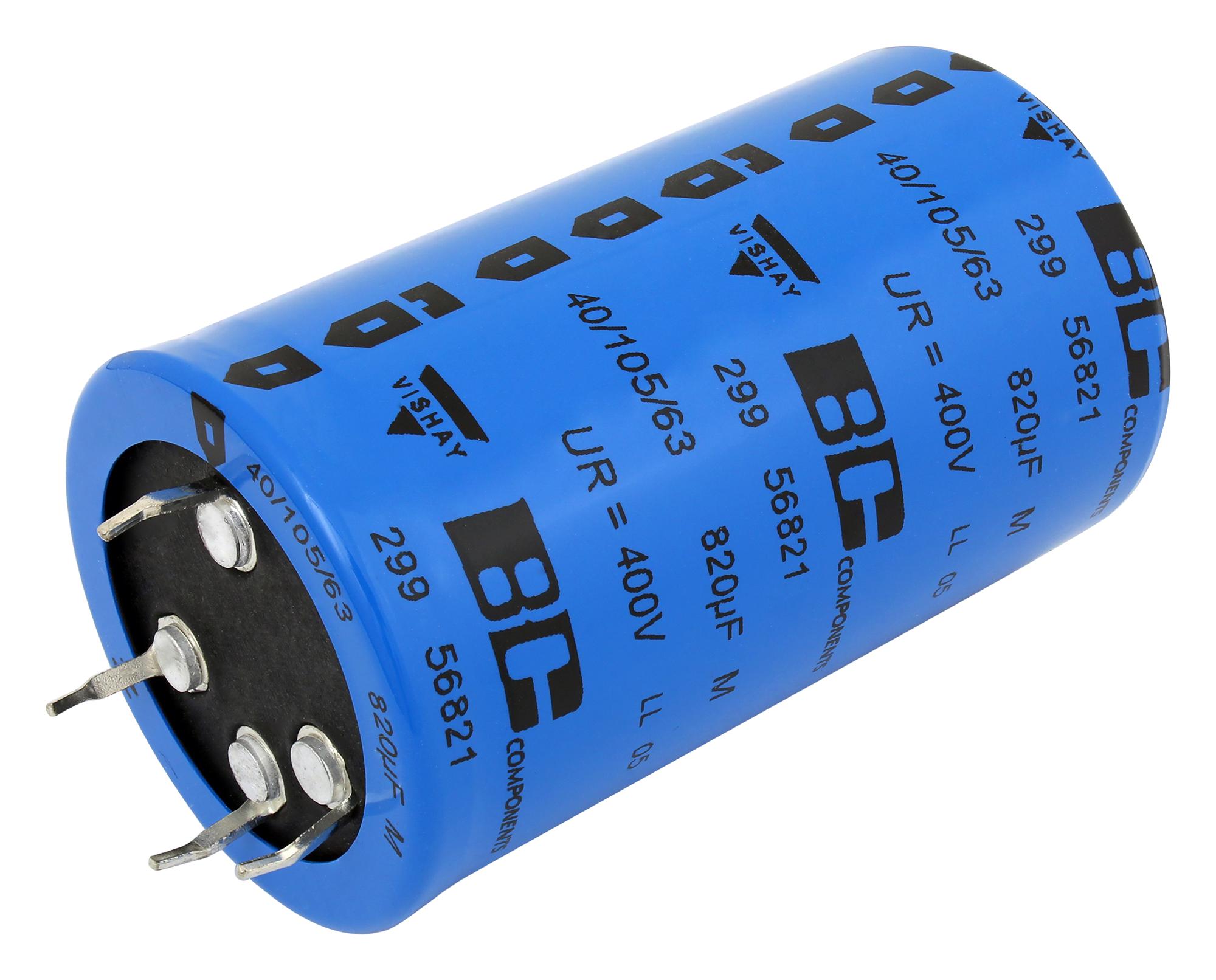

Vishay MAL229967821E3 Aluminum Electrolytic Capacitors
These high-performance aluminum electrolytic capacitors are designed for power supply applications, renewable energy converters, and pulse systems. Featuring a long useful life of 5000 hours at 105°C, they offer high ripple current capability and stable mounting with polarized design. Encased in cylindrical aluminum cases with insulated blue sleeves, they ensure reliable operation over a wide temperature range from -40°C to +105°C. Ideal for switched mode power supplies, these capacitors provide excellent durability, pressure relief, and are RoHS compliant, making them suitable for demanding industrial and energy applications.
Vishay MAL229967821E3 Aluminum Electrolytic Capacitors Specifications:
- Capacitance range: 470 uF to 2200 uF
- Rated voltage: 400 V to 450 V
- Temperature range: -40°C to +105°C
- Useful life: 5000 hours at 105°C
- Endurance: 2000 hours at 105°C
- Dimensions vary by model, typical length approximately 50 mm to 100 mm
- Pressure relief on the side of aluminum case
- Leakage current: <0.002 Cp x Un + 4 yA after 5 minutes at Ur
- Ripple current: high capability, based on application
- Pressure relief, RoHS compliant, cylindrical aluminum case with insulated sleeve
- Climatic category: IEC 60068 40/105/56
- Mounting: 4-terminal snap-in, stable and keyed polarity
- Impedance: Max ESR at 100 Hz, typical ESR and Z measured at 10 kHz
Buy the Vishay Series PHL-4TSI Aluminum Electrolytic Capacitors: MAL229967821E3
Purchase Vishay PHL-4TSI aluminum electrolytic capacitors online now and benefit from durable construction, high ripple current capacity, extended useful life, and stable operation in demanding power supply and energy applications. These high-quality capacitors feature a long life of 5000 hours at 105°C, pressure relief, RoHS compliance, and are ideal for renewable energy converters and pulse systems. Order today for reliable performance, easy installation with four-terminal snap-in design, and consistent quality for industrial and energy solutions.
Get Vishay PHL-4TSI aluminum electrolytic capacitors today—built for high ripple current and long-lasting durability in power conversion systems.
Frequently Asked Questions
Where can I buy Vishay MAL229967821E3?
You can click on the BUY or RFQ button to purchase MAL229967821E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL229967821E3?
You can download the MAL229967821E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL229967821E3?
Vishay
