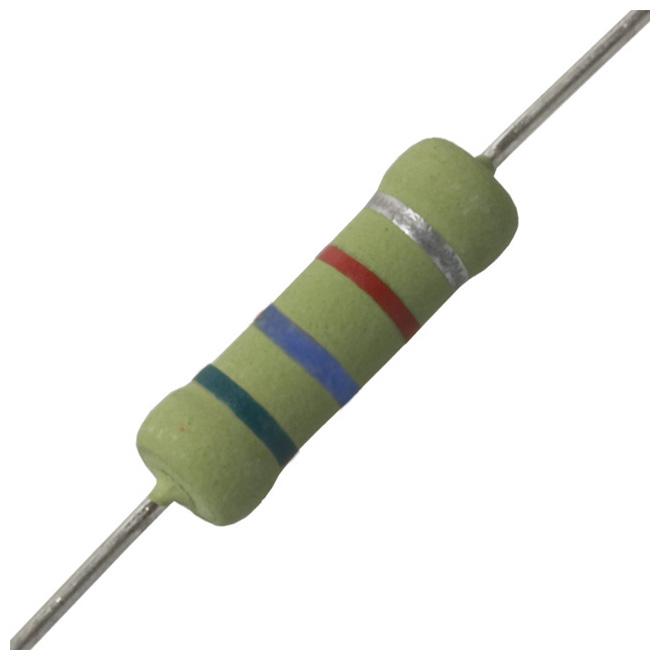

Vishay MBA02040C4752FRP00 Leaded Thin Film Resistor
Professional thin film leaded resistors designed for high stability and reliability in industrial, automotive, telecommunication, and medical applications. These resistors feature a stable resistance value with tight tolerance, excellent temperature coefficient, and high power dissipation capabilities. Manufactured with homogeneous metal alloy film on a ceramic body, they are flame retardant, RoHS compliant, halogen-free, and suitable for automated insertion and wave soldering. Approved for IECQ-CECC and various environmental standards, they serve in demanding professional electronic circuits requiring consistent performance and durability.
Vishay MBA02040C4752FRP00 Leaded Thin Film Resistor Specifications:
- Resistance Range: 0.22 Q to 22 MQ
- Resistance Tolerance: ±5 %, ±1 %, ±0.5 %
- Temperature Coefficient: +50 ppm/K, +25 ppm/K
- Rated Dissipation: 0.4W to 1.0W depending on model
- Operating Voltage: 200V to 500V
- Operating Temperature Range: -55°C to 155°C
- Peak Film Temperature: 155°C
- Insulation Voltage: 300V to 800V (for 1 minute)
- Damage Rate: <0.1 x 10^-4/h to <0.1 x 10^-5/h
- Body Dimensions: 0204: 29.0mm x 1.6mm; 0207: 28.0mm x 2.5mm; 0414: 31.0mm x 4.2mm
- Material: Ceramic body with metal alloy film, leaded with plated steel caps
- Features: RoHS and halogen-free, CECC and IECQ-CECC approved, suitable for automation and wave soldering
Buy the Vishay Series MBA Thin Film Resistors 0204: Reliable Precision Component
Purchase Vishay MBA/SMA 0204 resistors online to ensure precise, reliable performance for industrial, automotive, and telecommunication projects. These resistors are designed for demanding applications where stability and durability are crucial. Featuring tight resistance tolerances, excellent temperature coefficient, and high power dissipation, they meet international standards including CECC and IECQ. Easily integrated into automated assembly lines, these halogen-free, RoHS-compliant resistors offer long service life, consistent electrical characteristics, and are ideal for high-reliability industrial and medical electronic systems. Buy now for quality you can trust and ease of supply chain management.
Get Vishay MBA/SMA 0204 today—built for precision and long-lasting durability in professional electronic circuits.
Frequently Asked Questions
Where can I buy Vishay MBA02040C4752FRP00?
You can click on the BUY or RFQ button to purchase MBA02040C4752FRP00 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MBA02040C4752FRP00?
You can download the MBA02040C4752FRP00 datasheet or visit the Vishay website for support.
Who is the manufacturer of MBA02040C4752FRP00?
Vishay
